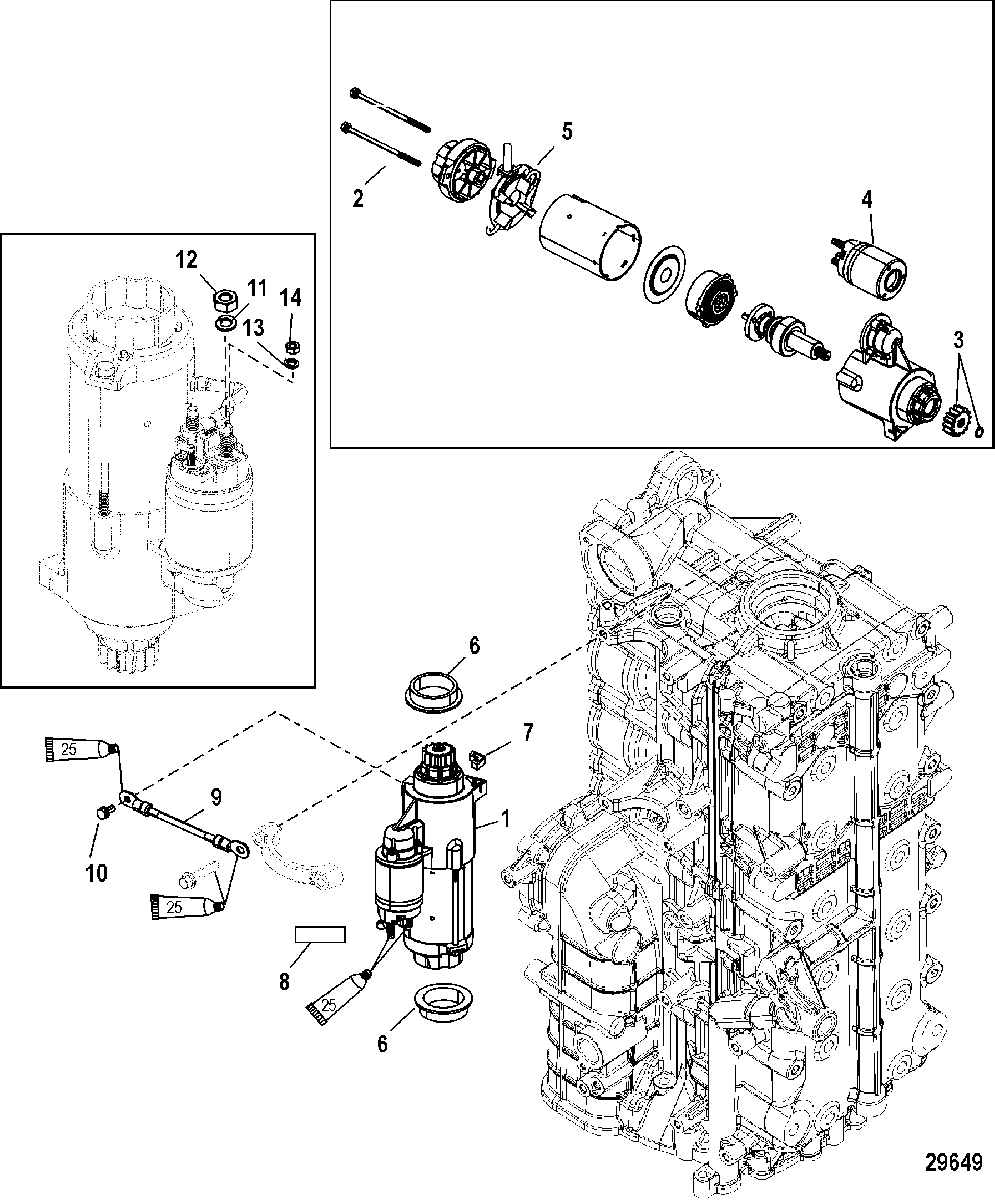

Starter Motor для Mercury - 300 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Starter Motor AssemblyNOT SOLD SEPARATE, Starter Motor Assembly
-
150-892339T01 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2NSS NOT SOLD SEPARATE, ScrewsNOT SOLD SEPARATE, Screws
-
343-880805A1 GEAR KITGEAR KIT
-
4809463A1 SOLENOID KITSOLENOID KIT
-
58M0065258 BRUSH SETBRUSH SET
-
623-8M0034918 COLLARCOLLAR
-
78M0043276 STOPSTOP
-
8NSS NOT SOLD SEPARATE, Decal-Waring-High VoltageNOT SOLD SEPARATE, Decal-Waring-High Voltage
-
984-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1010-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1211-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1313-400255 LOCKWASHER, (M5)LOCKWASHER, (M5)
-
1411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
