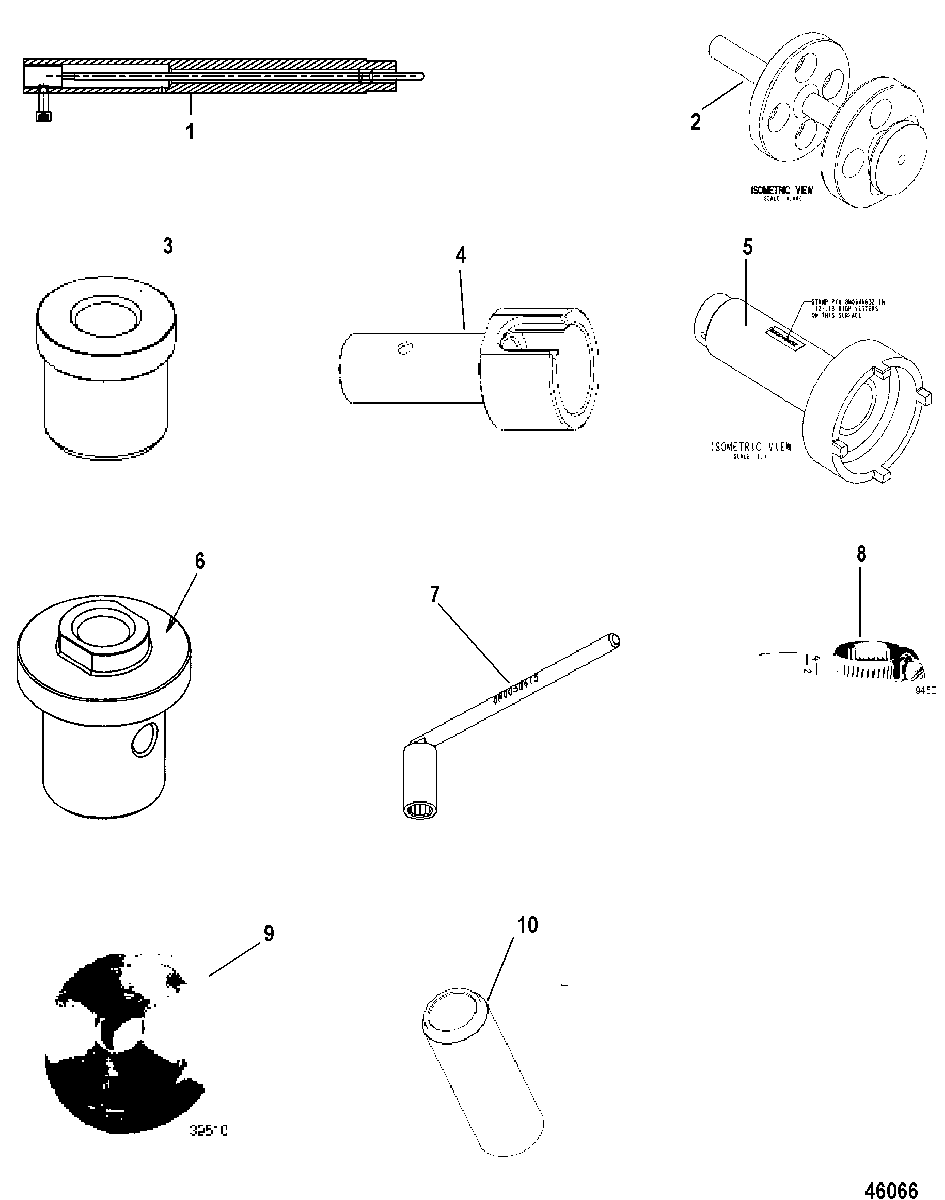

Tools для Mercury - 300 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122
-
№АртикулНазвание
-
191-805382T01 TOOL, Extension-Dial IndicatorTOOL, Extension-Dial Indicator
-
291-8M0046443 TOOL, Height Gageing, pinionTOOL, Height Gageing, pinion
-
391-8M0046348 TOOL, Bearing Driver, Pinion RemovalTOOL, Bearing Driver, Pinion Removal
-
491-8M0036288 TOOL, Holder, Pinion NutTOOL, Holder, Pinion Nut
-
591-8M0046632 TOOL, Socket, Carrier Retainer NutTOOL, Socket, Carrier Retainer Nut
-
691-8M0046360 TOOL, Bearing Driver, Pinion InstallTOOL, Bearing Driver, Pinion Install
-
791-8M0050615 TOOL, Holder, Shift ShaftTOOL, Holder, Shift Shaft
-
891-8M0053505 TOOL, Indicator, BacklashTOOL, Indicator, Backlash
-
991-8M0035594 TOOL, Propeller Shaft HolderTOOL, Propeller Shaft Holder
-
1091-8M0052590 TOOL, Driver, Upper Driveshaft BearingTOOL, Driver, Upper Driveshaft Bearing
-
-889283A01 TOOL KIT, Fuel PrimingTOOL KIT, Fuel Priming
-
-91-809905001 WRENCH, Torque AdaptorWRENCH, Torque Adaptor
-
-91-895343T02 TOOL, Flywheel PullerTOOL, Flywheel Puller
-
-10-895346 BOLTBOLT
-
-889675A01 TOOL, Shunt 14-PinTOOL, Shunt 14-Pin
-
-91-822778004 TOOL, Adaptor Fitting-Power TrimTOOL, Adaptor Fitting-Power Trim
-
-91-896661 TOOL, Fuel FilterTOOL, Fuel Filter
