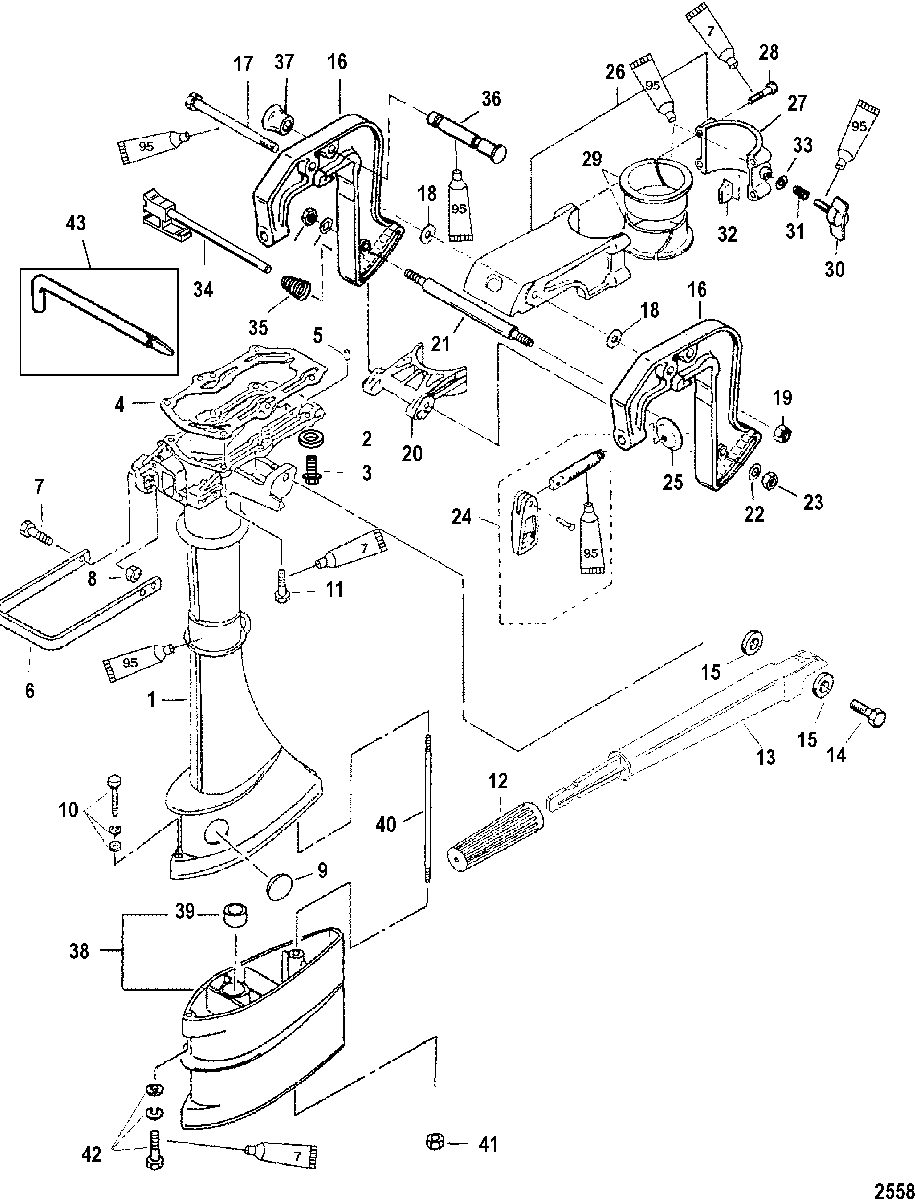

Driveshaft Housing and Clamp Brackets для Mercury - 3.3 0P017000 THRU 0P400999

№

Артикул

Название
1

1599-825130T DRIVESHAFT HOUSING
(2 HP)

DRIVESHAFT HOUSING
(2 HP)

14 250 ₽
1

1599-825130T DRIVESHAFT HOUSING
(Short- 2.5 HP)

DRIVESHAFT HOUSING
(Short- 2.5 HP)

14 250 ₽
1

1599-8251301 DRIVESHAFT HOUSING
(Long- 2.5 HP)

DRIVESHAFT HOUSING
(Long- 2.5 HP)

26 370 ₽
1

1599-825128A1 DRIVESHAFT HOUSING
(3.3 HP)

DRIVESHAFT HOUSING
(3.3 HP)

29 100 ₽
2

8M0082880 GASKET

GASKET

470 ₽
3

19-879194296 FLUSH PLUG

FLUSH PLUG

170 ₽
4

27-815076002 GASKET

GASKET

2 020 ₽
5

17-16119 DOWEL PIN

DOWEL PIN

230 ₽
6

95276 CARRYINGT HANDLE
(2 HP)

CARRYINGT HANDLE
(2 HP)

1 640 ₽
6

95276 CARRYINGT HANDLE
(2.5 HP)

CARRYINGT HANDLE
(2.5 HP)

1 640 ₽
6

823164 CARRYING HANDLE
(3.3 HP)

CARRYING HANDLE
(3.3 HP)

1 130 ₽
7

10-4000330 SCREW, (M6 x 25)

SCREW, (M6 x 25)

250 ₽
8

11-400212 NUT, (M6)

NUT, (M6)

170 ₽
9

25-16117 GROMMET (3.3 HP)

GROMMET (3.3 HP)

330 ₽
10

10-82304227 BOLT
(2 HP)

BOLT
(2 HP)

230 ₽
10

10-82304227 BOLT
(2.5 HP)

BOLT
(2.5 HP)

230 ₽
11

10-823042 BOLT

BOLT

200 ₽
12

95274 GRIP

GRIP

480 ₽
13

823162A3 STEERING HANDLE

STEERING HANDLE

8 660 ₽
14

10-40011151 SCREW, (M8 x 35)

SCREW, (M8 x 35)

520 ₽
15

22-95364 DAMPER

DAMPER

190 ₽
16

3406-8150852 CLAMP BRACKET

CLAMP BRACKET

2 880 ₽
17

10-898101337 BOLT

BOLT

1 170 ₽
18

12-95375 WASHER

WASHER

130 ₽
19

11-815088 NUT, (M8)

NUT, (M8)

270 ₽
20

95278 BRACKET

BRACKET

630 ₽
21

8M0055576 DISTANCE ROD

DISTANCE ROD

520 ₽
22

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
23

11-400212 NUT, (M6)

NUT, (M6)

170 ₽
24

10-8M0075060 CLAMP SCREW ASSEMBLY

CLAMP SCREW ASSEMBLY

4 440 ₽
25

12-95379 PAD

PAD

500 ₽
26

3407-9160T1 SWIVEL BRACKET

SWIVEL BRACKET

6 740 ₽
27

3407-8112041 SWIVEL BRACKET

SWIVEL BRACKET

1 870 ₽
28

10-8M0124428 BOLT

BOLT

0 ₽
29

23-95381 BUSHING

BUSHING

470 ₽
30

10-162061 ADJUSTING SCREW

ADJUSTING SCREW

2 300 ₽
31

24-953838 SPRING

SPRING

120 ₽
32

952791 FRICTION PAD

FRICTION PAD

270 ₽
33

12-16826 WASHER

WASHER

110 ₽
34

8150921 THRUST ROD (Design II)

THRUST ROD (Design II)

3 110 ₽
35

24-815093003 SPRING

SPRING

340 ₽
36

8M0058619 TILT STOPPER

TILT STOPPER

430 ₽
37

815096 KNOB

KNOB

260 ₽
38

823826T03 EXTENSION HOUSING (3.3 HP)

EXTENSION HOUSING (3.3 HP)

28 710 ₽
39

23-811214 BUSHING (3.3 HP)

BUSHING (3.3 HP)

1 320 ₽
40

16-8230441 STUD (3.3 HP)

STUD (3.3 HP)

1 180 ₽
41

11-400212 NUT, (M6) (3.3 HP)

NUT, (M6) (3.3 HP)

170 ₽
42

10-82304232 BOLT (3.3 HP)

BOLT (3.3 HP)

230 ₽
43

8M0101209 THRUST ROD (Design I)

THRUST ROD (Design I)

6 150 ₽
-

27-898101928 GASKET SET, Powerhead
(2 HP)

GASKET SET, Powerhead
(2 HP)

3 730 ₽
-

27-898101928 GASKET SET, Powerhead
(2.5 HP)

GASKET SET, Powerhead
(2.5 HP)

3 730 ₽
-

27-815076A04 GASKET SET, Powerhead
(3.3 HP)

GASKET SET, Powerhead
(3.3 HP)

8 690 ₽
