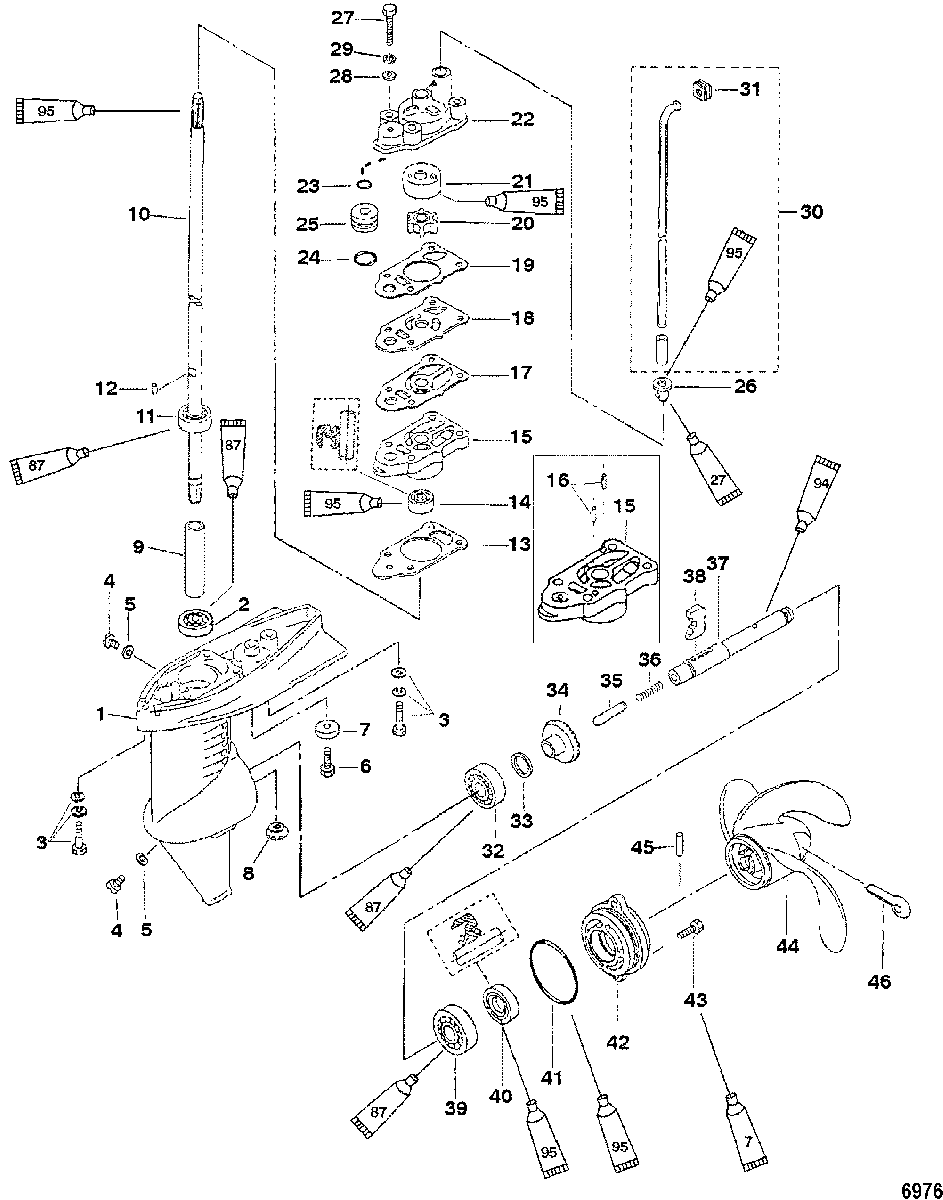

Gear Housing Assembly(3.3 HP) для Mercury - 3.3 0P017000 THRU 0P400999
-
№АртикулНазвание
-
-1600-8M0122311 GEAR HOUSING, Complete
(Short)GEAR HOUSING, Complete
(Short) -
-1600-8M0122312 GEAR HOUSING, Complete
(Long)GEAR HOUSING, Complete
(Long) -
11668-825126T06 GEAR HOUSING, BasicGEAR HOUSING, Basic
-
230-95342 BALL BEARING (Lower)BALL BEARING (Lower)
-
310-82304232 BOLTBOLT
-
422-953683 OIL PLUGOIL PLUG
-
58M0082880 GASKETGASKET
-
610-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
797-823913Q ANODEANODE
-
843-8M0122680 GEARGEAR
-
923-8104711 SPACERSPACER
-
1045-8M0116958 DRIVESHAFT
(Short)DRIVESHAFT
(Short) -
1045-8M0116959 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
1130-95342 BALL BEARINGBALL BEARING
-
1228-16155 KEYKEY
-
1327-898101333 GASKETGASKET
-
1426-161621 SEAL, OilSEAL, Oil
-
1546-815113T03 PUMP HOUSINGPUMP HOUSING
-
1617-9521811 ROLL PINROLL PIN
-
1727-161603 GASKETGASKET
-
18161591 GUIDE PLATEGUIDE PLATE
-
1927-898101331 GASKETGASKET
-
2047-161543 IMPELLERIMPELLER
-
21161571 LINERLINER
-
2246-161561 HOUSINGHOUSING
-
2325-161771 O-RINGO-RING
-
2425-161781 O-RINGO-RING
-
2523-161761 BUSHINGBUSHING
-
2625-953611 GROMMETGROMMET
-
2710-8M0063198 BOLTBOLT
-
2812-16826 WASHERWASHER
-
2913-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
3032-953591 WATER TUBE
(Short)WATER TUBE
(Short) -
3032-953592 WATER TUBE
(Long)WATER TUBE
(Long) -
3125-953601 GROMMETGROMMET
-
3230-16128 BEARING, BallBEARING, Ball
-
3315-16141 SHIM
(0.1)SHIM
(0.1) -
3315-813277 SHIM
(0.15)SHIM
(0.15) -
3443-8M0122680 GEARGEAR
-
35823050 PUSH RODPUSH ROD
-
3624-176671 SPRINGSPRING
-
3744-952911 PROP SHAFTPROP SHAFT
-
3852-823049 CLUTCHCLUTCH
-
3930-95344 BALL BEARINGBALL BEARING
-
4026-95348 OIL SEALOIL SEAL
-
4125-16131 O-RINGO-RING
-
42825116 HOUSINGHOUSING
-
4310-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
4448-815083A02 PROPELLER
(Plastic)PROPELLER
(Plastic) -
4448-815084A02 PROPELLER
(Aluminum)PROPELLER
(Aluminum) -
4517-815111Q02 PIN
(Plastic Propeller)PIN
(Plastic Propeller) -
4517-815111Q02 SHEAR PIN
(Aluminum Ppropeller)SHEAR PIN
(Aluminum Ppropeller) -
4618-95295 COTTER PINCOTTER PIN
-
-27-8M0082881 GASKET SET, Lower UnitGASKET SET, Lower Unit
-
-8M0080264 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
