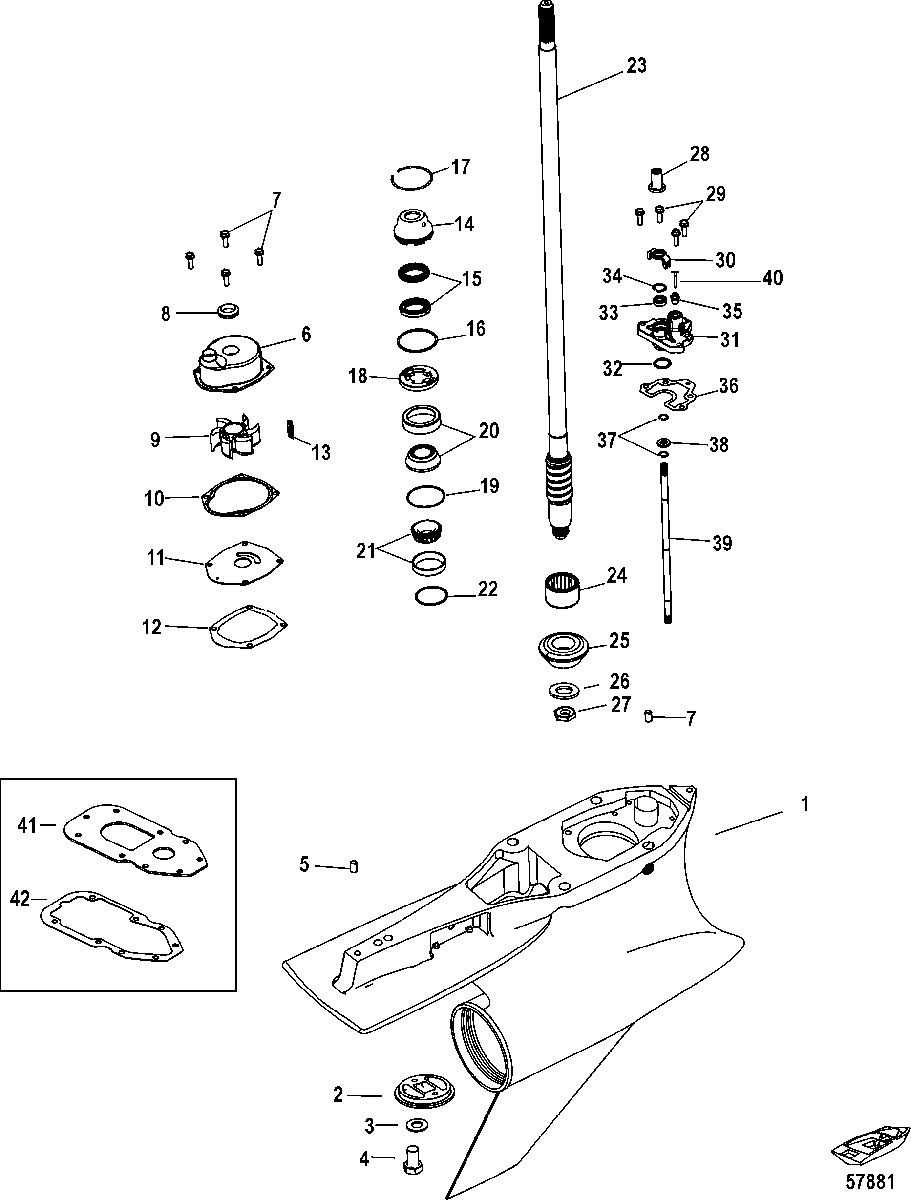

Gear Housing,, Driveshaft, 5.44 HD Sportmaster для Mercury - 350 VERADO (4-Stroke)(6 CYL.) 2B141617 & Up
-
№АртикулНазвание
-
-1600-8M0102783 GEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1)GEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1)
-
-1600-8M0102784 GEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1)GEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1)
-
-1600-8M0102785 GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1)GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1)
-
-1600-8M0102786 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long)(1.75:1)GEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long)(1.75:1)
-
-1600-8M0102787 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1)GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1)
-
-1600-8M0102788 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1)GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1)
-
-1600-8M0137078 GEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1) Cambered SkegGEAR HOUSING ASSEMBLY, Complete (Standard Long) (1.75:1) Cambered Skeg
-
-1600-8M0137079 GEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1) Cambered SkegGEAR HOUSING ASSEMBLY, Complete (Standard X-Long) (1.75:1) Cambered Skeg
-
-1600-8M0137080 GEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1) Cambered SkegGEAR HOUSING ASSEMBLY, Complete (Standard XX-Long) (1.75:1) Cambered Skeg
-
-1600-8M0137081 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long) (1.75:1) Cambered SkegGEAR HOUSING ASSEMBLY, Complete (Counter Rotation Long) (1.75:1) Cambered Skeg
-
-1600-8M0137082 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1) Cambered SkegGEAR HOUSING ASSEMBLY, Complete (Counter Rotation X-Long) (1.75:1) Cambered Skeg
-
-1600-8M0137083 GEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1) Cambered SkegGEAR HOUSING ASSEMBLY, Complete (Counter Rotation XX-Long) (1.75:1) Cambered Skeg
-
11600-8M0102795 GEAR HOUSING ASSEMBLY, Basic
Standard Straight SkegGEAR HOUSING ASSEMBLY, Basic
Standard Straight Skeg -
11600-8M0137073 GEAR HOUSING ASSEMBLY, Basic
Standard Cambered SkegGEAR HOUSING ASSEMBLY, Basic
Standard Cambered Skeg -
11600-8M0137075 GEAR HOUSING ASSEMBLY, Basic
Counter Cambered SkegGEAR HOUSING ASSEMBLY, Basic
Counter Cambered Skeg -
2847635001 ANODEANODE
-
312-841388 WASHER, (.410 x .810 x .050) Stainless SteelWASHER, (.410 x .810 x .050) Stainless Steel
-
410-8M0036047 SCREW, (.375 x .62)SCREW, (.375 x .62)
-
517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
6817275A1 HOUSING KIT, Water PumpHOUSING KIT, Water Pump
-
710-1993720 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
-47-8M0100526 IMPELLER REPAIR KITIMPELLER REPAIR KIT
-
826-8M2014338 SEAL, FaceSEAL, Face
-
947-43026Q02 IMPELLERIMPELLER
-
1027-8172771 GASKETGASKET
-
118172761 FACEPLATEFACEPLATE
-
1227-8M0112903 GASKETGASKET
-
1328-8M0032833 KEYKEY
-
148M0046297 OIL SEAL ASSEMBLYOIL SEAL ASSEMBLY
-
15NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
1625-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
1753-880719 RING, RetainingRING, Retaining
-
188245191 RETAINERRETAINER
-
1915-8M0063267 SHIM SETSHIM SET
-
2031-36387A1 BEARING ASSEMBLY, Roller/CupBEARING ASSEMBLY, Roller/Cup
-
2131-48939A2 BEARING, Tapered RollerBEARING, Tapered Roller
-
2215-8M0063268 SHIM SETSHIM SET
-
2345-8M0103301 SHAFT, Drive, XX-LongSHAFT, Drive, XX-Long
-
2348-8M0141337 SHAFT, Drive, X-LongSHAFT, Drive, X-Long
-
2345-8M0141338 SHAFT, Drive, LongSHAFT, Drive, Long
-
2431-8M0045676 BEARING, RollerBEARING, Roller
-
2543-8M0078258 GEAR SET, 12/21(1.75:1), Forward and Pinion
Standard RotationGEAR SET, 12/21(1.75:1), Forward and Pinion
Standard Rotation -
2543-8M0053120 GEAR SET, 12/21 (1.75:1), Forward and Pinion
Counter RotationGEAR SET, 12/21 (1.75:1), Forward and Pinion
Counter Rotation -
2612-8M0062703 WASHER, Pinon nutWASHER, Pinon nut
-
2711-8M0046636 NUT, PinionNUT, Pinion
-
2843585 COUPLINGCOUPLING
-
2910-1993720 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
308M0050809 GROMMET ASSEMBLYGROMMET ASSEMBLY
-
318M0047129 COVER ASSEMBLYCOVER ASSEMBLY
-
3225-896522 O-RING, (799 x .103)O-RING, (799 x .103)
-
3326-8164641 SEAL, OilSEAL, Oil
-
3453-8M0046563 RETAINING RINGRETAINING RING
-
3522-881866 FITTINGFITTING
-
3627-880729 GASKETGASKET
-
3753-29641 E RINGE RING
-
388M0050602 MAGNETMAGNET
-
398M0046104 SHIFT SHAFTSHIFT SHAFT
-
4022-859732 PLUG
1.75:1 RatioPLUG
1.75:1 Ratio -
418M0094053 PLATE, Water PassagePLATE, Water Passage
-
4227-8M0094054 GASKET, Water PassageGASKET, Water Passage
-
-8M0065064 SEAL KIT, GearcaseSEAL KIT, Gearcase
-
-8M0078858 WATER PUMP REPAIR KIT, CompleteWATER PUMP REPAIR KIT, Complete
-
-25-8M0065072 WATER PUMP REPAIR KIT, UpperWATER PUMP REPAIR KIT, Upper
