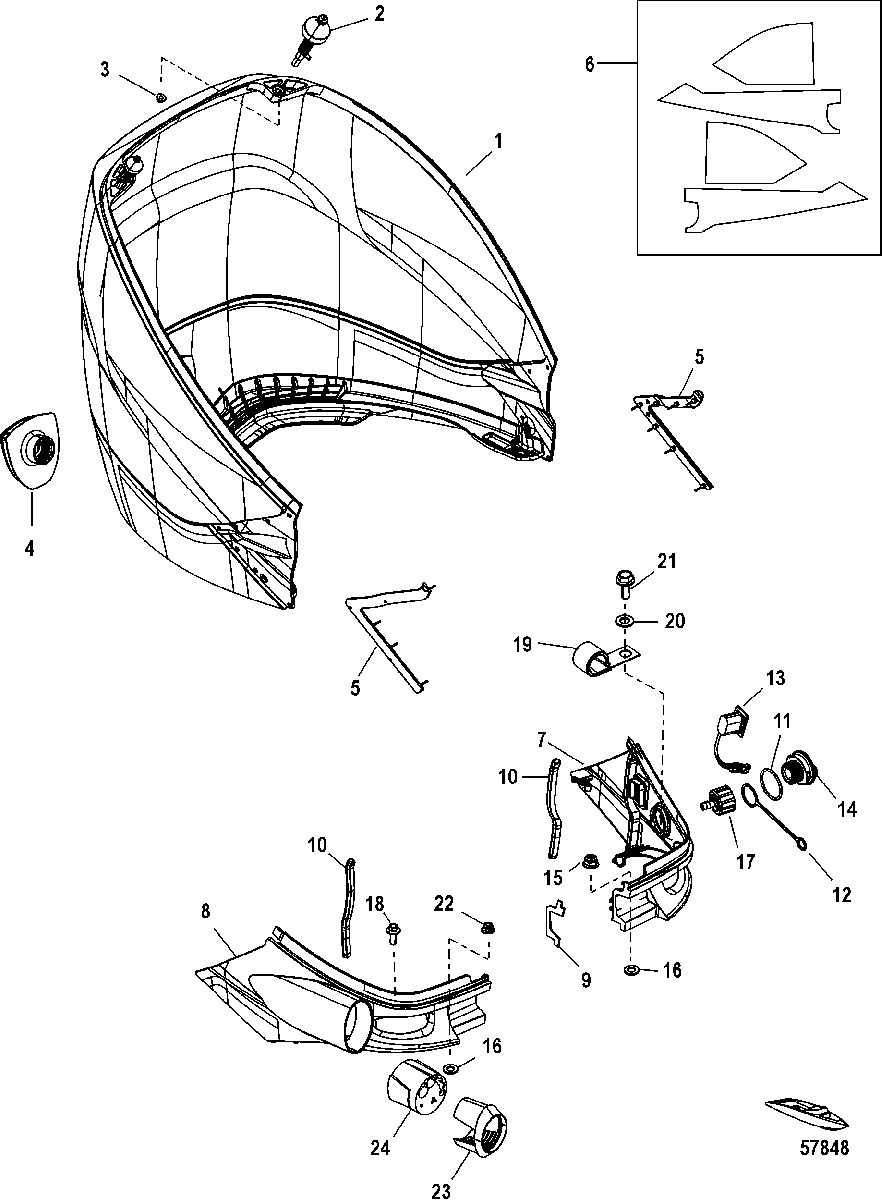

Rear Cowl для Mercury - 350 VERADO (4-Stroke)(6 CYL.) 2B141617 & Up
-
№АртикулНазвание
-
1100-8M0100175 REAR COWL ASSEMBLY, Black Non-DecaledREAR COWL ASSEMBLY, Black Non-Decaled
-
1100-8M0100176 REAR COWL ASSEMBLY, Cold Fusion, Non-DecaledREAR COWL ASSEMBLY, Cold Fusion, Non-Decaled
-
1100-8M0100177 REAR COWL ASSEMBLY, Warm Fusion, Non-DecaledREAR COWL ASSEMBLY, Warm Fusion, Non-Decaled
-
217-888961A01 PIN ASSEMBLYPIN ASSEMBLY
-
311-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
4885360 IDLE RELIEFIDLE RELIEF
-
5100-8M0100563 SEAL ASSEMBLY, Rear Cowl, Port and StarboardSEAL ASSEMBLY, Rear Cowl, Port and Starboard
-
6NSS NOT SOLD SEPARATE, Seal, StarboardNOT SOLD SEPARATE, Seal, Starboard
-
-100-8M0100172 FRONT COWL ASSEMBLY, Port and Starboard, MercuryFRONT COWL ASSEMBLY, Port and Starboard, Mercury
-
-100-8M0100173 FRONT COWL ASSEMBLY, Port and Starboard, Cold FusionFRONT COWL ASSEMBLY, Port and Starboard, Cold Fusion
-
-100-8M0100174 FRONT COWL ASSEMBLY, Port and Starboard, Warm FusionFRONT COWL ASSEMBLY, Port and Starboard, Warm Fusion
-
7NSS NOT SOLD SEPARATE, FRONT COWL, PortNOT SOLD SEPARATE, FRONT COWL, Port
-
8NSS NOT SOLD SEPARATE, FRONT COWL, StarboardNOT SOLD SEPARATE, FRONT COWL, Starboard
-
927-892315 GASKETGASKET
-
108M0043266 SEALSEAL
-
1125-888957 O-RINGO-RING
-
12889823001 TETHERTETHER
-
1387-8M0042300 SWITCH, TrimSWITCH, Trim
-
1422-888958001 PLUG, FlushPLUG, Flush
-
1511-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1612-4002316 WASHERWASHER
-
1722-885361A01 FITTING ASSEMBLY, FlushFITTING ASSEMBLY, Flush
-
1810-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1954-858951A01 CLAMP KITCLAMP KIT
-
2012-4002316 WASHERWASHER
-
2110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2211-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
238M0043519 ADAPTORADAPTOR
-
2425-897169 GROMMETGROMMET
-
258M4501634 SOUND BLANKET KITSOUND BLANKET KIT
-
-100-8M0100563 SEAL ASSEMBLY, Rear Cowl, Port and StarboardSEAL ASSEMBLY, Rear Cowl, Port and Starboard
