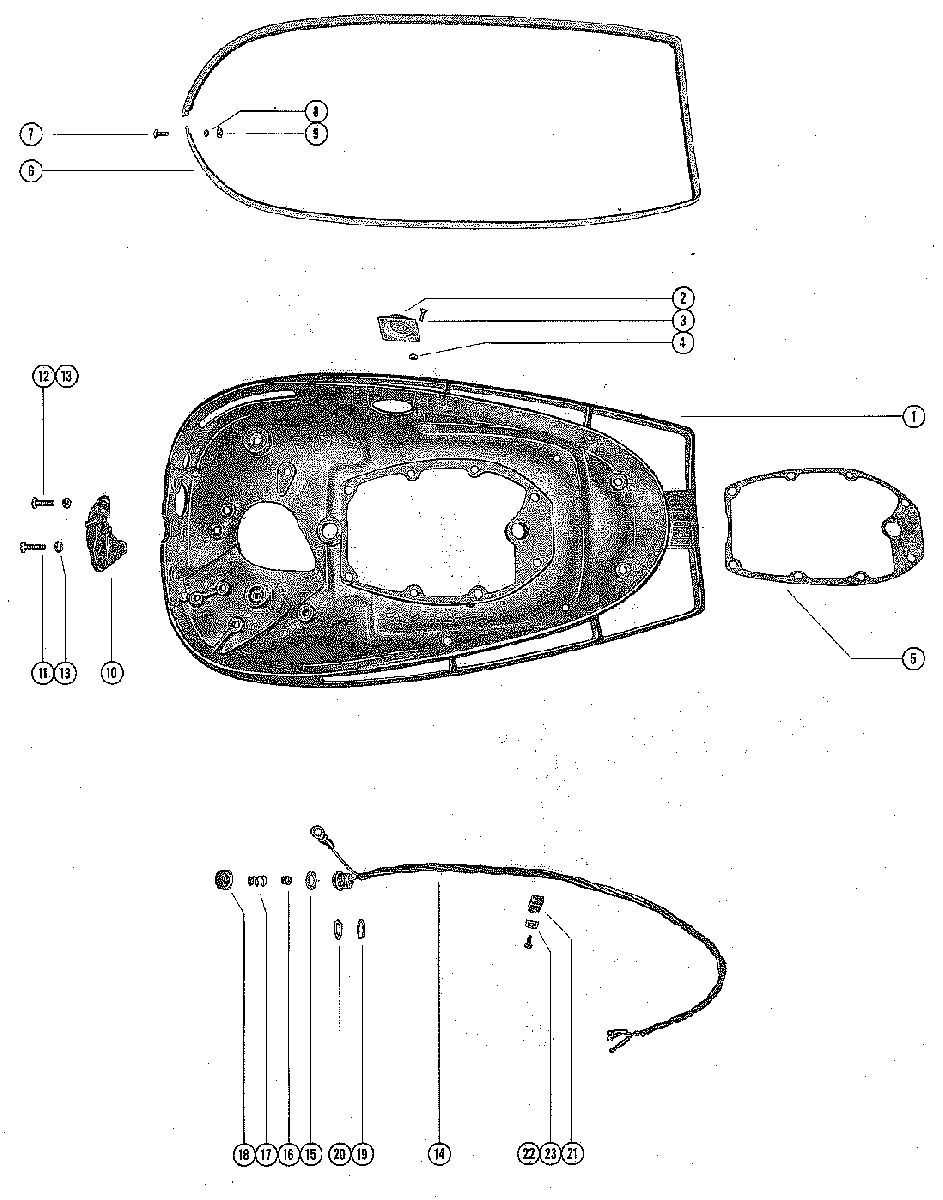

BOTTOM COWL ASSEMBLY для Mercury - 350 1571114 THRU 1812753
-
№АртикулНазвание
-
12101-2173A2 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
229206 COVER, PLUG - BOTTOM COWL HARNESS HOLECOVER, PLUG - BOTTOM COWL HARNESS HOLE
-
310-46270 SCREW, PLUG COVER TO BOTTOM COWLSCREW, PLUG COVER TO BOTTOM COWL
-
411-28656 NUT, PLUG COVER TO BOTTOM COWL SCREWNUT, PLUG COVER TO BOTTOM COWL SCREW
-
527-33947 GASKET, POWERHEAD TO BOTTOM COWLGASKET, POWERHEAD TO BOTTOM COWL
-
633896 MOULDING, TRIM - BOTTOM COWLMOULDING, TRIM - BOTTOM COWL
-
710-29226 SCREW, DECORATIVE - MOULDING TO BOTTOM COWLSCREW, DECORATIVE - MOULDING TO BOTTOM COWL
-
813-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
911-26419 NUT, MOULDING FASTENING SCREWNUT, MOULDING FASTENING SCREW
-
1033946 BRACKET, LOCK KNOB - COWL FRONT COVERBRACKET, LOCK KNOB - COWL FRONT COVER
-
1110-20653 SCREW, BRACKET TO BOTTOM COWL (1")SCREW, BRACKET TO BOTTOM COWL (1")
-
1210-22956 SCREW, BRACKET TO BOTTOM COWL (7/8")SCREW, BRACKET TO BOTTOM COWL (7/8")
-
1311-24652 NUT, BRACKET TO BOTTOM COWL SCREWNUT, BRACKET TO BOTTOM COWL SCREW
-
--33474A1 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
1433474 HARNESS, STOP SWITCHHARNESS, STOP SWITCH
-
1512-30856 WASHER, SEALING - STOP SWITCHWASHER, SEALING - STOP SWITCH
-
1630859 INSULATOR, SLEEVE - INNER SWITCH TERMINALSINSULATOR, SLEEVE - INNER SWITCH TERMINALS
-
1724-30858A1 SPRING AND CONTACT ASSEMBLYSPRING AND CONTACT ASSEMBLY
-
1838950A1 COVER, STOP SWITCHCOVER, STOP SWITCH
-
1913-21972 LOCKWASHER, STOP SWITCH CONNECTORLOCKWASHER, STOP SWITCH CONNECTOR
-
2011-21971 NUT, STOP SWITCH CONNECTOR TO BOTTOM COWLNUT, STOP SWITCH CONNECTOR TO BOTTOM COWL
-
2154-26550 CLIP, STOP SWITCH LEADS TO EXHAUST COVERCLIP, STOP SWITCH LEADS TO EXHAUST COVER
-
2210-72169 SCREW, STOP SWITCH LEADS CLIP TO EXHAUST COVERSCREW, STOP SWITCH LEADS CLIP TO EXHAUST COVER
-
238M0084613 "D" WASHER, STOP SWITCH LEADS CLIP SCREW"D" WASHER, STOP SWITCH LEADS CLIP SCREW
