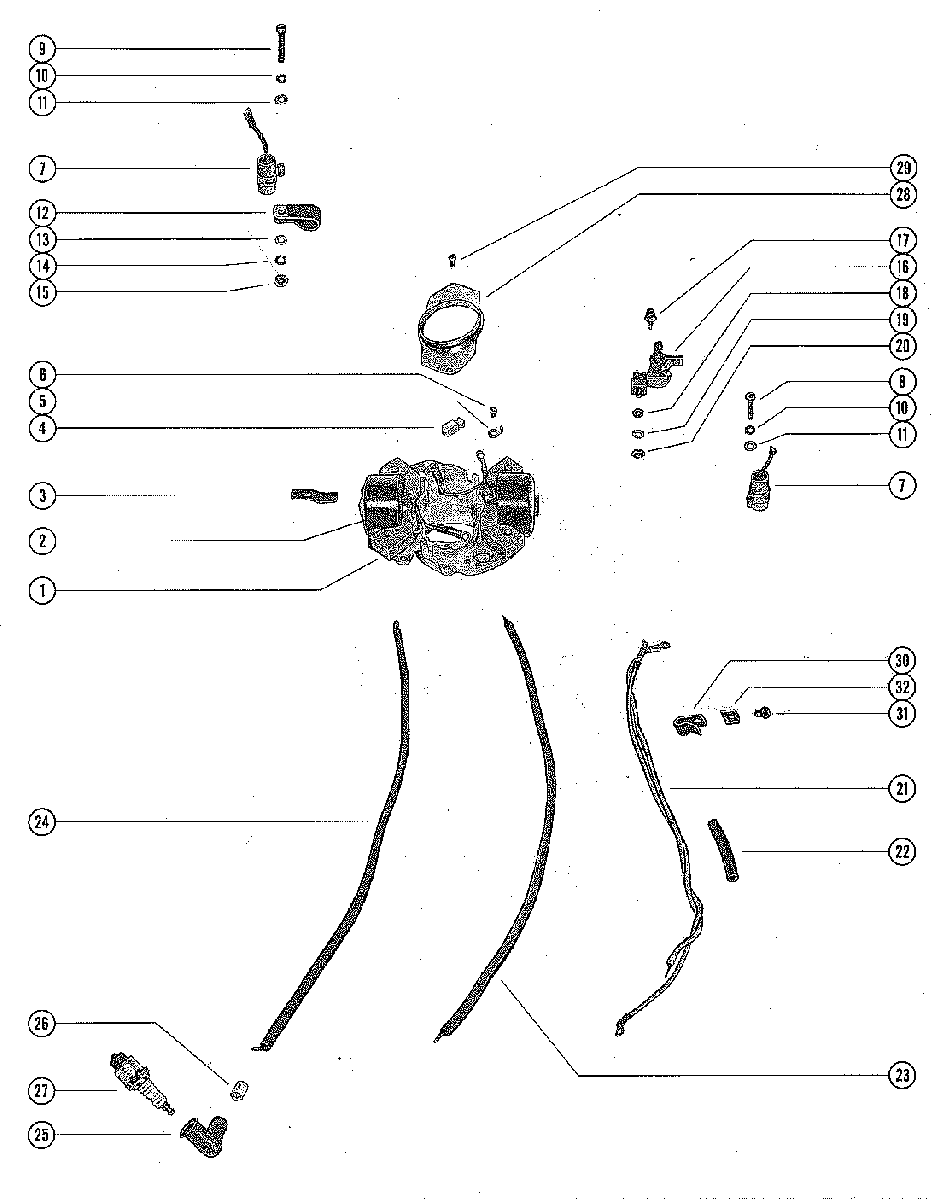

STATOR PLATE ASSEMBLY для Mercury - 350 1571114 THRU 1812753
-
№АртикулНазвание
-
-398-2221A1 STATOR PLATE ASSEMBLY, COMPLETESTATOR PLATE ASSEMBLY, COMPLETE
-
1398-2221 STATOR PLATE AND CORESTATOR PLATE AND CORE
-
2398-2568T1 COIL ASSEMBLYCOIL ASSEMBLY
-
354-31059 CLIP, CORE AND COILCLIP, CORE AND COIL
-
4398-2207 FELT, CAM - BREAKERFELT, CAM - BREAKER
-
5398-732 CLIP, GROUND WIRE LEADCLIP, GROUND WIRE LEAD
-
610-21130 SCREW, GROUND TERMINALSCREW, GROUND TERMINAL
-
7398-2203 CONDENSER ASSEMBLYCONDENSER ASSEMBLY
-
810-46718 SCREW, CONDENSER FASTENING (3/4")SCREW, CONDENSER FASTENING (3/4")
-
910-38395 SCREW, CONDENSER FASTENING (1 1/4")SCREW, CONDENSER FASTENING (1 1/4")
-
1013-21134 LOCKWASHER, CONDENSER FASTENING SCREWLOCKWASHER, CONDENSER FASTENING SCREW
-
1112-21135 WASHER, CONDENSER FASTENING SCREWWASHER, CONDENSER FASTENING SCREW
-
1254-39844A1 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
1312-21135 WASHER, LEAD WIRE CLAMP SCREWWASHER, LEAD WIRE CLAMP SCREW
-
1413-21134 LOCKWASHER, LEAD WIRE CLAMP SCREWLOCKWASHER, LEAD WIRE CLAMP SCREW
-
1511-21923T NUT, LEAD WIRE CLAMP SCREWNUT, LEAD WIRE CLAMP SCREW
-
16398-2202 BREAKER ASSEMBLYBREAKER ASSEMBLY
-
1710-33988 SCREW AND LOCKWASHER, BREAKER FASTENINGSCREW AND LOCKWASHER, BREAKER FASTENING
-
1812-21135 WASHER, TERMINAL SCREWWASHER, TERMINAL SCREW
-
1913-21134 LOCKWASHER, TERMINAL SCREWLOCKWASHER, TERMINAL SCREW
-
2011-21923T NUT, TERMINAL SCREWNUT, TERMINAL SCREW
-
21398-2206 GROUND LEAD, STATOR TO TERMINAL BLOCKGROUND LEAD, STATOR TO TERMINAL BLOCK
-
2223-30419 SLEEVE, INSULATION - GROUND LEADSLEEVE, INSULATION - GROUND LEAD
-
2384-821945A46 LEAD WIRELEAD WIRE
-
2484-821945A46 LEAD WIRE, TOPLEAD WIRE, TOP
-
2585-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
2620117 MARKER, "TOP" - LEAD WIREMARKER, "TOP" - LEAD WIRE
-
2733-813469 SPARK PLUG (CHAMPION - J6J)SPARK PLUG (CHAMPION - J6J)
-
28398-2208 COVER, DUST - STATOR PLATECOVER, DUST - STATOR PLATE
-
2910-21130 SCREW, DUST COVER TO STATOR PLATESCREW, DUST COVER TO STATOR PLATE
-
3054-24836 CLIP, GROUND LEADCLIP, GROUND LEAD
-
3110-8M0113176 SCREW, GROUND LEAD CLIP TO EXTENSION BRACKETSCREW, GROUND LEAD CLIP TO EXTENSION BRACKET
-
328M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
