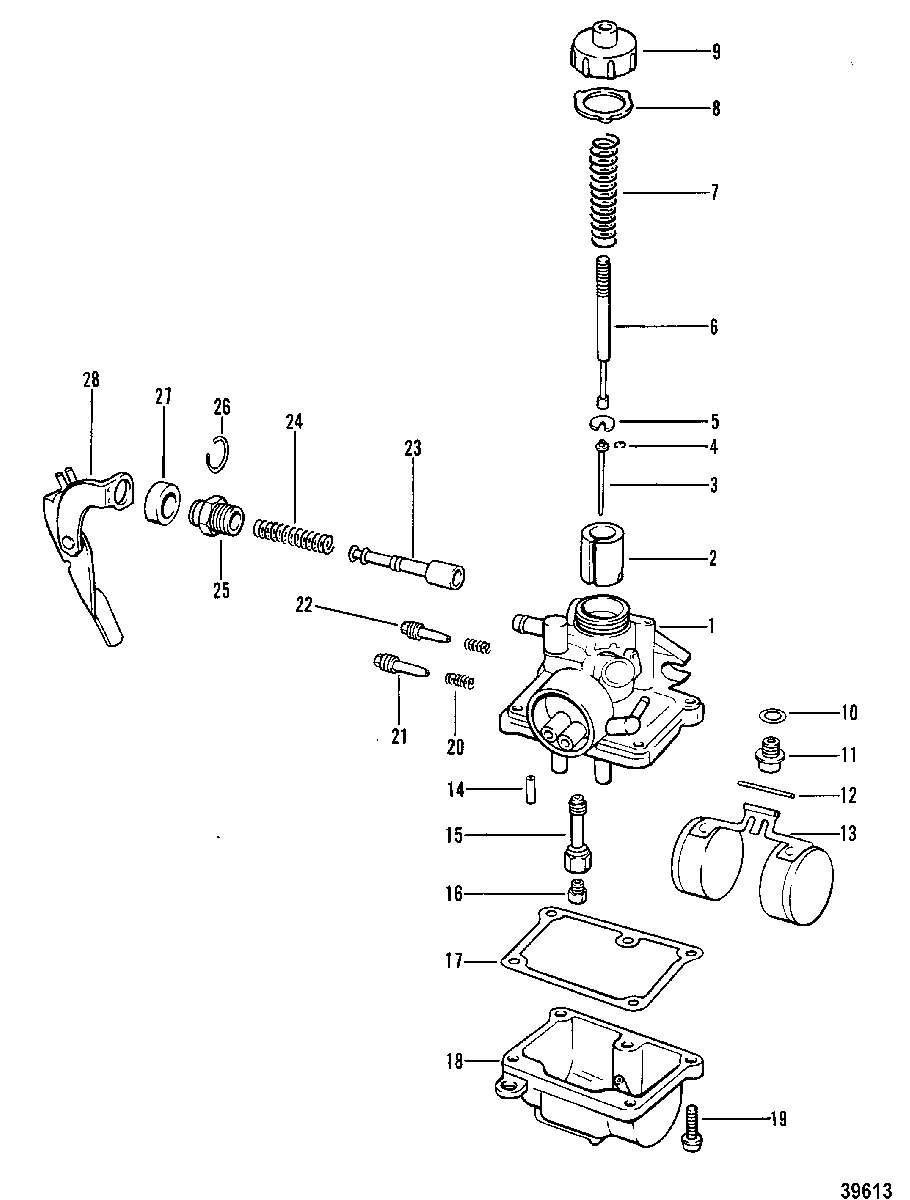

CARBURETOR ASSEMBLY для Mercury - 3.6 7145388 & Up
-
№АртикулНазвание
-
11385-7568 CARBURETORCARBURETOR
-
21393-7759 VALVE, ThrottleVALVE, Throttle
-
31393-7772 JET NEEDLEJET NEEDLE
-
41393-7770 E RING, NEEDLE JETE RING, NEEDLE JET
-
51393-7774 RETAINERRETAINER
-
61393-7760 RODROD
-
71393-7758 SPRING, RODSPRING, ROD
-
81393-7757 GASKET, COVERGASKET, COVER
-
91393-7756 COVER, MIXING CHAMBERCOVER, MIXING CHAMBER
-
101393-7767 GASKET, INLET NEEDLEGASKET, INLET NEEDLE
-
111393-7768 NEEDLE AND SEAT, InletNEEDLE AND SEAT, Inlet
-
121393-7769 PIN, FLOATPIN, FLOAT
-
131393-7762 FLOATFLOAT
-
141393-7766 PILOT JETPILOT JET
-
151393-7771 NEEDLE JETNEEDLE JET
-
161393-7773 MAIN JETMAIN JET
-
171393-7763 GASKET, FLOAT BOWLGASKET, FLOAT BOWL
-
18N.S.S. Not Sold Separate, Float BowlNot Sold Separate, Float Bowl
-
191393-7765 SCREW, FLOAT BOWLSCREW, FLOAT BOWL
-
201393-6158 SPRING, ADJUSTING SCREWSPRING, ADJUSTING SCREW
-
211393-7750 SCREW, ADJUSTING-LOW SPEEDSCREW, ADJUSTING-LOW SPEED
-
221393-7761 SCREW, ADJUSTING-IDLE SPEEDSCREW, ADJUSTING-IDLE SPEED
-
231393-7751 PLUNGERPLUNGER
-
241393-7752 SPRING, PLUNGERSPRING, PLUNGER
-
251393-7753 CAP, PLUNGERCAP, PLUNGER
-
261393-7754 CLIP, PLUNGER CAPCLIP, PLUNGER CAP
-
271393-7755 CAPCAP
-
281393-7764 LEVERLEVER
