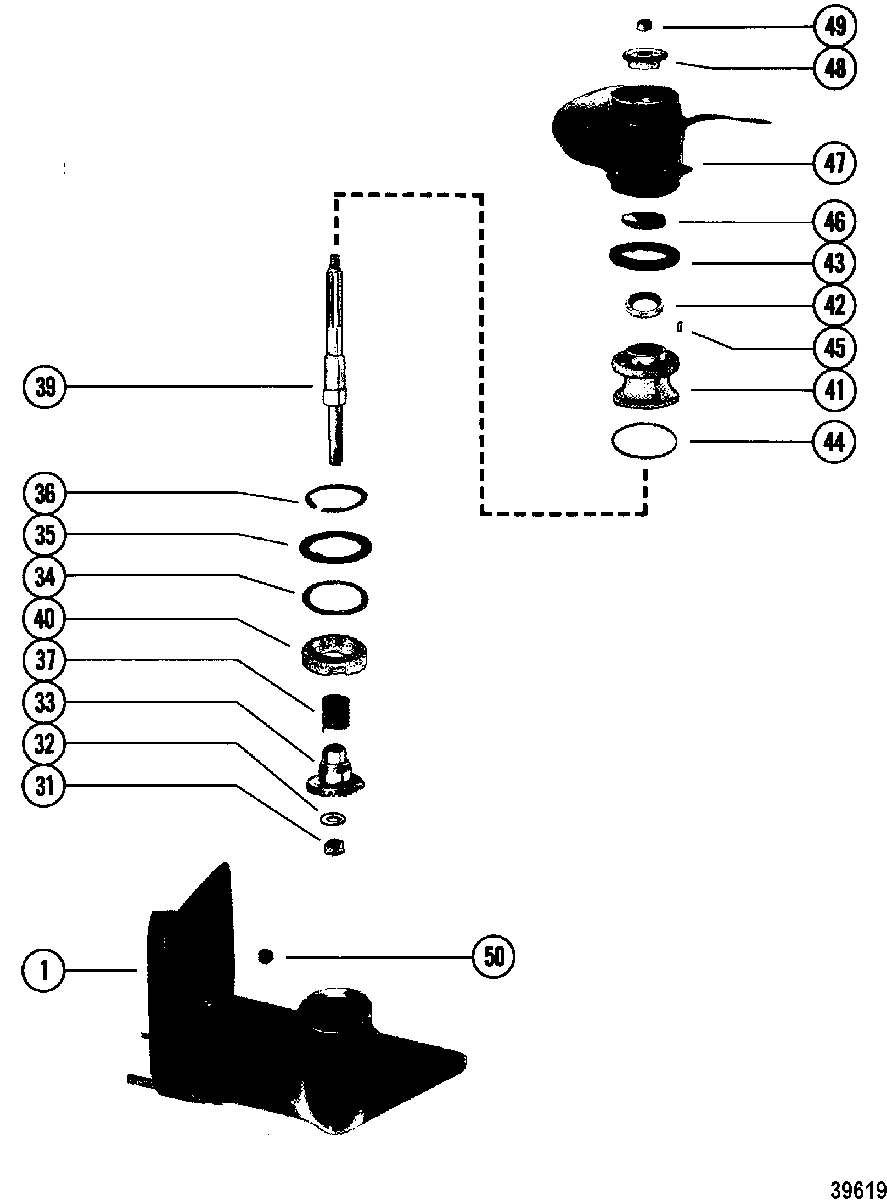

GEAR HOUSING ASSEMBLY(PROPELLER SHAFT) для Mercury - 3.6 7145388 & Up
-
№АртикулНазвание
-
-1648-7811A18 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571989 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571989 & Below -
-1648-7811A19 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571989 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571989 & Below -
-1648-7811A18 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 -
-1648-7811A19 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 -
-1648-7811A18 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
-1648-7811A19 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
11648-7811A9 GEAR HOUSING ASSEMBLY, BASIC
SN# US-5571989 & BelowGEAR HOUSING ASSEMBLY, BASIC
SN# US-5571989 & Below -
11648-7811A9 GEAR HOUSING ASSEMBLY, BASIC
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & UpGEAR HOUSING ASSEMBLY, BASIC
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 & Up -
3111-20696 NUT, PROPELLER SHAFTNUT, PROPELLER SHAFT
-
3212-73672 WASHER, PROPELLER SHAFTWASHER, PROPELLER SHAFT
-
3343-90795A1 GEAR, Drive
SN# US-5571989 & BelowGEAR, Drive
SN# US-5571989 & Below -
3343-90795A1 GEAR, Drive
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027GEAR, Drive
SN# US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388 THRU US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 -
3343-93398 GEAR, Drive
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpGEAR, Drive
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
3414-79603 WASHER, SPECIAL-PROPELLER SHAFTWASHER, SPECIAL-PROPELLER SHAFT
-
3515-79602A1 SHIM SET, PROPELLER SHAFT (.002-3-5-10-20)SHIM SET, PROPELLER SHAFT (.002-3-5-10-20)
-
3653-79601 RING, RetainingRING, Retaining
-
3724-91813 SPRING, CLUTCHSPRING, CLUTCH
-
3944-77425 PROPELLER SHAFT
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & BelowPROPELLER SHAFT
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below -
3944-93397 PROPELLER SHAFT
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpPROPELLER SHAFT
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
4077424 SPACER, PROPELLER SHAFTSPACER, PROPELLER SHAFT
-
4199210A1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
4226-98309 SEAL, OilSEAL, Oil
-
4375812 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
4425-68935 O-RING, (1.799 x .103), BEARING CARRIERO-RING, (1.799 x .103), BEARING CARRIER
-
4528-32003 KEY, BEARING CARRIERKEY, BEARING CARRIER
-
4670588 THRUST HUB, FORWARDTHRUST HUB, FORWARD
-
4748-86903A1 PROPELLER ASSEMBLY
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & BelowPROPELLER ASSEMBLY
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below -
4748-93357A10 PROPELLER ASSEMBLY
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpPROPELLER ASSEMBLY
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
4870589 THRUST HUB, AFT
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & BelowTHRUST HUB, AFT
SN# US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027 & Below -
4893356 THRUST HUB, AFT
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & UpTHRUST HUB, AFT
SN# US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028 & Up -
4911-82670911 NUT, (.312-24) Stainless Steel, PROPELLERNUT, (.312-24) Stainless Steel, PROPELLER
-
5011-82670911 NUT, (.312-24) Stainless Steel, DRIVESHAFT HOUSING STUDNUT, (.312-24) Stainless Steel, DRIVESHAFT HOUSING STUD
-
-27-98540A83 GASKET SETGASKET SET
-
-26-71140A1 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
