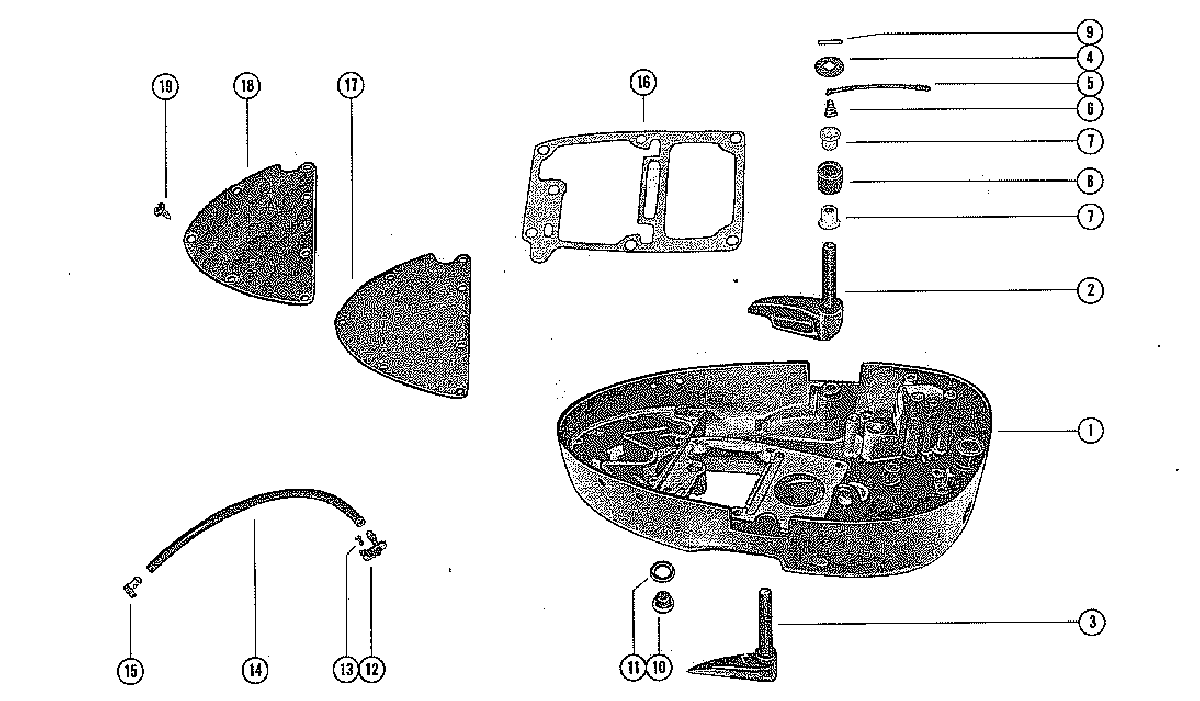

BOTTOM COWL ASSEMBLY для Mercury - 40 (1 CYL.) 3305152 THRU 7045757
-
№АртикулНазвание
-
1187-4709 BOTTOM COWL
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOWBOTTOM COWL
UNITED STATES 3764824 AND BELOW
AUSTRALIA 8014364 AND BELOW
BELGIUM 9037733 AND BELOW
CANADA 7025897 AND BELOW -
1187-7711A4 BOTTOM COWL
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897BOTTOM COWL
UNITED STATES 3529446 THRU 3764824
AUSTRALIA 8005740 THRU 8014364
BELGIUM 9012109 THRU 9037733
CANADA 7011058 THRU 7025897 -
236187A1 LEVER ASSEMBLY, CLAMPING - PORTLEVER ASSEMBLY, CLAMPING - PORT
-
336188A1 LEVER ASSEMBLY, CLAMPING - STARBOARDLEVER ASSEMBLY, CLAMPING - STARBOARD
-
453-55891 FASTENER, CLAMPING LEVERFASTENER, CLAMPING LEVER
-
584-60871A7 GROUND STRAP ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWGROUND STRAP ASSEMBLY
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
624-63399 SPRING, GROUND STRAP
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSPRING, GROUND STRAP
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
723-26819 BUSHING, NYLON - CLAMPING LEVERBUSHING, NYLON - CLAMPING LEVER
-
823-31293 BUSHING, RUBBER - CLAMPING LEVERBUSHING, RUBBER - CLAMPING LEVER
-
917-58997 PIN, ROLL - CLAMPING LEVERPIN, ROLL - CLAMPING LEVER
-
1010-79953Q04 SCREW, BOTTOM COWL FLUSHING HOLESCREW, BOTTOM COWL FLUSHING HOLE
-
1112-191833 WASHER, BOTTOM COWL FLUSHING HOLE SCREWWASHER, BOTTOM COWL FLUSHING HOLE SCREW
-
1256712 NOZZLE, TELL TALENOZZLE, TELL TALE
-
1310-35519 SCREW, TELL TALE NOZZLE TO BOTTOM COWLSCREW, TELL TALE NOZZLE TO BOTTOM COWL
-
1432-8M0108355 TUBE, TELL TALE (7 1/4")TUBE, TELL TALE (7 1/4")
-
1522-996642 ELBOW, TELL TALE - HOSE TO CYLINDER BLOCKELBOW, TELL TALE - HOSE TO CYLINDER BLOCK
-
1627-89937 GASKET, POWERHEAD TO BOTTOM COWLGASKET, POWERHEAD TO BOTTOM COWL
-
1727-55847 GASKET, EXHAUST RELEIF COVER TO BOTTOM COWLGASKET, EXHAUST RELEIF COVER TO BOTTOM COWL
-
1855936 COVER, EXHAUST RELIEFCOVER, EXHAUST RELIEF
-
1910-69079 SCREW, EXHAUST RELEIF COVER TO BOTTOM COWL (7/16")SCREW, EXHAUST RELEIF COVER TO BOTTOM COWL (7/16")
