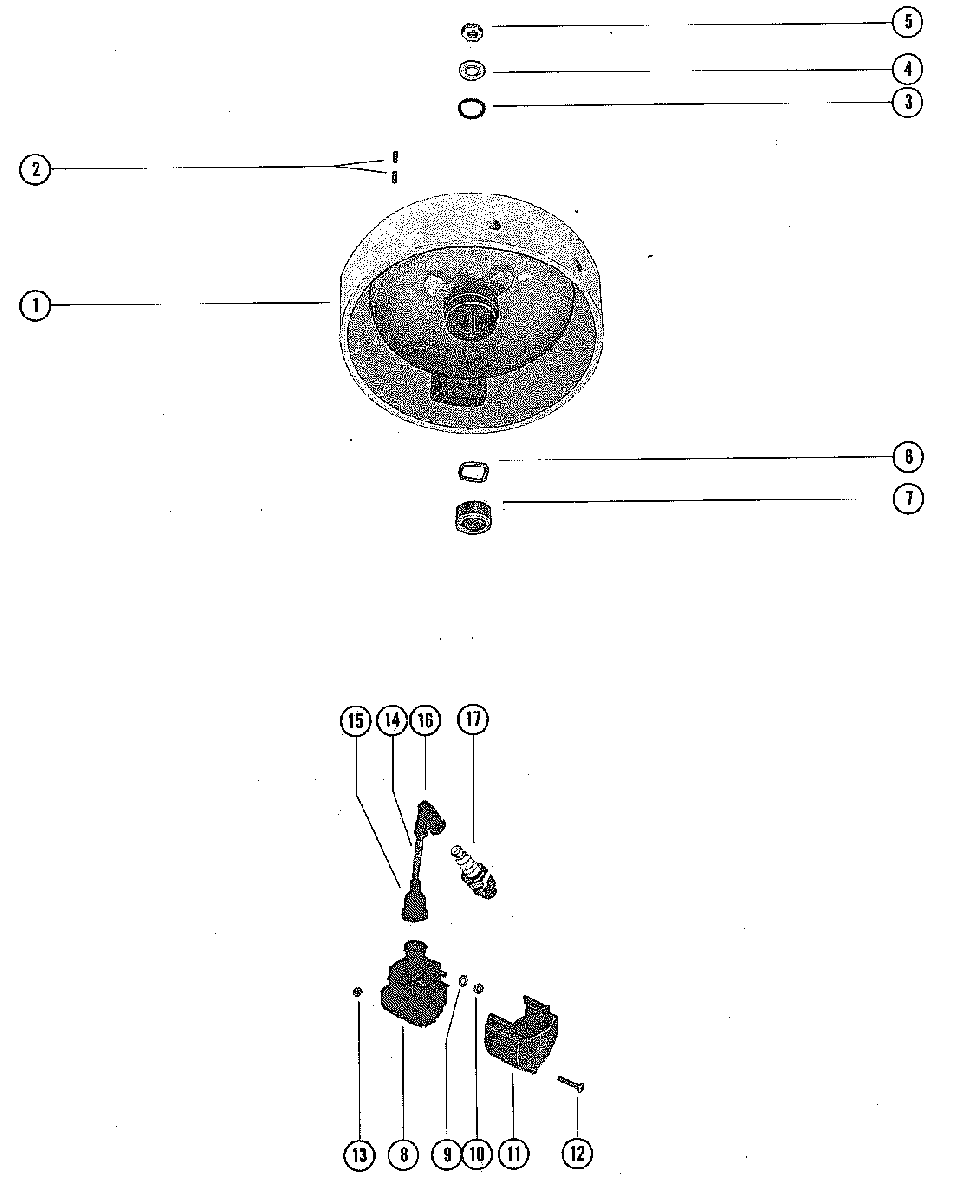

FLYWHEEL AND IGNITION COIL для Mercury - 40 (1 CYL.) 3305152 THRU 7045757
-
№АртикулНазвание
-
1236-4475A1 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
228-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
325-62701 "O" RING, FLYWHEEL NUT"O" RING, FLYWHEEL NUT
-
412-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
511-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
613-35629 WASHER, WAVE - CAM TENSIONWASHER, WAVE - CAM TENSION
-
7336-4465 CAM, BREAKERCAM, BREAKER
-
8336-4528T2 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
913-26996 LOCKWASER, IGNITION COIL TERMINALLOCKWASER, IGNITION COIL TERMINAL
-
1011-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
1166355 COVER, IGNITION COILCOVER, IGNITION COIL
-
1210-61530 SCREW, COIL COVER TO REAR SUPPORT GRACKET (3 3/4")SCREW, COIL COVER TO REAR SUPPORT GRACKET (3 3/4")
-
1311-27164 NUT, COIL COVER SCREWNUT, COIL COVER SCREW
-
1484-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
15332-2854T01 NIPPLE, IGNITION COILNIPPLE, IGNITION COIL
-
1685-63709A1 PROTECTOR ASSEMBLY, SPAR PLUGPROTECTOR ASSEMBLY, SPAR PLUG
-
1733-97182Q SPARK PLUG (AC #40FFK)SPARK PLUG (AC #40FFK)
