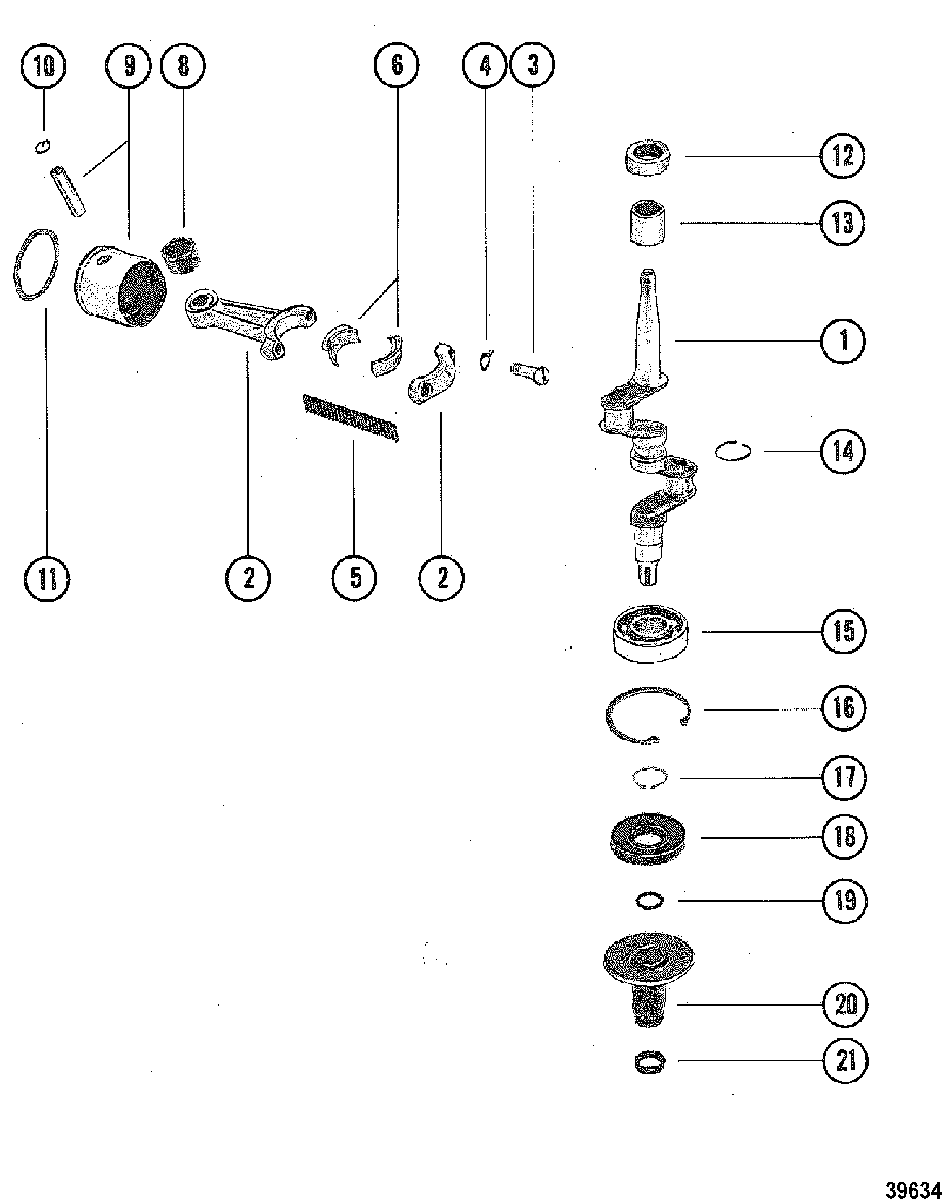

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 40 (2 CYL. PRODUCT OF USA) 5589202 THRU 5595531
-
№АртикулНазвание
-
1458-5549 CRANKSHAFTCRANKSHAFT
-
2626-5547A5 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
310-72455 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
414-72454 TAB WASHER, CONNECTING ROD SCREWTAB WASHER, CONNECTING ROD SCREW
-
529-68944 BEARING, Needle, CONNECTING RODBEARING, Needle, CONNECTING ROD
-
668953A1 LINER ASSEMBLY, CRANKPINLINER ASSEMBLY, CRANKPIN
-
831-68949 BEARING, Roller, CONNECTING ROD - PISTON PINBEARING, Roller, CONNECTING ROD - PISTON PIN
-
9758-8076A2 PISTON ASSEMBLY
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowPISTON ASSEMBLY
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
9758-8076A2 PISTON ASSEMBLY
SN# US-5805431/Belgium-9294811/Canada-7166328 & UpPISTON ASSEMBLY
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
1040-68950 LOCK RING, PISTONLOCK RING, PISTON
-
1139-70175A12 RING SET, PistonRING SET, Piston
-
1226-30530 SEAL, Oil, CRANKSHAFT - UPPERSEAL, Oil, CRANKSHAFT - UPPER
-
1331-78099 BEARING, Roller, CRANKSHAFT - UPPERBEARING, Roller, CRANKSHAFT - UPPER
-
1471841 RING, CRANKSHAFTRING, CRANKSHAFT
-
1530-69389 BEARING, Ball, CRANKSHAFT - LOWERBEARING, Ball, CRANKSHAFT - LOWER
-
1653-68952 RING, Retaining, BALL BEARING -LARGERING, Retaining, BALL BEARING -LARGE
-
1753-27275 RING, Retaining, BALL BEARING - SMALLRING, Retaining, BALL BEARING - SMALL
-
1826-77494 SEAL, Oil, CRANKSHAFTSEAL, Oil, CRANKSHAFT
-
1925-62706 O-RING, (.426 x .070), CRANKSHAFTO-RING, (.426 x .070), CRANKSHAFT
-
2070786A1 COUPLING ASSEMBLY, CRANKSHAFTCOUPLING ASSEMBLY, CRANKSHAFT
-
2126-76266 SEAL, COUPLINGSEAL, COUPLING
-
-27-77586A78 GASKET SETGASKET SET
