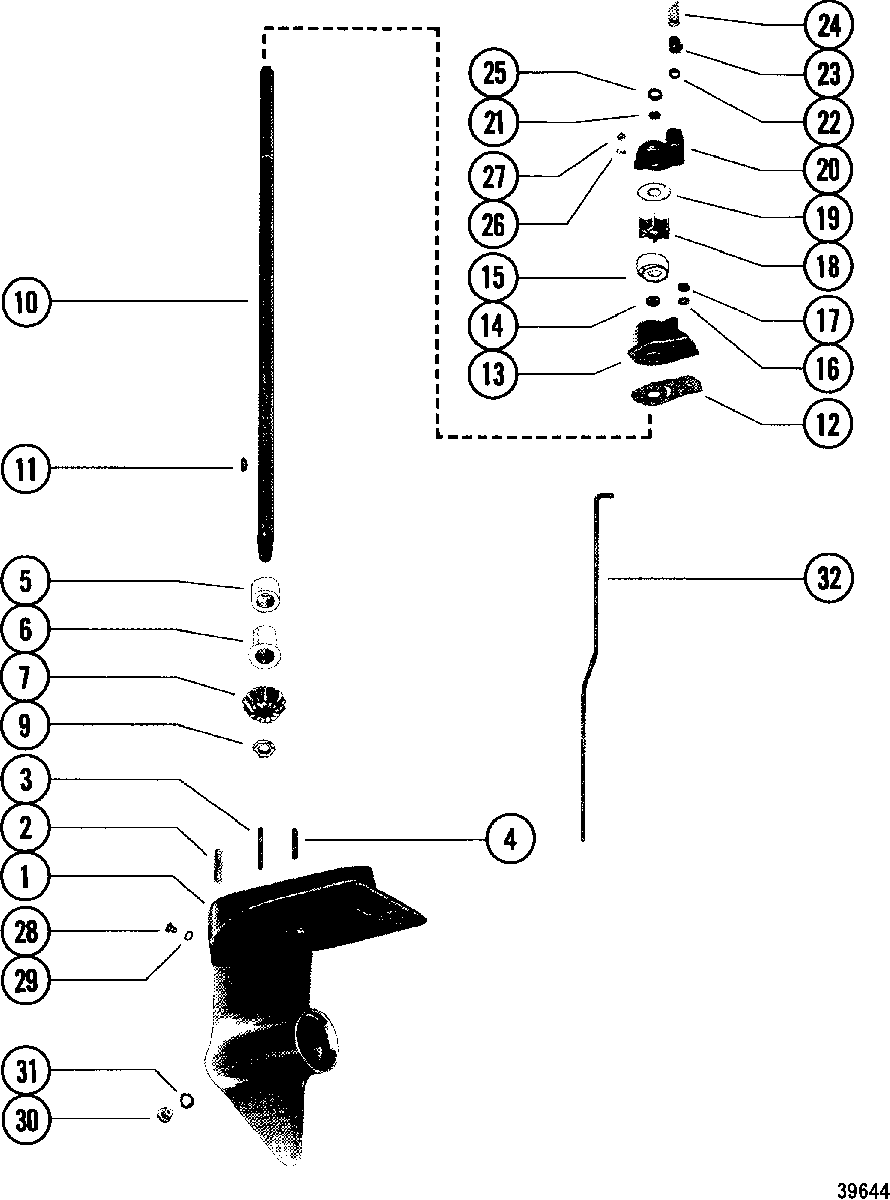

GEAR HOUSING ASSEMBLY(DRIVESHAFT) для Mercury - 40 (2 CYL. PRODUCT OF USA) 5589202 THRU 5595531
-
№АртикулНазвание
-
-1648-7811A20 GEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
-1648-7811A21 GEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
-1648-7811A20 GEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & UpGEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
-1648-7811A21 GEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & UpGEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
11648-7811A9 GEAR HOUSING ASSEMBLY, BASICGEAR HOUSING ASSEMBLY, BASIC
-
216-68927 STUD, GEAR HOUSING (2 1/8")
(SHORT SHAFT)STUD, GEAR HOUSING (2 1/8")
(SHORT SHAFT) -
216-75321 STUD, GEAR HOUSING (7 1/4")
(LONG SHAFT)STUD, GEAR HOUSING (7 1/4")
(LONG SHAFT) -
316-68928 STUD, WATER PUMP (2 1/8")STUD, WATER PUMP (2 1/8")
-
416-70741 STUD, WATER PUMP (1 1/8")STUD, WATER PUMP (1 1/8")
-
523-77428 BEARING, GEAR HOUSINGBEARING, GEAR HOUSING
-
623-90770 BUSHING, FLANGES -GEAR HOUSINGBUSHING, FLANGES -GEAR HOUSING
-
743-90796 GEAR, PinionGEAR, Pinion
-
911-20922 NUT, PINION GEARNUT, PINION GEAR
-
1045-77432 DRIVESHAFT
(SHORT SHAFT)DRIVESHAFT
(SHORT SHAFT) -
1045-77433 DRIVESHAFT
(LONG SHAFT)DRIVESHAFT
(LONG SHAFT) -
1128-8M0032835 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
1227-68939 GASKET, WATER PUMP - LOWERGASKET, WATER PUMP - LOWER
-
1346-90844A1 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1426-897153 SEAL, Oil, WATER PUMPSEAL, Oil, WATER PUMP
-
1570977T INSERT, WATER PUMPINSERT, WATER PUMP
-
1612-56681 WASHER, (.203 x .500 x .032), WATER PUMPWASHER, (.203 x .500 x .032), WATER PUMP
-
1725-74138 O-RING, WATER PUMPO-RING, WATER PUMP
-
1847-89980 IMPELLERIMPELLER
-
1968955 FACE PLATE, WATER PUMPFACE PLATE, WATER PUMP
-
2046-95965A2 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2126-30913 SEAL, Oil, WATER PUMP COVERSEAL, Oil, WATER PUMP COVER
-
2223-13127 BEARING, WATER TUBE SEALBEARING, WATER TUBE SEAL
-
2326-36558 SEAL, WATER TUBESEAL, WATER TUBE
-
2423-31792T SLEEVE, WATER TUBE GUIDESLEEVE, WATER TUBE GUIDE
-
2525-30526 RING, RUBBER - DRIVESHAFTRING, RUBBER - DRIVESHAFT
-
2612-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, WATER PUMP STUDSWASHER, (.192 x .375 x .0312) Stainless Steel, WATER PUMP STUDS
-
2711-859124 NUT, (#10-32) Stainless Steel, WATER PUMP STUDSNUT, (#10-32) Stainless Steel, WATER PUMP STUDS
-
2810-28653 SCREW, (#10-32 x 0.25), VENT - GEAR HOUSINGSCREW, (#10-32 x 0.25), VENT - GEAR HOUSING
-
2919643 WASHER, VENT SCREWWASHER, VENT SCREW
-
3010-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
3112-191833 WASHER, GREASE FILLER SCREWWASHER, GREASE FILLER SCREW
-
3272418T SHIFT SHAFT
(SHORT SHAFT)SHIFT SHAFT
(SHORT SHAFT) -
3275307 SHIFT SHAFT
(LONG SHAFT)SHIFT SHAFT
(LONG SHAFT) -
-46-90844A2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-71140A1 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-27-77586A78 GASKET SETGASKET SET
