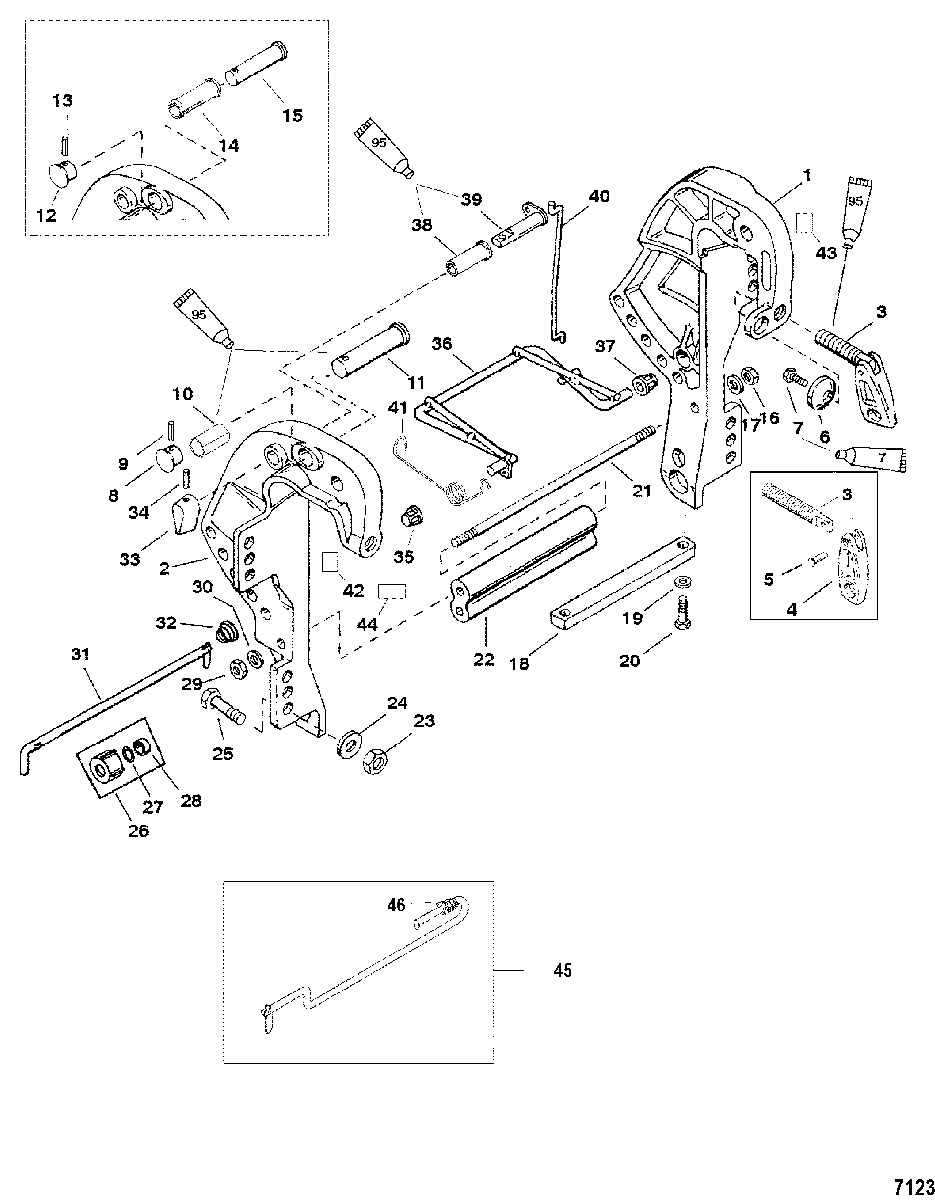

Clamp Bracket для Mercury - 40 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
13411-821773A3 CLAMP BRACKET
(Port Short)(1 Lower MTG. Hole)CLAMP BRACKET
(Port Short)(1 Lower MTG. Hole) -
13411-821773T1 CLAMP BRACKET
(Port Long)(3 Lower MTG. Holes)CLAMP BRACKET
(Port Long)(3 Lower MTG. Holes) -
23412-821774T6 CLAMP BRACKET
(Starboard Short)CLAMP BRACKET
(Starboard Short) -
23412-821774T8 CLAMP BRACKET
(Starboard Long)CLAMP BRACKET
(Starboard Long) -
310-818883A1 THUMB SCREW ASSEMBLY
(Manual)THUMB SCREW ASSEMBLY
(Manual) -
4NSS NOT SOLD SEPARATE, Handle-ManualNOT SOLD SEPARATE, Handle-Manual
-
5NSS NOT SOLD SEPARATE, Rivet-ManualNOT SOLD SEPARATE, Rivet-Manual
-
612-818884 WASHER
(Manual)WASHER
(Manual) -
710-768042 SHOULDER SCREW, Hex
(Manual)SHOULDER SCREW, Hex
(Manual) -
88224011 CAP
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)CAP
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged) -
917-25810 PIN
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)PIN
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged) -
1023-86637 BEARING
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)BEARING
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged) -
1117-8224002 PIN
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)PIN
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged) -
12822401 CAP
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged)CAP
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged) -
1317-25319 PIN, (.125 x 0.75 Inches)
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged)PIN, (.125 x 0.75 Inches)
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged) -
1423-823589 BUSHING
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged)BUSHING
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged) -
1517-8224001 PIN, Tilt Stop
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is FlangedPIN, Tilt Stop
(O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged -
1611-40140 NUT, (M10)NUT, (M10)
-
1712-4002319 WASHERWASHER
-
1897-8252711 ANODEANODE
-
1912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2010-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2116-8M0034459 STUD, (M10 x 277)STUD, (M10 x 277)
-
2223-824952 SPACERSPACER
-
2311-82671117 NUT, (.500-20)
(Long)NUT, (.500-20)
(Long) -
2311-82671117 NUT, (.500-20)
(Shirt-Top)NUT, (.500-20)
(Shirt-Top) -
2311-4013710 NUT, (M10) (M10 x 1.5)
(Short-Bottom)NUT, (M10) (M10 x 1.5)
(Short-Bottom) -
2412-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Long)WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Long) -
2412-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Short-Top)WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(Short-Top) -
2412-4002319 WASHER
(Short-Bottom)WASHER
(Short-Bottom) -
2510-814259 SCREW, (.500-20 x 4.00)
(Long)SCREW, (.500-20 x 4.00)
(Long) -
2510-814259 SCREW, (.500-20 x 4.00)
(Short-Top)SCREW, (.500-20 x 4.00)
(Short-Top) -
2510-826110 SCREW
(Short-Bottom)SCREW
(Short-Bottom) -
2619624A1 SEAL KITSEAL KIT
-
2725-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
-
2823-78861 SPACERSPACER
-
2911-40140 NUT, (M10)NUT, (M10)
-
3012-4002319 WASHERWASHER
-
3117-8M0026103 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
3224-821461 SPRINGSPRING
-
33822409 LEVER, Shallow Water DriveLEVER, Shallow Water Drive
-
3417-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
3523-824858 BUSHING, PLASTICBUSHING, PLASTIC
-
36878580 ROD, Plastic, Shallow Water DriveROD, Plastic, Shallow Water Drive
-
3723-824858 BUSHING, PlasticBUSHING, Plastic
-
3823-823812 BUSHINGBUSHING
-
39822411 ARMARM
-
40878563 LINK RODLINK ROD
-
4124-832085A1 SPRINGSPRING
-
4237-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
43NSS NOT SOLD SEPARATE, Warning DecalNOT SOLD SEPARATE, Warning Decal
-
44NSS NOT SOLD SEPARATE, Shallow Water Drive DecalNOT SOLD SEPARATE, Shallow Water Drive Decal
-
4517-853923A1 PIN
(40 Seapro)PIN
(40 Seapro) -
4624-821461 SPRING
(40 Seapro)SPRING
(40 Seapro)
