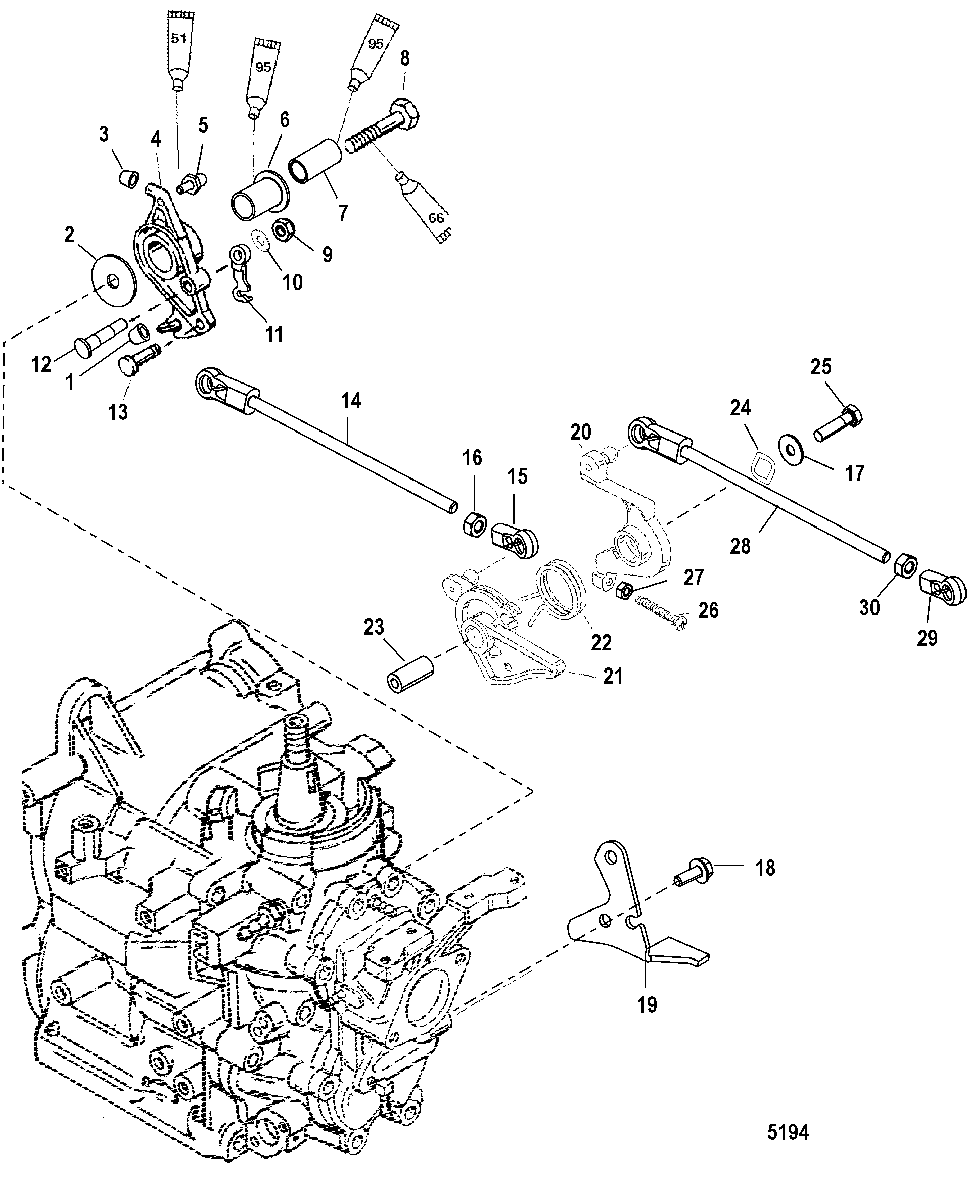

Throttle Linkage для Mercury - 40 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1822458 BUMPER, Throttle StopBUMPER, Throttle Stop
-
212-42980 WASHERWASHER
-
3822458 BUMPER, Throttle StopBUMPER, Throttle Stop
-
48M0041742 LEVER, Throttle ControlLEVER, Throttle Control
-
58235695 BALL, ThreadedBALL, Threaded
-
623-812930A1 BUSHINGBUSHING
-
7NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
810-4007180 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1012-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
11822459 RETAINER, CableRETAINER, Cable
-
1242927 INSERTINSERT
-
1317-8224561 PINPIN
-
14881227A4 LINK, Throttle ControlLINK, Throttle Control
-
15817428 SOCKETSOCKET
-
1611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1712-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1810-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
198214943 BRACKET, Throttle CableBRACKET, Throttle Cable
-
20853926 SPARK ARMSPARK ARM
-
21853925 CAM, ThrottleCAM, Throttle
-
2224-42164 SPRINGSPRING
-
2323-823807 BUSHINGBUSHING
-
2413-99611 WAVE WASHERWAVE WASHER
-
2510-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2610-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
2711-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
28881227A2 SPARK CONTROL LINK
(Use with Carburetors WME-63/64/66/67)SPARK CONTROL LINK
(Use with Carburetors WME-63/64/66/67) -
28881227A05 SPARK CONTROL LINK
(Use with Carburetors WME-97/98/99)SPARK CONTROL LINK
(Use with Carburetors WME-97/98/99) -
29817428 SOCKETSOCKET
-
3011-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
