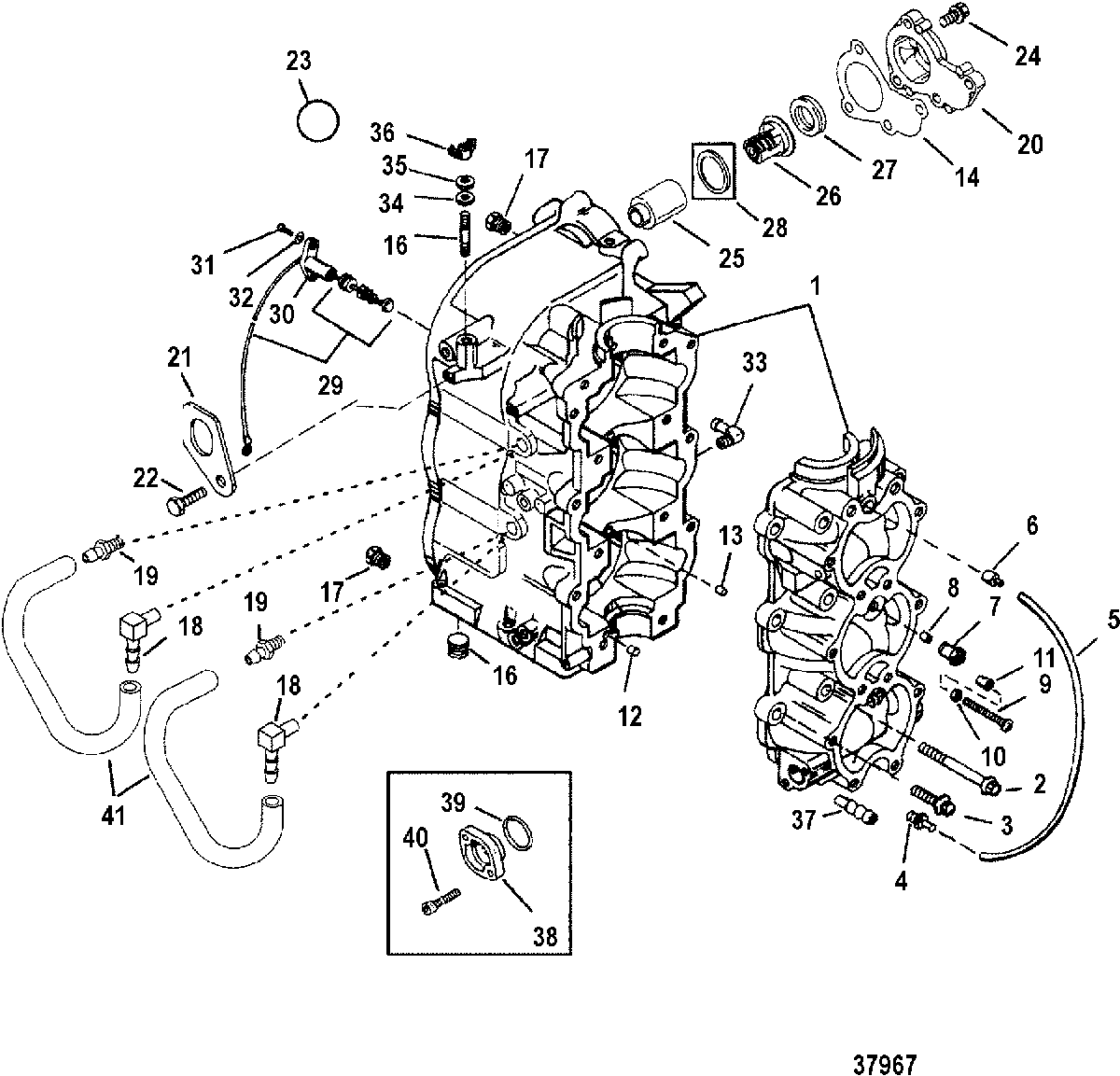

CYLINDER BLOCK AND CRANKCASE для Mercury - 40 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
12801-827953T7 CYLINDER BLOCKCYLINDER BLOCK
-
210-81742780 SCREW, (M8 x 80)SCREW, (M8 x 80)
-
310-81742730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
421-426585 CHECK VALVECHECK VALVE
-
532-892024122 TUBING, (20.00 Feet Bulk) (15 IN.)TUBING, (20.00 Feet Bulk) (15 IN.)
-
621-426232 CHECK VALVE (PRESS-IN)CHECK VALVE (PRESS-IN)
-
7812888A2 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
821-42657A4 CHECK VALVECHECK VALVE
-
910-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
1011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1142942 CAPCAP
-
1217-43044 PIN, Dowel - Without Hole (.375 x .625) (LOCATING)PIN, Dowel - Without Hole (.375 x .625) (LOCATING)
-
1317-8M0084653 PIN (BEARING RACE)PIN (BEARING RACE)
-
1427-827284 GASKETGASKET
-
1516-8161949 STUDSTUD
-
1622-185981 PLUG, Pipe (.375-18)PLUG, Pipe (.375-18)
-
1722-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
1822-19725 ELBOWELBOW
-
1921-426585 CHECK VALVECHECK VALVE
-
20827251A1 COVER
SN# 0G662183 & UpCOVER
SN# 0G662183 & Up -
20827251A1 COVER
SN# 0G662182 & BelowCOVER
SN# 0G662182 & Below -
21850897 LIFTING EYE
MANUALLIFTING EYE
MANUAL -
2210-40011149 SCREW, (M8 x 25) Stainless Steel
MANUALSCREW, (M8 x 25) Stainless Steel
MANUAL -
23NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
2410-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
25889735 CARRIERCARRIER
-
26850055001 THERMOSTAT, 43A°C (110A°F)THERMOSTAT, 43A°C (110A°F)
-
2726-854639001 SEAL
SN# 0G662183 & UpSEAL
SN# 0G662183 & Up -
2825-62701 O-RING
SN# 0G662182 & BelowO-RING
SN# 0G662182 & Below -
29787992 SENDER, TemperatureSENDER, Temperature
-
30889733 RETAINERRETAINER
-
3110-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
3212-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
3322-996642 ELBOWELBOW
-
3412-49221 WASHER, (.187 x .500 x .062) Neoprene
ELECTRICWASHER, (.187 x .500 x .062) Neoprene
ELECTRIC -
3512-69056 WASHER, (.255 x .620 x .030) Stainless Steel
ELECTRICWASHER, (.255 x .620 x .030) Stainless Steel
ELECTRIC -
3611-816872 WING NUT
ELECTRICWING NUT
ELECTRIC -
3722-56759 CONNECTOR
ELECTRICCONNECTOR
ELECTRIC -
388129962 COVER
MANUALCOVER
MANUAL -
3925-48462 O-RING, (.614 x .070)
MANUALO-RING, (.614 x .070)
MANUAL -
4010-40011108 SCREW, (M5 x 20) Stainless Steel
MANUALSCREW, (M5 x 20) Stainless Steel
MANUAL -
4132-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-828553A97 GASKET SETGASKET SET
