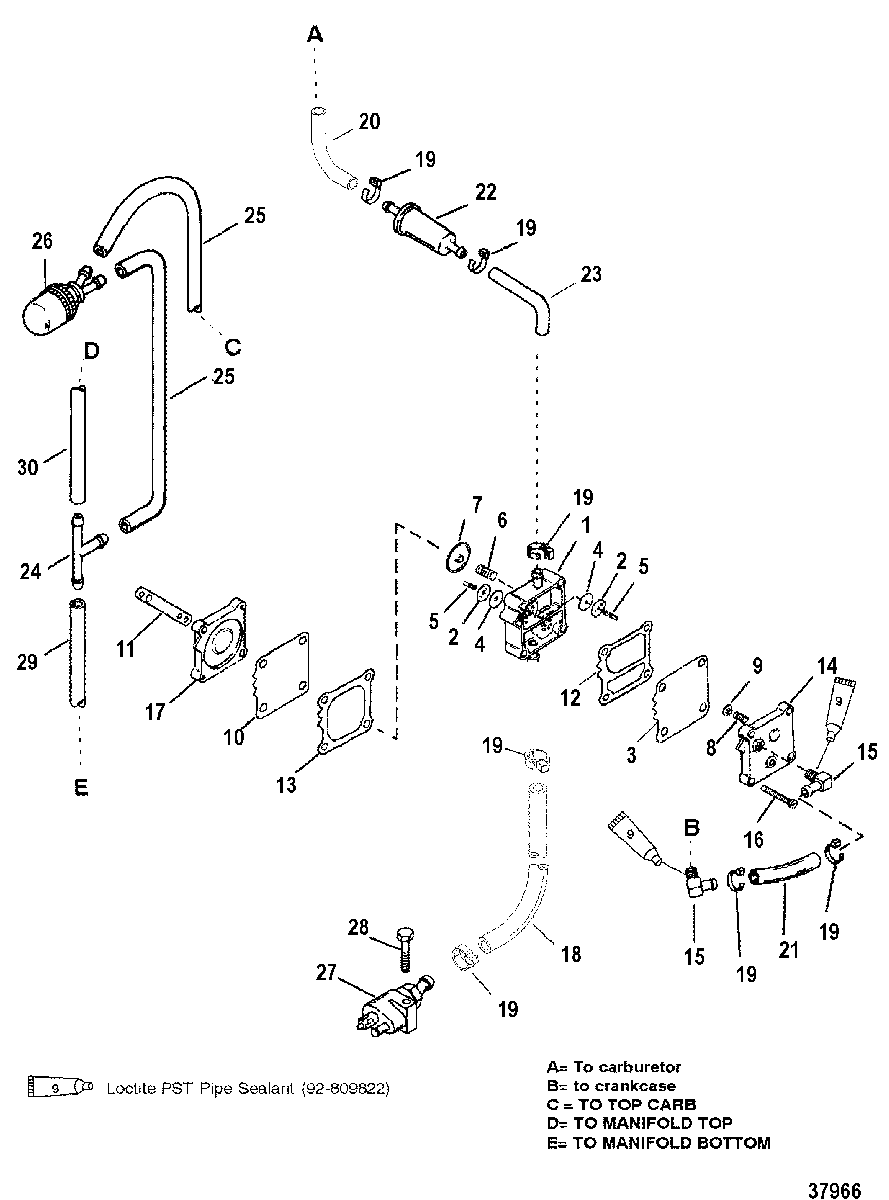

FUEL PUMP(MANUAL) для Mercury - 40 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
-14360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, Check Valve-RubberNOT SOLD SEPARATE, Check Valve-Rubber
-
5NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
6NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
7NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
8NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
9NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
10NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1127-987691 GASKETGASKET
-
12NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
13NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
14987752 PLATEPLATE
-
1522-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
1610-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1610-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
17144303 BASEBASE
-
1832-8M0108349 TUBING, (28.00 Inches Bulk) (22 IN.)TUBING, (28.00 Inches Bulk) (22 IN.)
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2032-830761 LINE, FuelLINE, Fuel
-
2132-9912878 HOSE, (.187) (26.00 Inches Bulk) (4-1/4 IN.)HOSE, (.187) (26.00 Inches Bulk) (4-1/4 IN.)
-
2235-816296Q2 FILTER, FuelFILTER, Fuel
-
2332-831949 HOSEHOSE
-
2422-59169003 FITTINGFITTING
-
2532-892024122 TUBING, (20.00 Feet Bulk) (9-1/2 IN.)TUBING, (20.00 Feet Bulk) (9-1/2 IN.)
-
26858763 PRIMER BULBPRIMER BULB
-
2722-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
2810-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2932-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
-
3032-892024122 TUBING, (20.00 Feet Bulk) (1-1/2 IN.)TUBING, (20.00 Feet Bulk) (1-1/2 IN.)
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-828553A97 GASKET SETGASKET SET
