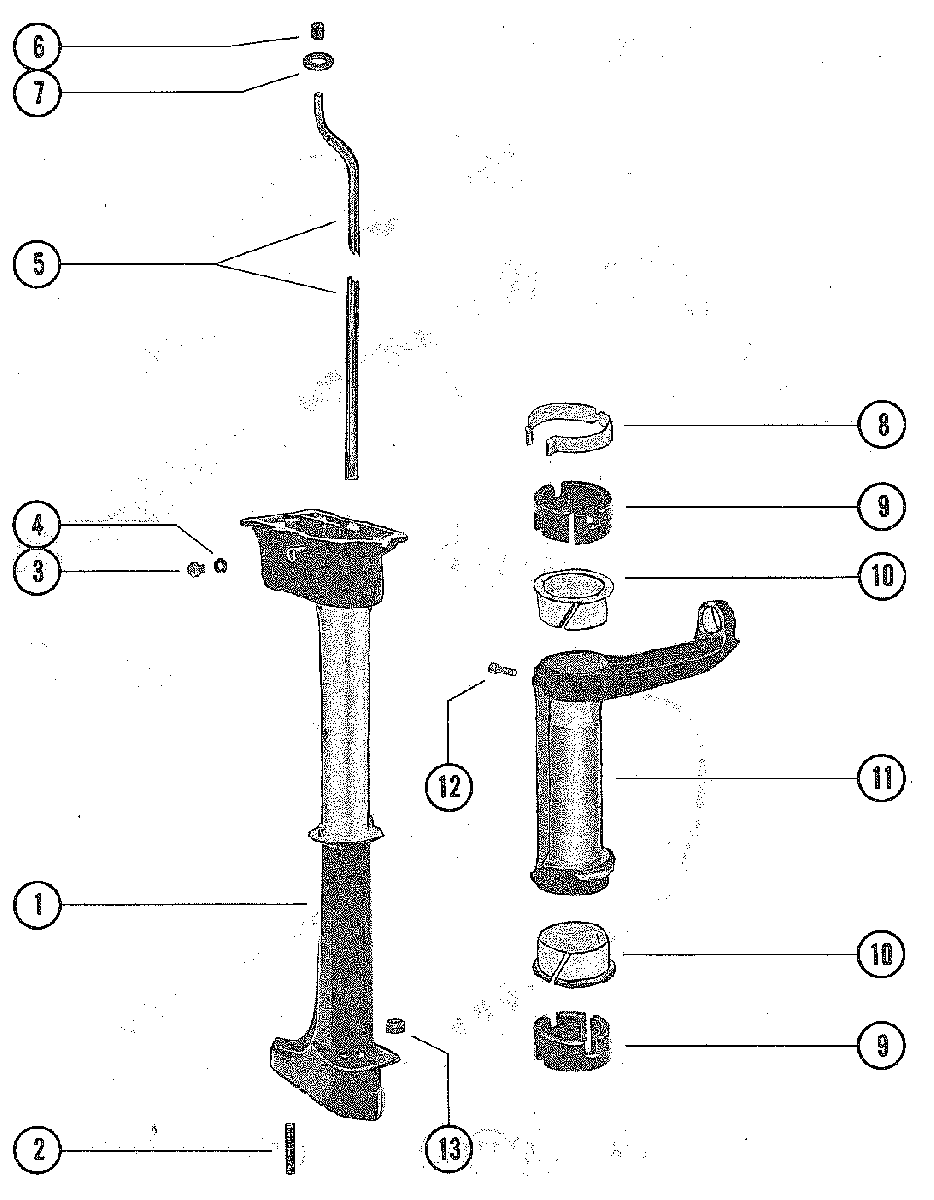

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980
-
№АртикулНазвание
-
11580-6673A2 DRIVE SHAFT HOUSING ASSEMBLY
SERIAL #9210595 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY
SERIAL #9210595 AND BELOW -
11580-6673A2 DRIVE SHAFT HOUSING ASSEMBLY
SERIAL #9210596 AND UPDRIVE SHAFT HOUSING ASSEMBLY
SERIAL #9210596 AND UP -
216-68927 STUD, DRIVE SHAFT HOUSING (SHORT SHAFT)STUD, DRIVE SHAFT HOUSING (SHORT SHAFT)
-
216-75321 STUD, DRIVE SHAFT HOUSING (LONG SHAFT)STUD, DRIVE SHAFT HOUSING (LONG SHAFT)
-
310-79953Q04 SCREW, GREASE FILLERSCREW, GREASE FILLER
-
412-191833 WASHER, GREASE FILLER SCREWWASHER, GREASE FILLER SCREW
-
532-68979 WATER TUBE (SHORT SHAFT)WATER TUBE (SHORT SHAFT)
-
532-75308 WATER TUBE (LONG SHAFT)WATER TUBE (LONG SHAFT)
-
626-36556 SEAL, WATER TUBESEAL, WATER TUBE
-
723-13127 WASHER, WATER TUBE SEALWASHER, WATER TUBE SEAL
-
868976 CLAMP, CO-PILOTCLAMP, CO-PILOT
-
988669 MOUNT, RUBBER
DRIVE SHAFT HOUSING (TOP)MOUNT, RUBBER
DRIVE SHAFT HOUSING (TOP) -
988669 MOUNT
RUBBER - DRIVE SHAFT HOUSING (BOTTOM)MOUNT
RUBBER - DRIVE SHAFT HOUSING (BOTTOM) -
1023-74308 BUSHING, RUBBER MOUNTBUSHING, RUBBER MOUNT
-
1198496A1 BRACKET ASSEMBLY, STEERING ARMBRACKET ASSEMBLY, STEERING ARM
-
1210-68918 SCREW, STEERING ARM BRACKET (1")SCREW, STEERING ARM BRACKET (1")
-
1311-82670911 NUT, GEAR HOUSING STUDNUT, GEAR HOUSING STUD
-
1375311T ADAPTOR, DRIVE SHAFT HOUSING (LONG SHAFT)ADAPTOR, DRIVE SHAFT HOUSING (LONG SHAFT)
-
1394909 BEARING BLOCK, DRIVE SHAFT (LONG SHAFT)BEARING BLOCK, DRIVE SHAFT (LONG SHAFT)
