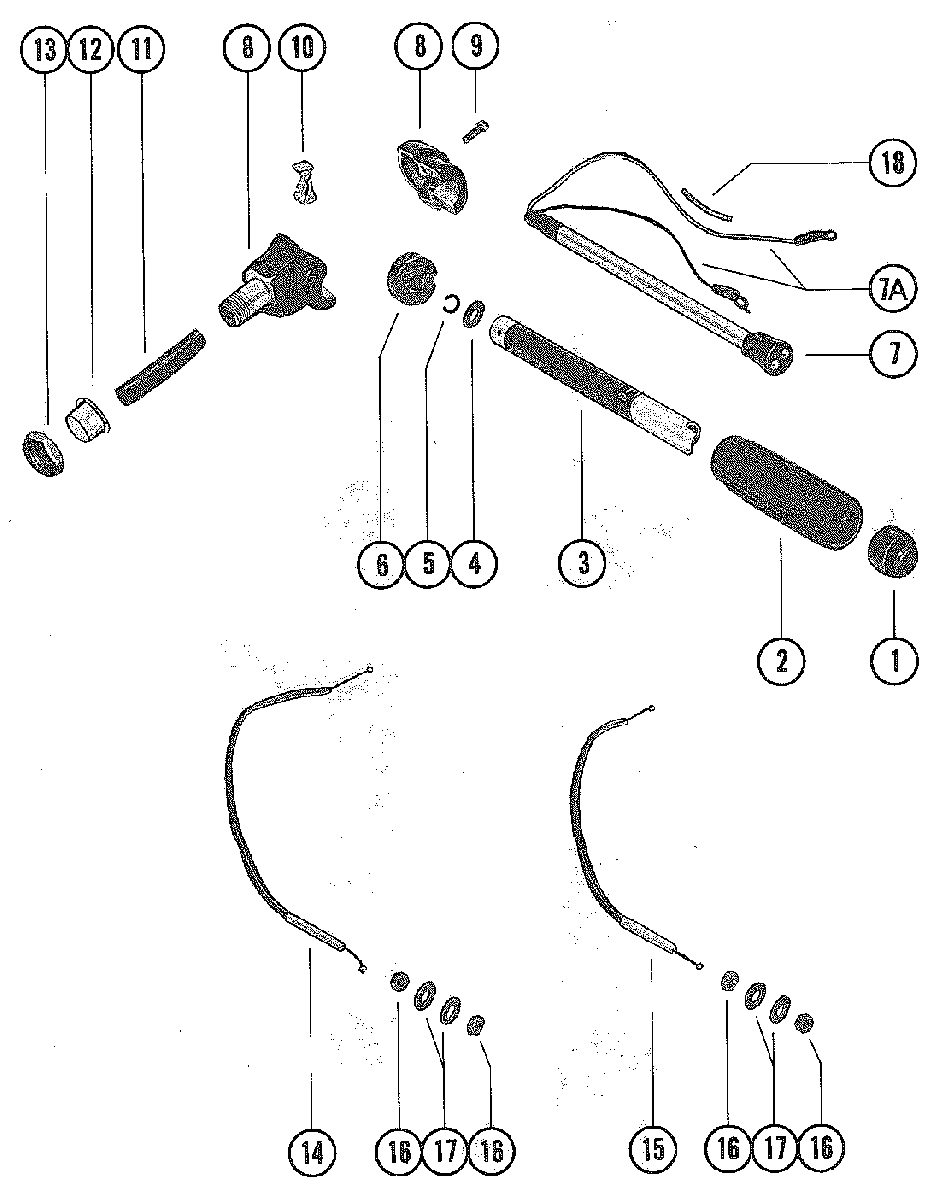

STEERING HANDLE ASSEMBLY для Mercury - 40, 4 (GNAT 2 CYL.) 9075839 THRU 9256980
-
№АртикулНазвание
-
111099A1 BOOT ASSEMBLY, HANDLEBOOT ASSEMBLY, HANDLE
-
270382 GRIP, HANDLEGRIP, HANDLE
-
370383 ARM, HANDLEARM, HANDLE
-
412-31433 WASHER, HANDLEWASHER, HANDLE
-
553-70384 RETAINING RING, HANDLERETAINING RING, HANDLE
-
670386 PULLEY, STEERING CABLEPULLEY, STEERING CABLE
-
770385 SHAFT, HANDLESHAFT, HANDLE
-
7A84-70671A1 HARNESS ASSEMBLY, STOP SWITCHHARNESS ASSEMBLY, STOP SWITCH
-
870389A2 BRACKET ASSEMBLY, HANDLEBRACKET ASSEMBLY, HANDLE
-
910-37978 SCREW, HANDLE BRACKET (3/4")SCREW, HANDLE BRACKET (3/4")
-
1070390 RETAINER, CABLERETAINER, CABLE
-
1185-708571 INSULATOR, CABLEINSULATOR, CABLE
-
1223-70391 BUSHING, HANDLE BRACKETBUSHING, HANDLE BRACKET
-
1311-73784 NUT, HANDLE BRACKETNUT, HANDLE BRACKET
-
1492791 CABLE, THROTTLE ADVANCECABLE, THROTTLE ADVANCE
-
1592791 CABLE, THROTTLE RETARDCABLE, THROTTLE RETARD
-
1611-21825 NUT, THROTTLE CABLENUT, THROTTLE CABLE
-
1712-37998 WASHER, THROTTLE CABLEWASHER, THROTTLE CABLE
-
1832-9912688 SLEEVE, STOP SWITCH HARNESSSLEEVE, STOP SWITCH HARNESS
