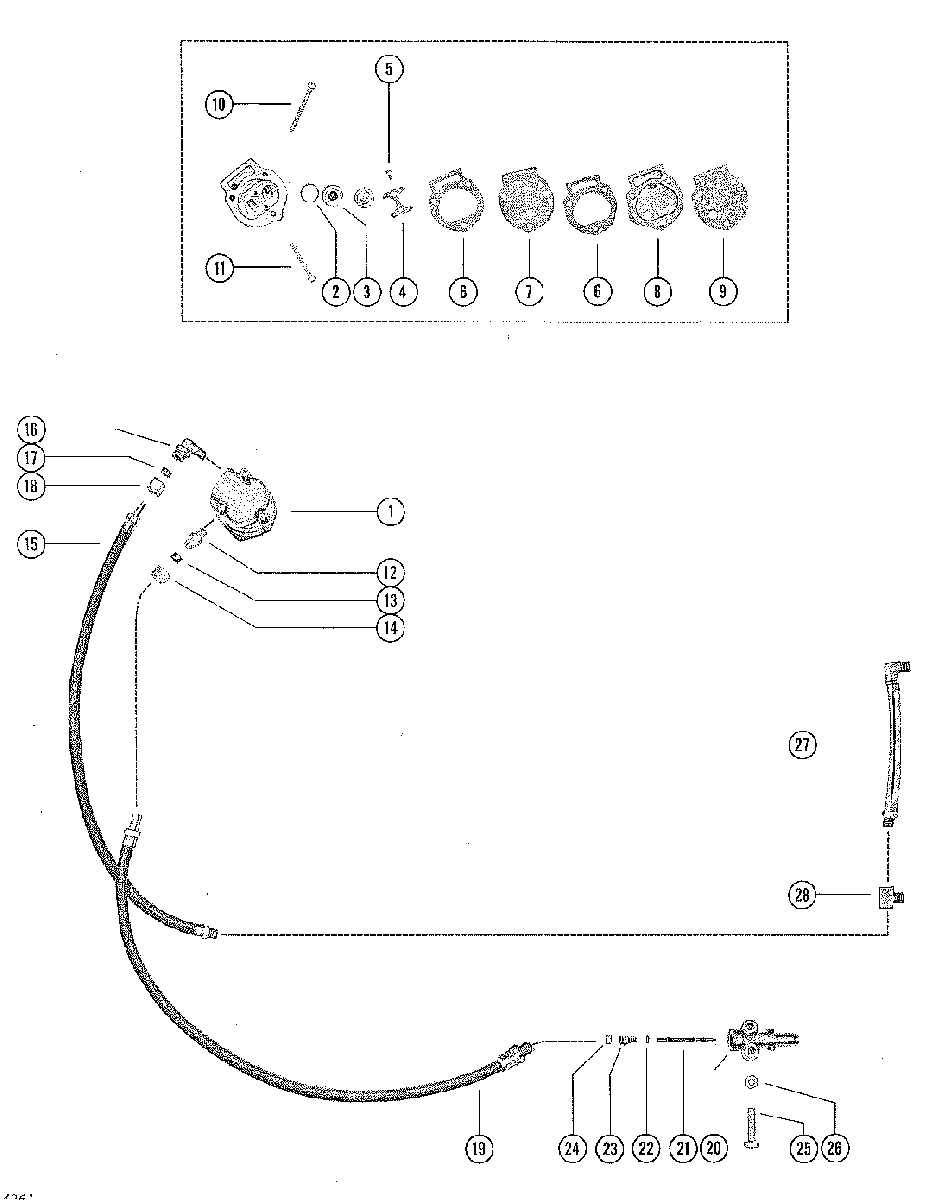

FUEL PUMP ASSEMBLY для Mercury - 400 1279685 THRU 1476509
-
№АртикулНазвание
-
129178A2 FUEL PUMP ASSEMBLY
SERIAL 00000000-01362197FUEL PUMP ASSEMBLY
SERIAL 00000000-01362197 -
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECKVALVE, CHECK
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
-22-390721 PLUG, PIPE - FUEL PUMPPLUG, PIPE - FUEL PUMP
-
130269A2 FUEL PUMP ASSEMBLY
SERIAL 01362198-09999999FUEL PUMP ASSEMBLY
SERIAL 01362198-09999999 -
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECKVALVE, CHECK
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
823008 COVER, FUEL PUMPCOVER, FUEL PUMP
-
927-30276 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
1010-29126 SCREW, FUEL PUMP MOUNTING (1 3/4")SCREW, FUEL PUMP MOUNTING (1 3/4")
-
1110-29029 SCREW, FUEL PUMP MOUNTING (1 1/2")SCREW, FUEL PUMP MOUNTING (1 1/2")
-
1222-22949 CONNECTOR, PUMP INLET TO FUEL LINECONNECTOR, PUMP INLET TO FUEL LINE
-
1322-22946 SLEEVE, RUBBER - CONNECTORSLEEVE, RUBBER - CONNECTOR
-
1422-22948 NUT, CONNECTOR TO FUELK LINENUT, CONNECTOR TO FUELK LINE
-
1532-30035 FUEL LINE, FUEL PUMP TO LOWER FILTERFUEL LINE, FUEL PUMP TO LOWER FILTER
-
1622-22995 ELBOW, FUEL PUMP INLETELBOW, FUEL PUMP INLET
-
1722-22946 SLEEVE, RUBBERSLEEVE, RUBBER
-
1822-22948 NUT, ELBOWNUT, ELBOW
-
1932-30036 FUEL LINE, FUEL PUMP TO ADAPTORFUEL LINE, FUEL PUMP TO ADAPTOR
-
2022833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2123069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2225-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2324-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2430188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2510-20784 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
2611-24652 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
--22-59351 ELBOW, UPPER FILTER TO FUEL LINE
USE WITH 29178A2 FUEL PUMPELBOW, UPPER FILTER TO FUEL LINE
USE WITH 29178A2 FUEL PUMP -
--32-30040 FUEL LINE, UPPER TO LOWER FILTER
USE WITH 29178A2 FUEL PUMPFUEL LINE, UPPER TO LOWER FILTER
USE WITH 29178A2 FUEL PUMP -
2732-38527 FUEL LINE, UPPER TO LOWER FILTER
(USE WITH 30269A2 FUEL PUMPFUEL LINE, UPPER TO LOWER FILTER
(USE WITH 30269A2 FUEL PUMP -
2822-25956 TEE ASSEMBLY, LOWER FILTER
(USE WITH 30269A2 FUEL PUMPTEE ASSEMBLY, LOWER FILTER
(USE WITH 30269A2 FUEL PUMP
