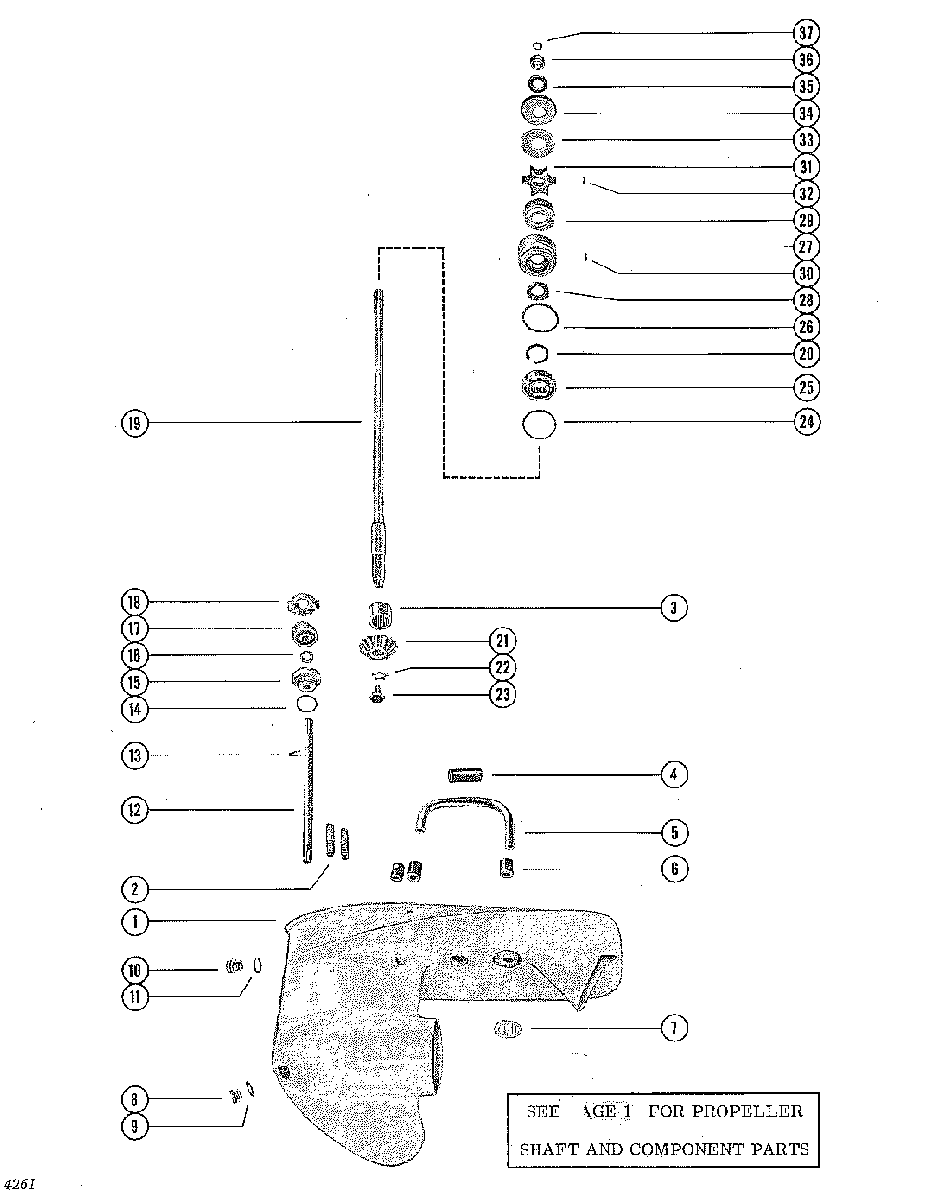

GEAR HOUSING ASSEMBLY, COMPLETE(PAGE 1) для Mercury - 400 1279685 THRU 1476509
-
№АртикулНазвание
-
-1603-1868A2 GEAR HOUSING ASSEMBLY, COMPLETE - SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE - SEE NOTE BELOW
-
11603-1868A4 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSINGSTUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
-
331-62091T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
423-23651 SLEEVE, WATER INLET TUBESLEEVE, WATER INLET TUBE
-
532-23652 TUBE, WATER INLET - LOWERTUBE, WATER INLET - LOWER
-
626-20232 SEAL, WATER TUBESEAL, WATER TUBE
-
735-23654 SCREEN, WATER INTAKE - GEAR HOUSINGSCREEN, WATER INTAKE - GEAR HOUSING
-
-27-31367 GASKET, WATER INTAKE SCREEN TO HOUSINGGASKET, WATER INTAKE SCREEN TO HOUSING
-
810-79953Q04 SCREW, GREASE FILLER AND FLUSHING HOLESCREW, GREASE FILLER AND FLUSHING HOLE
-
912-191833 WASHER, GREASE FILLER AND FLUSHING HOLE SCREWWASHER, GREASE FILLER AND FLUSHING HOLE SCREW
-
1010-28653 SCREW, GEAR HOUSING VENTSCREW, GEAR HOUSING VENT
-
1119643 WASHER, GEAR HOUSING VENT SCREWWASHER, GEAR HOUSING VENT SCREW
-
1225136 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
1353-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
1425-25439 "O" RING, SHAFT SHAFT BUSHING"O" RING, SHAFT SHAFT BUSHING
-
1523-46284A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
1626-892361 OIL SEALOIL SEAL
-
1752918 CAM, LOWER - REVERSE LOCKINGCAM, LOWER - REVERSE LOCKING
-
1852919 CAM, UPPER - REVERSECAM, UPPER - REVERSE
-
1945-29617A1 DRIVE SHAFT ASSEMBLYDRIVE SHAFT ASSEMBLY
-
2053-29116 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
2143-20834 GEAR, PINIONGEAR, PINION
-
2214-29163 TAB WASHER, PINION GEAR SCREWTAB WASHER, PINION GEAR SCREW
-
2310-20925 SCREW, PINION GEAR TO DRIVE SHAFTSCREW, PINION GEAR TO DRIVE SHAFT
-
2415-20929A1 SHIM, DRIVE SHAFT BEARING TO HOUSINGSHIM, DRIVE SHAFT BEARING TO HOUSING
-
2530-72961 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
2625-26722 "O" RING, WATER PUMP CARTRIDGE"O" RING, WATER PUMP CARTRIDGE
-
2746-29117A1 WATER PUMP CARTRIDGE ASSEMLBYWATER PUMP CARTRIDGE ASSEMLBY
-
2826-90562 OIL SEALOIL SEAL
-
2928091 INSERT, WATER PUMP CARTRIDGEINSERT, WATER PUMP CARTRIDGE
-
3028-28657 KEY, WATER PUMP CARTRIDGEKEY, WATER PUMP CARTRIDGE
-
3147-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3228-8M0032837 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
3320272 PLATE, OUTLET - WATER PUMP COVERPLATE, OUTLET - WATER PUMP COVER
-
3420270A2 WATER PUMP COVER ASSEMBLYWATER PUMP COVER ASSEMBLY
-
3526-23517 OIL SEALOIL SEAL
-
3625-20273 RING, RUBBER - CENTRIFUGAL SLINGERRING, RUBBER - CENTRIFUGAL SLINGER
-
3725-29619 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
