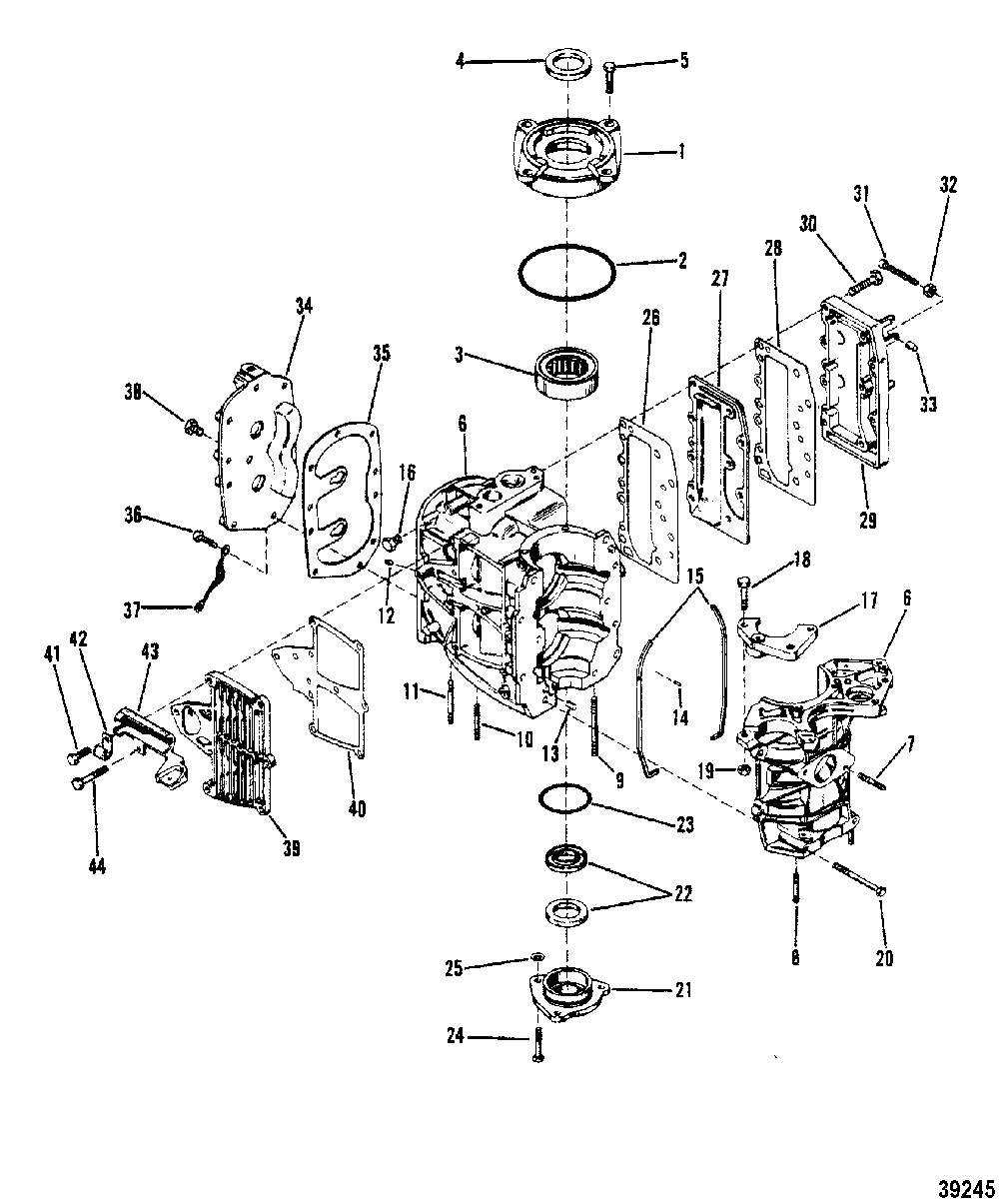

CYLINDER BLOCK CRANKCASE AND COVERS для Mercury - 402, 40 (2 CYL.) 5556230 & Up
-
№АртикулНазвание
-
11151-4732A1 END CAP ASSEMBLY, UPPER
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowEND CAP ASSEMBLY, UPPER
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
11167-8277A1 END CAP ASSEMBLY, Upper
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpEND CAP ASSEMBLY, Upper
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
225-47254 O-RING, UPPER END CAPO-RING, UPPER END CAP
-
331-62066T BEARING, Roller, UPPER END CAPBEARING, Roller, UPPER END CAP
-
426-41953 SEAL, UPPER END CAPSEAL, UPPER END CAP
-
510-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP MOUNTINGSCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP MOUNTING
-
6851-7940A6 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
716-64936 STUD, CARBURETOR MOUNTING (1-1/4")STUD, CARBURETOR MOUNTING (1-1/4")
-
816-68165 STUD (1-5/8")STUD (1-5/8")
-
916-87901 STUD (4-3/8")STUD (4-3/8")
-
1016-68166 STUD, (.312 x 2.125)STUD, (.312 x 2.125)
-
1116-68167 STUD, (.312-18/.312-24 x 2.560)STUD, (.312-18/.312-24 x 2.560)
-
1266517 RESTRICTOR, CYLINDER BLOCK (BLEED)RESTRICTOR, CYLINDER BLOCK (BLEED)
-
1317-23784 PIN, Dowel, CRANKCASE TO CYLINDER BLOCKPIN, Dowel, CRANKCASE TO CYLINDER BLOCK
-
1417-20323 PIN, Dowel, CYLINDER BLOCK TO MAIN BEARINGPIN, Dowel, CYLINDER BLOCK TO MAIN BEARING
-
1527-55158 GASKET, SEALING - CYLINDER BLOCKGASKET, SEALING - CYLINDER BLOCK
-
1622-328022 PLUG, Pipe (.125-27), CYLINDER BLOCK
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & BelowPLUG, Pipe (.125-27), CYLINDER BLOCK
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below -
1762064 BRACKET, STARTER MOTORBRACKET, STARTER MOTOR
-
1810-21339 SCREW, (.312-24 x 1.375)SCREW, (.312-24 x 1.375)
-
1911-29250 NUT, (.312-24), STARTER MOTOR BRACKET SCREWNUT, (.312-24), STARTER MOTOR BRACKET SCREW
-
2010-73657 SCREW, (.312-18 x 1.50)SCREW, (.312-18 x 1.50)
-
2010-63328 SCREW, (.312-18 x 3.00)SCREW, (.312-18 x 3.00)
-
2010-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
211152-7267A1 END CAP ASSEMBLY, LowerEND CAP ASSEMBLY, Lower
-
2226-41953 SEAL, LOWER END CAPSEAL, LOWER END CAP
-
2325-823683 O-RING, LOWER END CAPO-RING, LOWER END CAP
-
2410-63365 SCREW, END CAP TO CYLINDER BLOCK (1-1/2")SCREW, END CAP TO CYLINDER BLOCK (1-1/2")
-
2525-64068 O-RING, LOWER END CAP SCREWO-RING, LOWER END CAP SCREW
-
2627-854891 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2755190 PLATE, DIVIDER - EXHAUST MANIFOLDPLATE, DIVIDER - EXHAUST MANIFOLD
-
2827-854882 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
29551572 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
3010-60411 SCREW, (1.25)SCREW, (1.25)
-
3010-31984 SCREW (1-3/8")SCREW (1-3/8")
-
3110-64021 SCREW, ADJUSTING - EXHAUST COVER (1-7/8")SCREW, ADJUSTING - EXHAUST COVER (1-7/8")
-
3211-64015 NUT, (.250-20), ADJUSTING SCREWNUT, (.250-20), ADJUSTING SCREW
-
3326852 CAP, Nylon, ADJUSTING SCREWCAP, Nylon, ADJUSTING SCREW
-
341024-91101 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
3527-85490 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
3610-76213 SCREW, (.250-20 x 1.120)SCREW, (.250-20 x 1.120)
-
3746933A3 STRAP ASEMBLY, Ground, POWERHEAD TO BOTTOM COWLSTRAP ASEMBLY, Ground, POWERHEAD TO BOTTOM COWL
-
3822-328022 PLUG, Pipe (.125-27), CYLINDER BLOCK COVERPLUG, Pipe (.125-27), CYLINDER BLOCK COVER
-
3963970 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
4027-552791 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
4110-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")SCREW, TRANSFER PORT COVER MOUNTING (1")
-
4254-54457 J CLIP, COIL HARNESSJ CLIP, COIL HARNESS
-
4392059 BRACKET, FUEL FILTER AND HARNESSBRACKET, FUEL FILTER AND HARNESS
-
4410-76213 SCREW, (.250-20 x 1.120), BRACKET MOUNTINGSCREW, (.250-20 x 1.120), BRACKET MOUNTING
-
-27-78028A78 GASKET SETGASKET SET
-
-61779A87 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
