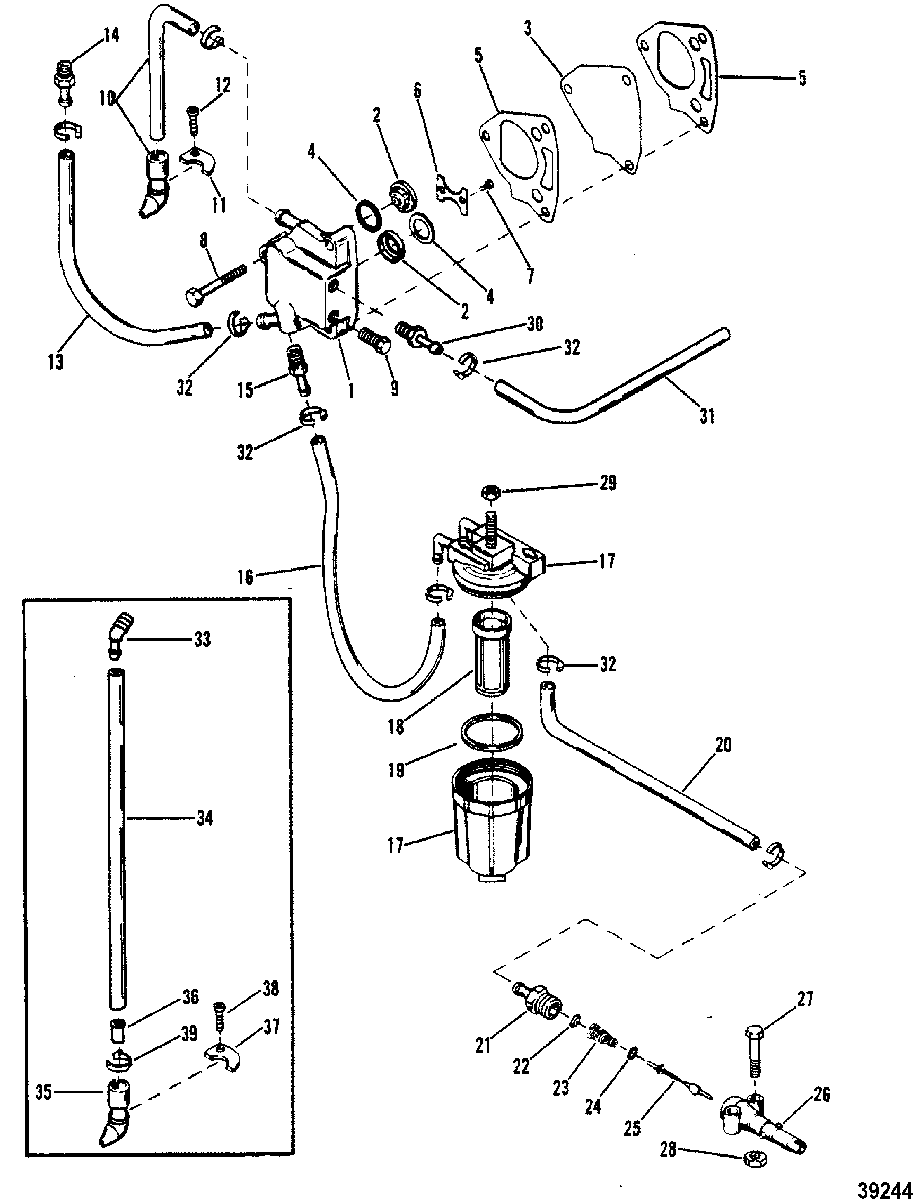

FUEL PUMP AND FUEL LINE для Mercury - 402, 40 (2 CYL.) 5556230 & Up
-
№АртикулНазвание
-
162973A4 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-8M0084275 CHECK VALVE ASSEMLBYCHECK VALVE ASSEMLBY
-
355278A1 DIAPHRAGM KITDIAPHRAGM KIT
-
4NSS NOT SOLD SEPARATE, GASKET, CHECK VALVENOT SOLD SEPARATE, GASKET, CHECK VALVE
-
5NSS NOT SOLD SEPARATE, GASKET, FUEL PUMPNOT SOLD SEPARATE, GASKET, FUEL PUMP
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
810-69093 SCREW, (.250-20 x 1.50), FUEL PUMP MOUNTINGSCREW, (.250-20 x 1.50), FUEL PUMP MOUNTING
-
922-328022 PLUG, Pipe (.125-27), FUEL PUMPPLUG, Pipe (.125-27), FUEL PUMP
-
1069791A2 HOSE AND NOZZLE, TELL TALE
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & BelowHOSE AND NOZZLE, TELL TALE
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below -
1166849 CLAMP, HOSE AND NOZZLE
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & BelowCLAMP, HOSE AND NOZZLE
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below -
1210-48409 SCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & BelowSCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below -
1332-8M0108355 HOSE, BLOCK TO PUMP (11")
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & BelowHOSE, BLOCK TO PUMP (11")
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below -
1422-291112 CONNECTOR, BLOCK TO FUEL PUMP HOSE
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & BelowCONNECTOR, BLOCK TO FUEL PUMP HOSE
SN# USA-6228284/Australia-8075392/Belgium-9365540/Canada-7202537 & Below -
1422-328022 PLUG, Pipe (.125-27), CYLINDER BLOCK
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpPLUG, Pipe (.125-27), CYLINDER BLOCK
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
1522-64705 FITTING, PUMP INLETFITTING, PUMP INLET
-
1632-8M0108355 LINE, (57.00 Inches Bulk), FUEL FILTER TO PUMP (9")LINE, (57.00 Inches Bulk), FUEL FILTER TO PUMP (9")
-
1735-889527A07 FILTER ASSEMBLY, FuelFILTER ASSEMBLY, Fuel
-
1835-87946Q04 FILTER ASSEMBLYFILTER ASSEMBLY
-
1925-897536 SEAL, FUEL FILTERSEAL, FUEL FILTER
-
2032-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL FILTER (11")LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL FILTER (11")
-
2122-63187 FITTING, Barb (.250-18), FUEL LINE TO ADAPTORFITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
-
2230188 WASHER, ADAPTORWASHER, ADAPTOR
-
2324-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2425-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
2523069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2622833 ADAPTOR, CHECK UNIT (FUEL PUMP)ADAPTOR, CHECK UNIT (FUEL PUMP)
-
2710-56500 SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWLSCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
-
2811-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
2911-400212 NUT, (M6) Stainless Steel, FUEL FILTERNUT, (M6) Stainless Steel, FUEL FILTER
-
3022-64705 FITTING, PUMP OUTLETFITTING, PUMP OUTLET
-
3132-8M0108355 LINE, (57.00 Inches Bulk), PUMP TO CARBURETOR (12-3/4")LINE, (57.00 Inches Bulk), PUMP TO CARBURETOR (12-3/4")
-
3254-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
3322-782792 ELBOW, TELL TALE HOSE TO BLOCK
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpELBOW, TELL TALE HOSE TO BLOCK
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
3432-7568058 HOSE, TELL TALE (6")
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpHOSE, TELL TALE (6")
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
3569791 NOZZLE, TELL TALE HOSE TO COWL
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpNOZZLE, TELL TALE HOSE TO COWL
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
3623-90882 SLEEVE, NOZZLE
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpSLEEVE, NOZZLE
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
3766849 CLAMP, NOZZLE
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpCLAMP, NOZZLE
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
3810-48409 SCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpSCREW, (#10-16 x .625) Stainless Steel, CLAMP TO BOTTOM COWL
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
3956762 TIE STRAP, (4.00 Inches), NOZZLE
SN# USA-6228285/Belgium-9365541/Canada-7202538 & UpTIE STRAP, (4.00 Inches), NOZZLE
SN# USA-6228285/Belgium-9365541/Canada-7202538 & Up -
-27-78028A78 GASKET SETGASKET SET
