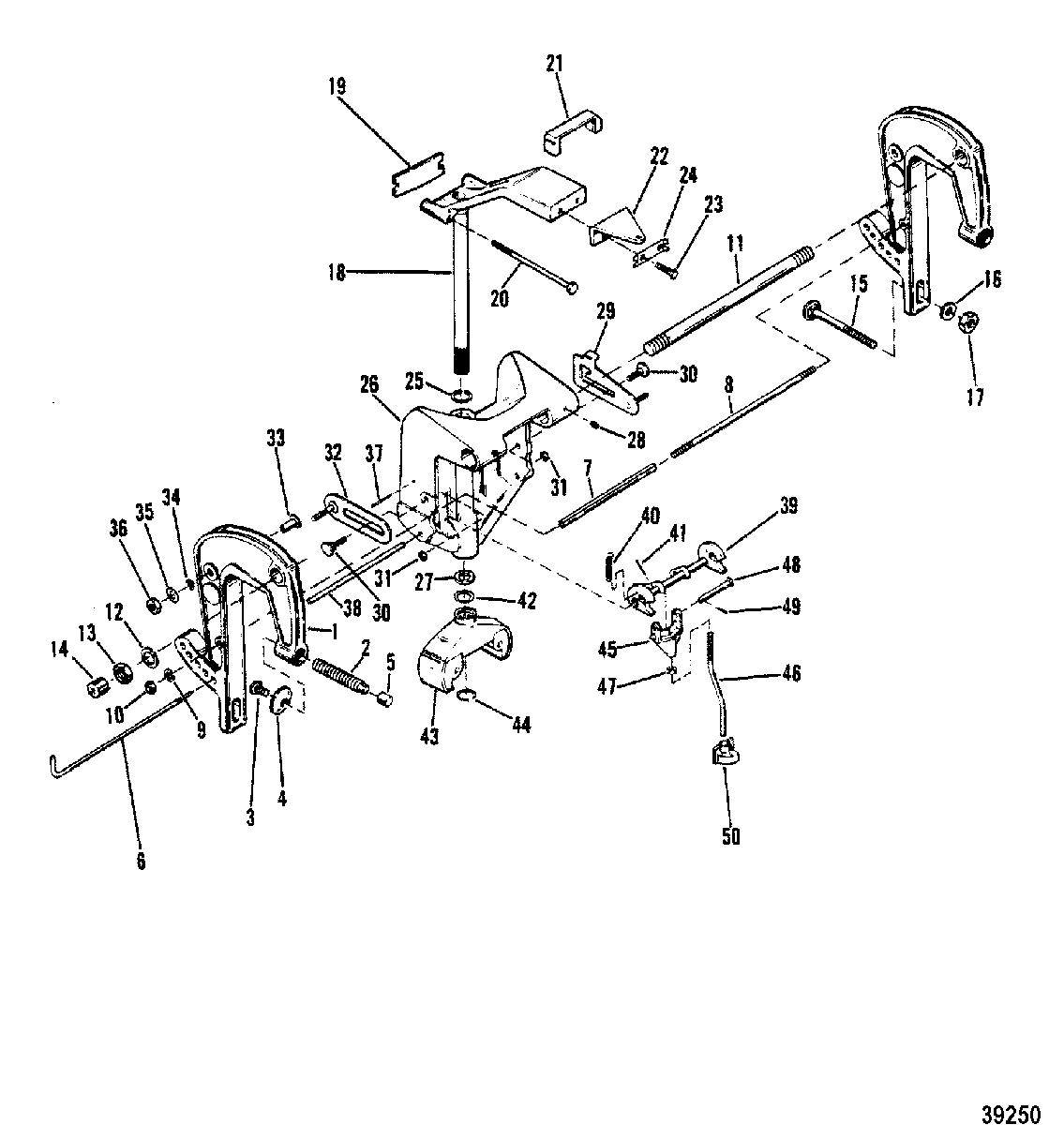

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 402, 40 (2 CYL.) 8064750 & Up
-
№АртикулНазвание
-
11427-5611A5 CLAMP BRACKET ASSEMBLY
(MANUAL)CLAMP BRACKET ASSEMBLY
(MANUAL) -
11427-5611A4 CLAMP BRACKET ASSEMBLY
(ELECTRIC)CLAMP BRACKET ASSEMBLY
(ELECTRIC) -
210-90470A3 THUMB SCREW ASSEMBLY
(MANUAL)THUMB SCREW ASSEMBLY
(MANUAL) -
210-78492A1 THUMB SCREW ASSEMBLY
(ELECTRIC)THUMB SCREW ASSEMBLY
(ELECTRIC) -
310-78495 SCREW, (.312-24 x .680), WASHER TO THUMB SCREWSCREW, (.312-24 x .680), WASHER TO THUMB SCREW
-
412-78493 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
575043 CAP, THUMB SCREW
(MANUAL)CAP, THUMB SCREW
(MANUAL) -
617-8M0026068 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
723-59623 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
816-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
913-26993 LOCKWASHER, (.312), CLAMP BRACKET STUDLOCKWASHER, (.312), CLAMP BRACKET STUD
-
1011-28770 NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUDNUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
-
118M0041936 TILT TUBE, CLAMP BRACKET TO SWIVEL BRACKETTILT TUBE, CLAMP BRACKET TO SWIVEL BRACKET
-
1212-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKETWASHER, CLAMP BRACKET TO SWIVEL BRACKET
-
1311-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
1453078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
1510-68298 BOLT, (.375-16 x 3.250)BOLT, (.375-16 x 3.250)
-
1612-46765 WASHER, CLAMP BRACKET BOLT (LOWER)WASHER, CLAMP BRACKET BOLT (LOWER)
-
1711-82671112 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1888798A23 SWIVEL PIN ASSEMBLY
MANUAL-SHORT SHAFTSWIVEL PIN ASSEMBLY
MANUAL-SHORT SHAFT -
1888798A24 SWIVEL PIN ASSEMBLY
MANUAL-LONG SHAFTSWIVEL PIN ASSEMBLY
MANUAL-LONG SHAFT -
1869540A3 SWIVEL PIN ASSEMBLY
ELECTRIC-SHORT SHAFTSWIVEL PIN ASSEMBLY
ELECTRIC-SHORT SHAFT -
1869540A4 SWIVEL PIN ASSEMBLY
ELECTRIC-LONG SHAFTSWIVEL PIN ASSEMBLY
ELECTRIC-LONG SHAFT -
1930711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
2010-66897 BOLT, (.437-20 x 5.250), UPPER MOUNT TO STEERING ARMBOLT, (.437-20 x 5.250), UPPER MOUNT TO STEERING ARM
-
2162297 BUMPER, STEERING ARM
MANUALBUMPER, STEERING ARM
MANUAL -
2276535T BRACKET, RIDE-GUIDE ATTACHING
MANUALBRACKET, RIDE-GUIDE ATTACHING
MANUAL -
2310-34352 SCREW, (.375-24 x .875), BRACKET TO STEERING ARM
MANUALSCREW, (.375-24 x .875), BRACKET TO STEERING ARM
MANUAL -
2476533 STRAP, BRACKET SCREW
MANUALSTRAP, BRACKET SCREW
MANUAL -
2512-52865 WASHER, SWIVEL PINWASHER, SWIVEL PIN
-
261481-7656A1 SWIVEL BRACKET
(SHORT SHAFT)SWIVEL BRACKET
(SHORT SHAFT) -
261480-7655A1 SWIVEL BRACKET
(LONG SHAFT)SWIVEL BRACKET
(LONG SHAFT) -
2726-32911 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
2822-74036 FITTING, Grease, SWIVEL BRACKETFITTING, Grease, SWIVEL BRACKET
-
2947913A2 LEVER ASSEMBLY, TILT LOCK - PORT SIDELEVER ASSEMBLY, TILT LOCK - PORT SIDE
-
3010-69087 SCREW, (.312-24 x .880)SCREW, (.312-24 x .880)
-
3111-29250 NUT, (.312-24), TILT LOCK AND STOP LEVER SCREWNUT, (.312-24), TILT LOCK AND STOP LEVER SCREW
-
3247912A2 LEVER ASSEMBLY, TILT TOP - STARBOARD SIDELEVER ASSEMBLY, TILT TOP - STARBOARD SIDE
-
3323-47911 BUSHING, TILT LOCK AND STOP LEVERBUSHING, TILT LOCK AND STOP LEVER
-
3413-34632 WASHER, WAVE - TILT LOCK AND STOP LEVERWASHER, WAVE - TILT LOCK AND STOP LEVER
-
3512-56720 WASHER, (.330 x .750 x .060) Stainless Steel, TILT LOCK AND STOP LEVERWASHER, (.330 x .750 x .060) Stainless Steel, TILT LOCK AND STOP LEVER
-
3611-29250 NUT, (.312-24)NUT, (.312-24)
-
3717-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
3856349 SHAFT, REVERSE LOCK TO SWIVEL BRACKETSHAFT, REVERSE LOCK TO SWIVEL BRACKET
-
3987430 LOCK ASSEMBLY, Reverse
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowLOCK ASSEMBLY, Reverse
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
3914664A3 LOCK ASSEMBLY, Reverse
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpLOCK ASSEMBLY, Reverse
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
4024-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
4118-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4212-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
4377416T1 YOKE, BottomYOKE, Bottom
-
4453-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
4559722 ROD END, PUSH ROD
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowROD END, PUSH ROD
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
4589813 ROD END, PUSH ROD
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpROD END, PUSH ROD
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
4659721 ROD, PUSH - REVERSE LOCK
(SHORT SHAFT) SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowROD, PUSH - REVERSE LOCK
(SHORT SHAFT) SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
4659720 ROD, PUSH - REVERSE LOCK
(LONG SHAFT) SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowROD, PUSH - REVERSE LOCK
(LONG SHAFT) SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
4643412A2 ROD, PUSH - REVERSE LOCK
(SHORT SHAFT) SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpROD, PUSH - REVERSE LOCK
(SHORT SHAFT) SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
4643413A2 ROD, PUSH - REVERSE LOCK
(LONG SHAFT) SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpROD, PUSH - REVERSE LOCK
(LONG SHAFT) SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
4711-28770 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & BelowNUT, (.312-24) Stainless Steel, JAM - PUSH ROD
SN# USA-5823917/Australia-8070639/Belgium-9298955/Canada-7169337 & Below -
4711-28770 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & UpNUT, (.312-24) Stainless Steel, JAM - PUSH ROD
SN# USA-5823918/Australia-8070640/Belgium-9298956/Canada-7169338 & Up -
4817-72524 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
4918-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
50933361 GUIDE, PUSH RODGUIDE, PUSH ROD
