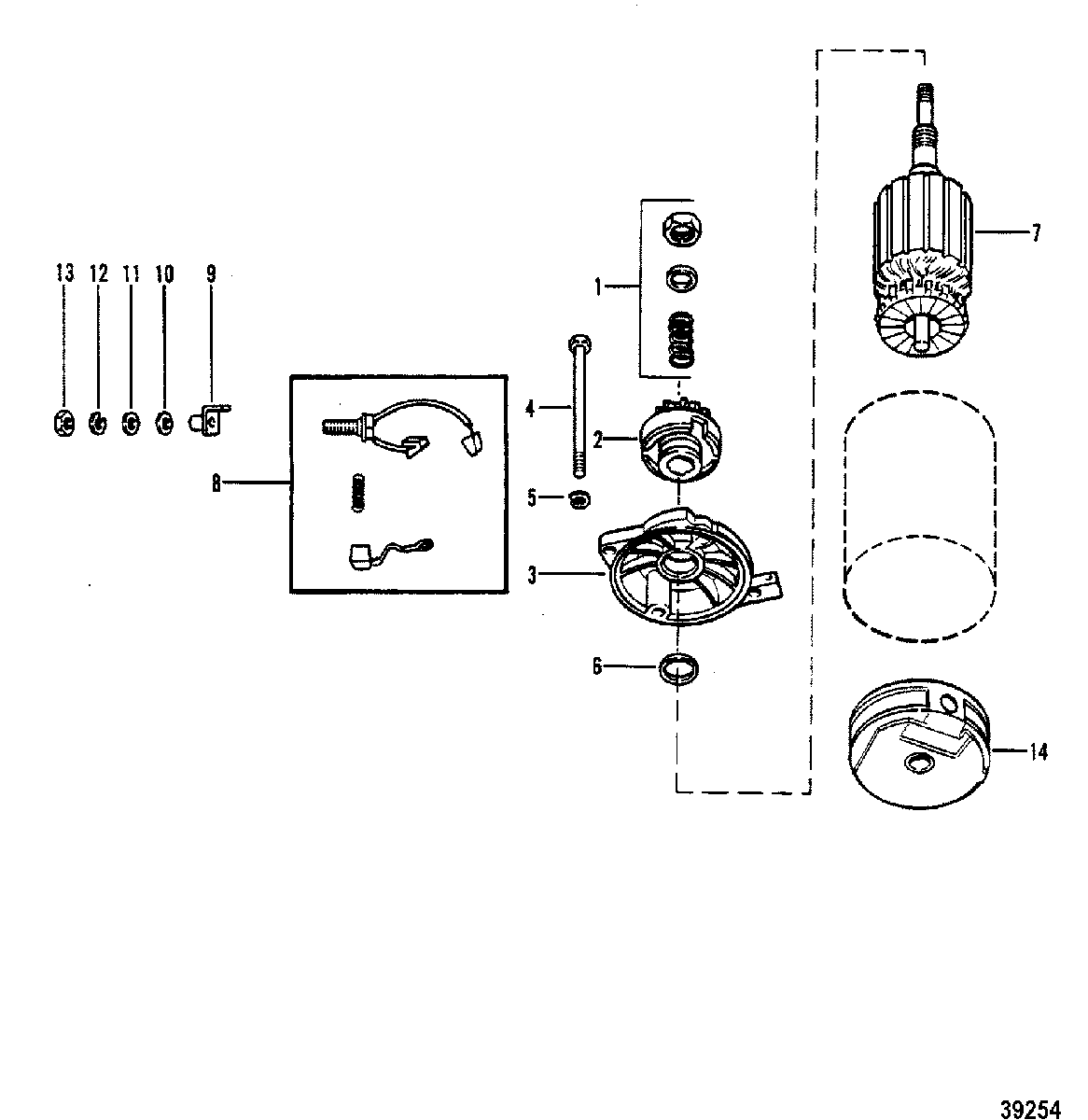

STARTER MOTOR ASSEMBLY для Mercury - 402, 40 (2 CYL.) 8064750 & Up
-
№АртикулНазвание
-
-50-55601A2 STARTER MOTOR ASSEMBLY
(9 PINION TEETH)STARTER MOTOR ASSEMBLY
(9 PINION TEETH) -
-50-898265007 STARTER MOTOR ASSEMBLY
(10 PINION TEETH)STARTER MOTOR ASSEMBLY
(10 PINION TEETH) -
190642 DRIVE KITDRIVE KIT
-
257380 DRIVE ASSEMBLY
(9 PINION TEETH)DRIVE ASSEMBLY
(9 PINION TEETH) -
243076T DRIVE ASSEMBLY
(10 PINION TEETH)DRIVE ASSEMBLY
(10 PINION TEETH) -
368584 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
4N.S.S. Not Sold Separate, THRU BOLT (BOSCH #SC-3803)Not Sold Separate, THRU BOLT (BOSCH #SC-3803)
-
513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
6N.S.S. Not Sold Separate, WASHER-THRUST (BOSCH #WA-3122)Not Sold Separate, WASHER-THRUST (BOSCH #WA-3122)
-
757384 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
923-57387 BUSHING, INSULATINGBUSHING, INSULATING
-
10N.S.S. Not Sold Separate, WASHER-INSULATING (BOSCH #WA-3074-1)Not Sold Separate, WASHER-INSULATING (BOSCH #WA-3074-1)
-
1112-38013 WASHER, INPUT STUDWASHER, INPUT STUD
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1311-20890 NUT, (.250-20)NUT, (.250-20)
-
1457389 END CAP ASSEMBLY, W/BRUSH HOLDEREND CAP ASSEMBLY, W/BRUSH HOLDER
