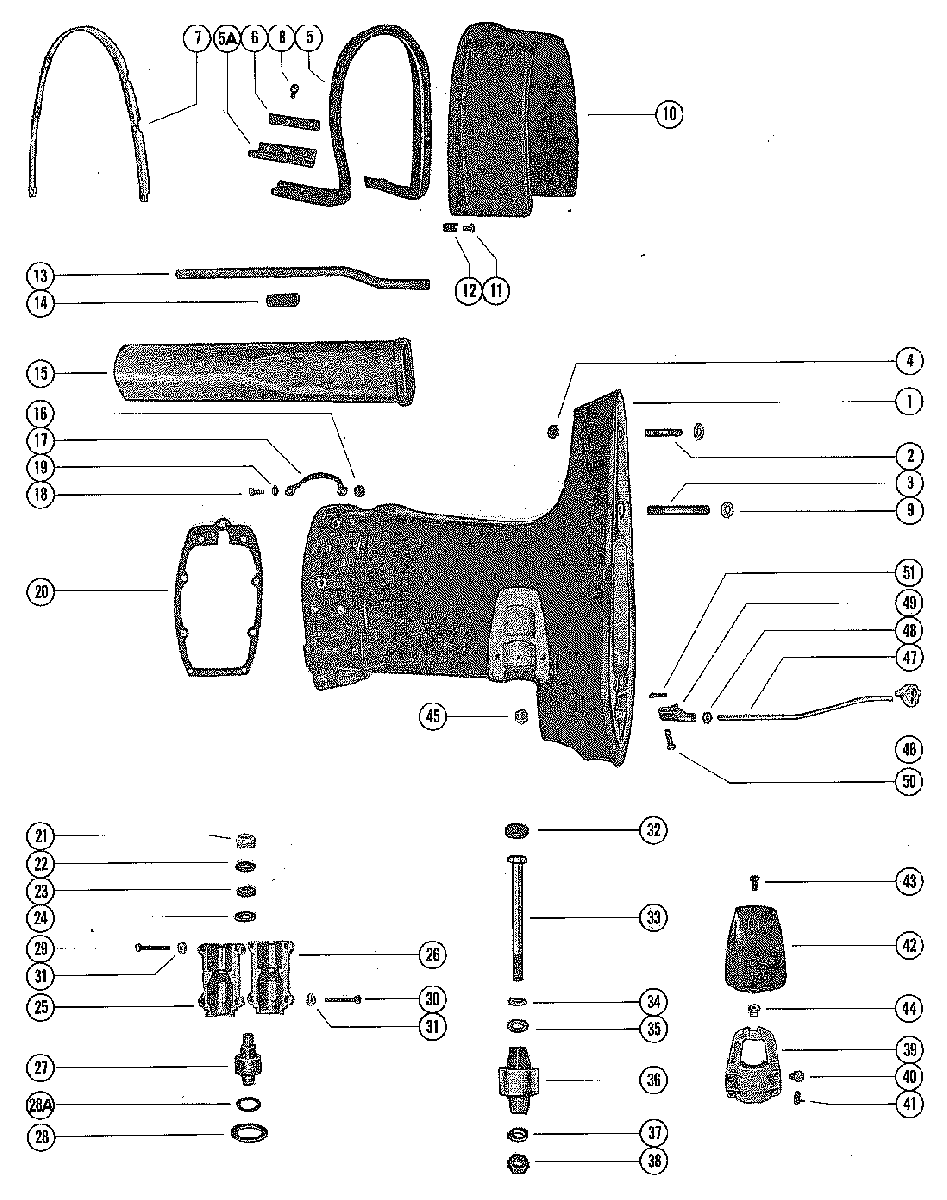

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 402 3336258 THRU 4117709
-
№АртикулНазвание
-
11554-4947A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
UNITED STATES 3346834 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
UNITED STATES 3346834 AND BELOW -
11564-4948A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 3346834 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 3346834 AND BELOW -
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
UNITED STATES 3346835 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPDRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
UNITED STATES 3346835 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
11593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 3346835 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPDRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
UNITED STATES 3346835 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
216-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
316-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
419-64649 PLUG, PLASTIC - WATER PICK-UP HOLEPLUG, PLASTIC - WATER PICK-UP HOLE
-
563139 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
663177 STRIP, RETAINING - TRIM COVER SEAL (SIDE)
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPSTRIP, RETAINING - TRIM COVER SEAL (SIDE)
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
738158 STRIP, RETAINING - TRIM COVER SEAL (REAR)
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPSTRIP, RETAINING - TRIM COVER SEAL (REAR)
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
810-48408 SCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING (1/2")SCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING (1/2")
-
912-65791 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDSWASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
-
1060769 COVER, TRIM - DRIVE SHAFT HOUSING
UNITED STATES 3344829 AND BELOWCOVER, TRIM - DRIVE SHAFT HOUSING
UNITED STATES 3344829 AND BELOW -
1110-37571 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344829 AND BELOWSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344829 AND BELOW -
5A39558 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344829 AND BELOWSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344829 AND BELOW -
639557 STRIP, RETAINING - TRIM COVER SEAL (SIDE)
UNITED STATES 3344829 AND BELOWSTRIP, RETAINING - TRIM COVER SEAL (SIDE)
UNITED STATES 3344829 AND BELOW -
1060769 COVER, TRIM - DRIVE SHAFT HOUSING
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPCOVER, TRIM - DRIVE SHAFT HOUSING
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
1110-57807 SCREW, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
1225-8M0079730 GROMMET, TRIM COVER SCREW
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UPGROMMET, TRIM COVER SCREW
UNITED STATES 3344830 AND UP
AUSTRALIA 8002335 AND UP
BELGIUM 3339688 AND UP
CANADA 3340783 AND UP -
1332-37727 TUBE, WATER OUTLET (SHORT SHAFT)TUBE, WATER OUTLET (SHORT SHAFT)
-
1332-45679 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
1423-23651 SLEEVE, RUBBER - WATER OUTLET TUBE
UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOWSLEEVE, RUBBER - WATER OUTLET TUBE
UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOW -
15695431 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
15695441 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
1611-64809 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1746933A2 GROUND STRAP, BOTTOM COWL TO DRIVE SHAFT HOUSINGGROUND STRAP, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
1810-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
1913-69432 LOCK WASHER, GROUND STRAP SCREWLOCK WASHER, GROUND STRAP SCREW
-
2027-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
-
2111-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2212-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
2312-30521 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2412-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
2579680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2679680A1 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2775301 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2824929 PACKING, "U" CUP- UPPER MOUNT COVERSPACKING, "U" CUP- UPPER MOUNT COVERS
-
28A25-65936 "O" RING, UPPER MOUNT BOLT
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP"O" RING, UPPER MOUNT BOLT
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
2910-37941 SCREW, UPPER MOUNT COVER - REAR (1 3/4")SCREW, UPPER MOUNT COVER - REAR (1 3/4")
-
3010-49987 SCREW, UPPER MOUNT COVER - FRONT (1 1/2")SCREW, UPPER MOUNT COVER - FRONT (1 1/2")
-
3111-35888 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
3225067 BUMPER, RUBBER - LOWER MOUNT SCREWBUMPER, RUBBER - LOWER MOUNT SCREW
-
3310-75284 SCREW, LOWR MOUNT (5 1/2")SCREW, LOWR MOUNT (5 1/2")
-
3412-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3512-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
3675302T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
3712-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3811-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
3969592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4010-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
4124-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
4235474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
4310-29722 SCREW, COVER TO LOWR CLAMP (5/8")SCREW, COVER TO LOWR CLAMP (5/8")
-
4411-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
4511-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4652917 GUIDE, PUSH RODGUIDE, PUSH ROD
-
4759721 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
4759720 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
4811-28770 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
4959722 ROD END, PUSH RODROD END, PUSH ROD
-
5017-72524 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
5118-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
