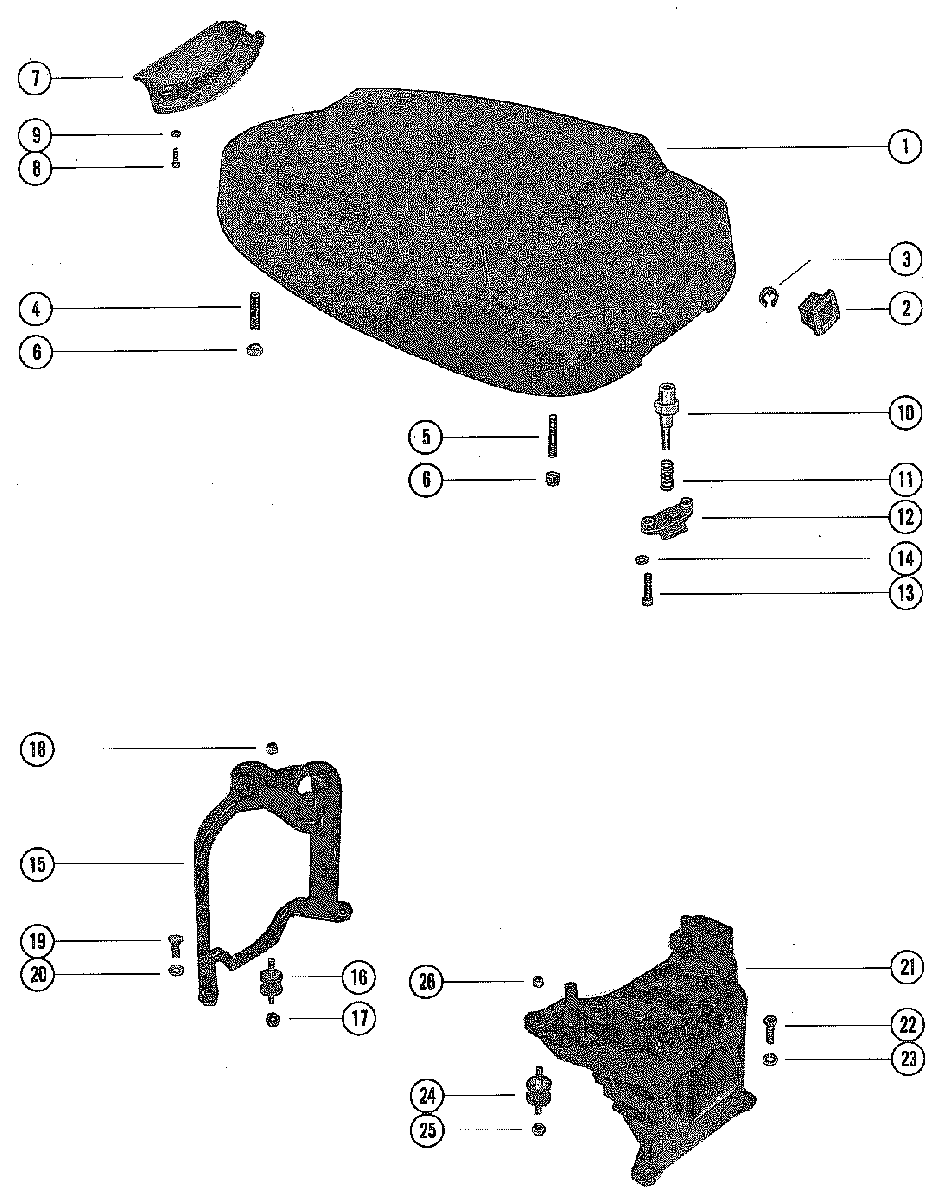

TOP COWL ASSEMBLY для Mercury - 402 3336258 THRU 4117709
-
№АртикулНазвание
-
12138-4413A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
258657 INSERT, ROPE GUIDE - TOP COWLINSERT, ROPE GUIDE - TOP COWL
-
353-72168 RING, RETAINING - ROPE GUIDE INSERTRING, RETAINING - ROPE GUIDE INSERT
-
416-21391 STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")STUD, TOP COWL TO SUPPORT BRACKET - REAR (1 1/2")
-
516-21553 STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")STUD, TOP COWL TO SUPPORT BRACKET - FRONT (1 1/2")
-
611-82670911 NUT, TOP COWL STUDNUT, TOP COWL STUD
-
762236 SHIELD, REAR - TOP COWLSHIELD, REAR - TOP COWL
-
810-38055 SCREW, REAR SHIELD TO TOP COWL (5/8")SCREW, REAR SHIELD TO TOP COWL (5/8")
-
912-26014 WASHER, REAR SHIELD SCREWWASHER, REAR SHIELD SCREW
-
1039619 BUTTON, FRONT COVER RELEASE - TOP COWLBUTTON, FRONT COVER RELEASE - TOP COWL
-
1124-37911 SPRING, COMPRESSION - FRONT COVER RELEASE BUTTONSPRING, COMPRESSION - FRONT COVER RELEASE BUTTON
-
1260865 CATCH, FRONT COVER - TOP COWLCATCH, FRONT COVER - TOP COWL
-
1310-69011 SCREW, FRONT COVER CATCH TO TOP COWL (7/8")SCREW, FRONT COVER CATCH TO TOP COWL (7/8")
-
1413-26996 LOCK WASHER, FRONT COVER CATCH SCREWLOCK WASHER, FRONT COVER CATCH SCREW
-
1567878 BRACKET, SUPPORT - TOP COWL
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWBRACKET, SUPPORT - TOP COWL
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
1567878 BRACKET, SUPPORT - TOP COWL
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPBRACKET, SUPPORT - TOP COWL
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
1690435 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1711-8267089 NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER (LOWER)NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER (LOWER)
-
1811-826709109 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET (UPPER)NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET (UPPER)
-
1910-37562 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1")
-
2013-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
2167323 BRACKET, SUPPORT - TOP COWL (FRONT)
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWBRACKET, SUPPORT - TOP COWL (FRONT)
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
2167323 BRACKET, SUPPORT - TOP COWL (FRONT)
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPBRACKET, SUPPORT - TOP COWL (FRONT)
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
2210-37562 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
-
2313-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
2490435 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
2511-8267089 NUT, RUBBER MOUNT TO CRANKCASE (LOWER)NUT, RUBBER MOUNT TO CRANKCASE (LOWER)
-
2611-826709109 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET (UPPER)NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET (UPPER)
