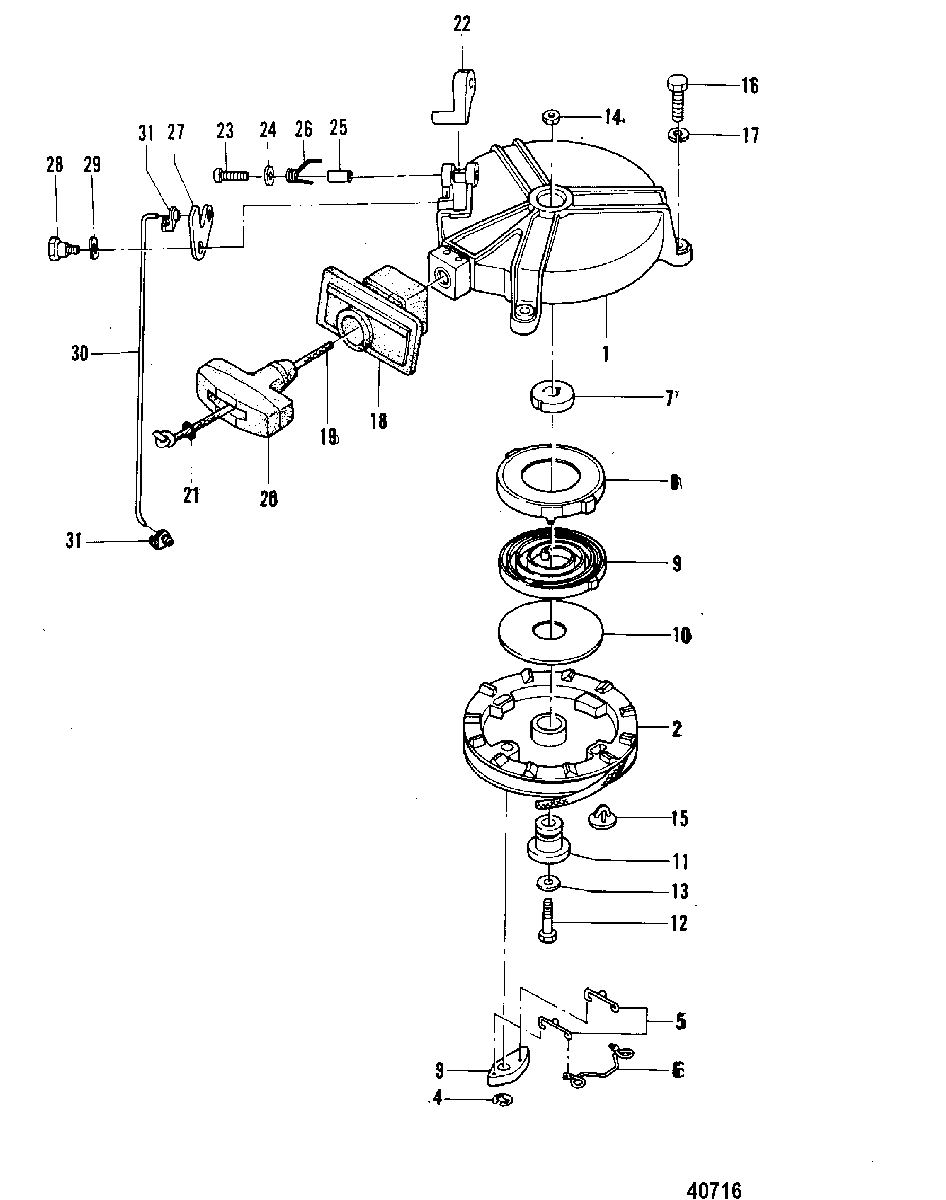

RECOIL STARTER, S#USA-A834680/Belgium-9542670 and Below для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153
-
№АртикулНазвание
-
1803576T02 HOUSING, StarterHOUSING, Starter
-
216095 SHEAVE, StarterSHEAVE, Starter
-
316096 PAWL, STARTER SHEAVEPAWL, STARTER SHEAVE
-
453-16097 E RING, PAWLE RING, PAWL
-
524-16098 SPRING, Guide, PAWLSPRING, Guide, PAWL
-
624-16099 SPRING, PAWLSPRING, PAWL
-
716100 GUIDE PLATE, SPRINGGUIDE PLATE, SPRING
-
816101 HOUSING, STARTER SPRINGHOUSING, STARTER SPRING
-
924-812645T SPRING, StarterSPRING, Starter
-
1016103 PLATE, STARTER SPRINGPLATE, STARTER SPRING
-
1116104 SHAFT, StarterSHAFT, Starter
-
1210-16105 BOLT, STARTER SHAFTBOLT, STARTER SHAFT
-
1312-16106 WASHER, STARTER SHAFT BOLTWASHER, STARTER SHAFT BOLT
-
1411-400212 NUT, STARTER SHAFT BOLTNUT, STARTER SHAFT BOLT
-
1519-16111 PLUG, STARTER SHEAVEPLUG, STARTER SHEAVE
-
1610-4000330 BOLT, Stainless Steel, STARTER HOUSINGBOLT, Stainless Steel, STARTER HOUSING
-
1713-400256 LOCKWASHER, STARTER HOUSING BOLTLOCKWASHER, STARTER HOUSING BOLT
-
18161101 PLATE, STARTERPLATE, STARTER
-
1950-16108 ROPE, StarterROPE, Starter
-
2095249 HANDLE, StarterHANDLE, Starter
-
2125-16109 O-RING, STARTER ROPEO-RING, STARTER ROPE
-
2217634 LOCK, StarterLOCK, Starter
-
2310-17635 SCREW, STARTER LOCKSCREW, STARTER LOCK
-
2412-16335 WASHER, STARTER LOCK SCREWWASHER, STARTER LOCK SCREW
-
2523-895130 COLLAR, STARTER LOCKCOLLAR, STARTER LOCK
-
2624-812645007 SPRING, STARTER LOCKSPRING, STARTER LOCK
-
27812643 CAM, STARTER LOCKCAM, STARTER LOCK
-
2810-17640 SHOULDER SCREW, CAMSHOULDER SCREW, CAM
-
2913-17641 WAVE WASHER, SHOULDER SCREWWAVE WASHER, SHOULDER SCREW
-
3017642001 ROD, STARTER LOCKROD, STARTER LOCK
-
31176431 SNAP, Link RodSNAP, Link Rod
