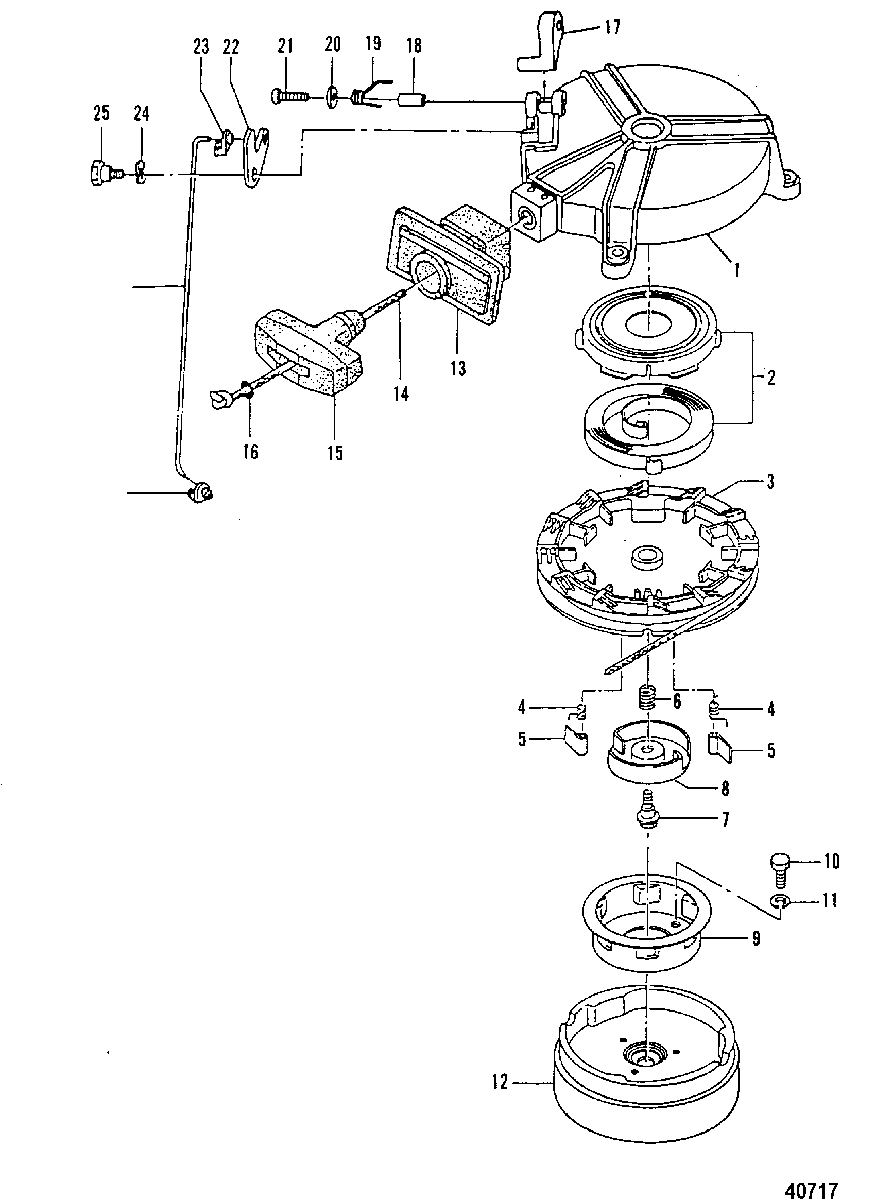

RECOIL STARTER, S#USA-A834681/Belgium-9542671 and Up для Mercury - 4/5 (1 CYL. PRODUCT OF JAPAN) 9477830 THRU 9589153
-
№АртикулНазвание
-
1812632002 HOUSING, StarterHOUSING, Starter
-
224-812645T SPRING SETSPRING SET
-
3812633 SHEEVE, StarterSHEEVE, Starter
-
424-812634 SPRING, ReturnSPRING, Return
-
58M0060217 RATCHETRATCHET
-
624-812636 SPRING, FrictionSPRING, Friction
-
710-8M0060218 BOLT, STARTER SHAFTBOLT, STARTER SHAFT
-
8812638 FRICTION PLATEFRICTION PLATE
-
9812642 PULLEY, StarterPULLEY, Starter
-
1010-16828 BOLTBOLT
-
1113-16818 LOCKWASHERLOCKWASHER
-
12200-8M0110989 FLYWHEELFLYWHEEL
-
13161101 PLATE, STARTERPLATE, STARTER
-
1450-12066Q10 ROPE, StarterROPE, Starter
-
15812640 HANDLE, Starter RopeHANDLE, Starter Rope
-
16812641 RETAINERRETAINER
-
1717634 LOCK, StarterLOCK, Starter
-
1823-895130 COLLAR, STARTER LOCKCOLLAR, STARTER LOCK
-
1924-812645007 SPRING, STARTER LOCKSPRING, STARTER LOCK
-
2012-16335 WASHER, STARTER LOCK SCREWWASHER, STARTER LOCK SCREW
-
2110-17635 SCREW, STARTER LOCKSCREW, STARTER LOCK
-
22812643 CAM, STARTER LOCKCAM, STARTER LOCK
-
23176431 SNAP, Link RodSNAP, Link Rod
-
2413-17641 WAVE WASHER, SHOULDER SCREWWAVE WASHER, SHOULDER SCREW
-
2510-17640 SHOULDER SCREW, CAMSHOULDER SCREW, CAM
