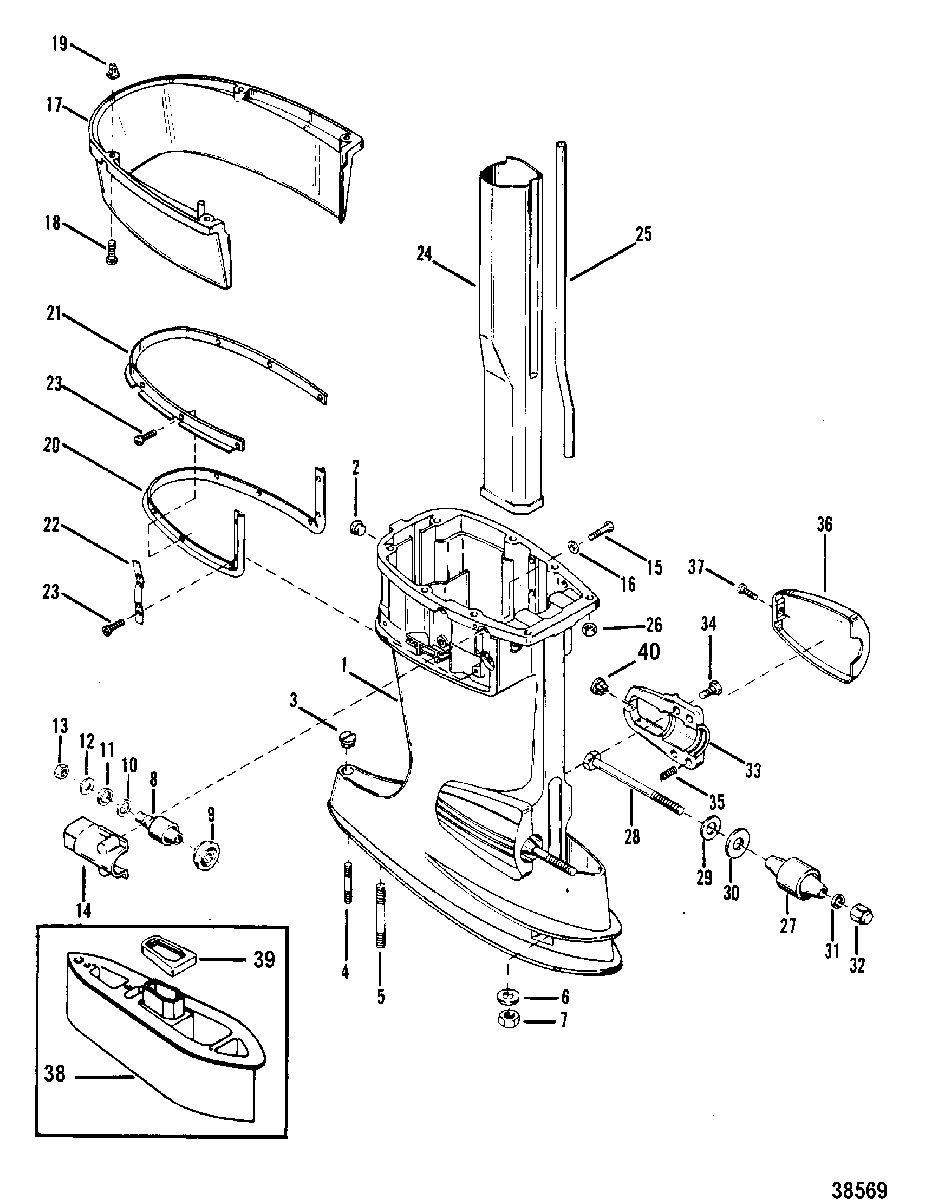

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 45 (4 CYL.) 9248006 THRU 9466691
-
№АртикулНазвание
-
11592-8188A8 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)
-
11593-7513A12 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)
-
222-390721 PLUG, (1/8 Inch Brass), DRIVESHAFT HOUSINGPLUG, (1/8 Inch Brass), DRIVESHAFT HOUSING
-
319-64649 PLUG, PLASTICPLUG, PLASTIC
-
416-8M0022145 STUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSINGSTUD, (.375-16/.375-24 x 1.750), DRIVESHAFT HOUSING
-
416-97460 STUD, (.375 x 6.75), DRIVE SHAFT HOUSING (X-LONG SHAFT)STUD, (.375 x 6.75), DRIVE SHAFT HOUSING (X-LONG SHAFT)
-
516-57935 STUD, DRIVESHAFT HOUSING (3")STUD, DRIVESHAFT HOUSING (3")
-
516-96124 STUD, (.4375 x 8.03) , DRIVESHAFT HOUSING (X-LONG SHAFT)STUD, (.4375 x 8.03) , DRIVESHAFT HOUSING (X-LONG SHAFT)
-
612-65791 WASHER, GEAR HOUSING STUDS (7/16")WASHER, GEAR HOUSING STUDS (7/16")
-
711-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDSNUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
-
8923373 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
996401 SEAL, UPPER MOUNTSEAL, UPPER MOUNT
-
1012-27727 WASHER, UPPER MOUNT BOLT (37/64 I.D.)WASHER, UPPER MOUNT BOLT (37/64 I.D.)
-
1112-66966 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
1212-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLTNUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
-
1487883 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
1510-76630 SCREW, (.250-20 x 1.00), UPPER MOUNT COVERSCREW, (.250-20 x 1.00), UPPER MOUNT COVER
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREWWASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
-
1737687 COVER, TRIM - DRIVESHAFT HOUSING
(MERCURY)COVER, TRIM - DRIVESHAFT HOUSING
(MERCURY) -
1737687F2 COVER, TIRM-DRIVESHAFT HOUSING
(MARINER)COVER, TIRM-DRIVESHAFT HOUSING
(MARINER) -
1810-57807 SCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO DRIVESHAFT HOUSINGSCREW, (#10-16 x .750) Stainless Steel, TRIM COVER TO DRIVESHAFT HOUSING
-
1925-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
2038157 SEAL, TRIM COVER TO DRIVESHAFT HOUSINGSEAL, TRIM COVER TO DRIVESHAFT HOUSING
-
2138158 STRIP, RETAINING (REAR)STRIP, RETAINING (REAR)
-
2238154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
2310-48408 SCREW, (#10-16 x .500), RETAINING STRIPSCREW, (#10-16 x .500), RETAINING STRIP
-
24695431 TUBE, EXHAUST
(SHORT SHAFT)TUBE, EXHAUST
(SHORT SHAFT) -
24695441 TUBE, EXHUAST
(LONG SHAFT)TUBE, EXHUAST
(LONG SHAFT) -
2532-37727 TUBE, WATER INLET
(SHORT SHAFT)TUBE, WATER INLET
(SHORT SHAFT) -
2532-45679 TUBE, WATER INLET
(LONG SHAFT)TUBE, WATER INLET
(LONG SHAFT) -
2532-98856 TUBE, WATER INLET
(X-LONG SHAFT)TUBE, WATER INLET
(X-LONG SHAFT) -
2611-64809 NUT, POWERHEAD STUDS (5/16")NUT, POWERHEAD STUDS (5/16")
-
2775304T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2810-75284 SCREW, (.500-20 x 5.500), LOWER MOUNT SCREWSCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
-
2912-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3012-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
3112-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREWWASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
-
3211-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
3369592F1 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
3410-29256 SCREW, (.312-18 x .875), LOWER MOUNT CLAMPSCREW, (.312-18 x .875), LOWER MOUNT CLAMP
-
3524-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
3635474T COVER, LOWER MOUNT CLAMP
(MERCURY)COVER, LOWER MOUNT CLAMP
(MERCURY) -
3635474F2 COVER, Lower Mount Clamp
(MARINER)COVER, Lower Mount Clamp
(MARINER) -
3710-87884 SCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMPSCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMP
-
3898858A1 EXTENSION ASSEMBLY (X-LONG SHAFT)EXTENSION ASSEMBLY (X-LONG SHAFT)
-
3937721001 SEAL, EXTENSION (X-LONG SHAFT)SEAL, EXTENSION (X-LONG SHAFT)
-
4011-35521 NUTNUT
