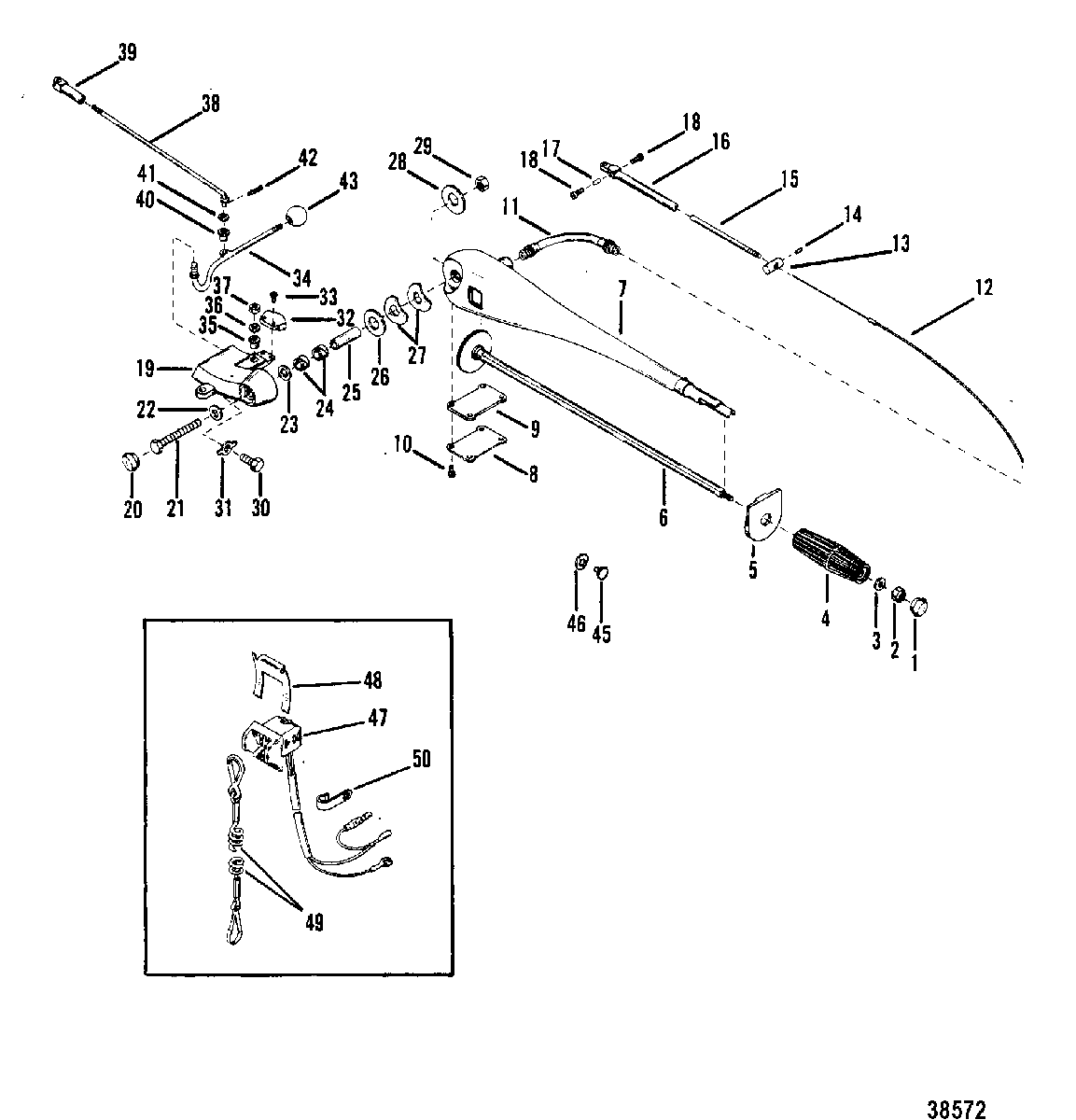

STEERING HANDLE ASSEMBLY для Mercury - 45 (4 CYL.) 9248006 THRU 9466691
-
№АртикулНазвание
-
148416T CAP, STEERING HANDLE GRIPCAP, STEERING HANDLE GRIP
-
211-826709109 NUT, (.250-28), STEERING HANDLE ARMNUT, (.250-28), STEERING HANDLE ARM
-
312-69056 WASHER, (.255 x .625 x .0312), STEERING HANDLE ARMWASHER, (.255 x .625 x .0312), STEERING HANDLE ARM
-
458192A1 GRIP, STEERING HANDLE ARMGRIP, STEERING HANDLE ARM
-
548414 HOUSING, DRIVE WHEELHOUSING, DRIVE WHEEL
-
648516A1 DRIVE WHEEL/ROD ASSEMBLYDRIVE WHEEL/ROD ASSEMBLY
-
748405A2 ARM (USE WITH PUSH BOTTON SWITCH)ARM (USE WITH PUSH BOTTON SWITCH)
-
748405A2 ARM ASSEMBLY (USE WITH TOGGLE SWITCH)ARM ASSEMBLY (USE WITH TOGGLE SWITCH)
-
848519 PLATE, COVER - DRIVE WHEELPLATE, COVER - DRIVE WHEEL
-
927-48518 GASKET, COVER PLATEGASKET, COVER PLATE
-
1010-72169 SCREW, (#10-24 x .50), DRIVE WHEEL COVER PLATESCREW, (#10-24 x .50), DRIVE WHEEL COVER PLATE
-
11785511 CONDUIT, CableCONDUIT, Cable
-
1248520 CABLE, ThrottleCABLE, Throttle
-
1389613 CONNECTOR, CONTROL LINKAGECONNECTOR, CONTROL LINKAGE
-
1410-824081 SCREW, SET - THROTTLE CABLE GUIDE TUBESCREW, SET - THROTTLE CABLE GUIDE TUBE
-
158M0026078 TUBE, THROTTLE CABLE GUIDETUBE, THROTTLE CABLE GUIDE
-
1643433 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1720007 ANCHOR, THROTTLE CABLEANCHOR, THROTTLE CABLE
-
1810-20518 SET SCREW, (#8-32), THROTTLE CABLE ANCHORSET SCREW, (#8-32), THROTTLE CABLE ANCHOR
-
1948404T8 BRACKET, HANDLEBRACKET, HANDLE
-
2048416T CAP, HANDLE BRACKETCAP, HANDLE BRACKET
-
2110-823597 SCREW, HANDLE BRACKETSCREW, HANDLE BRACKET
-
2212-48477 WASHER, HANDLE BRACKET (.505 I.D.)WASHER, HANDLE BRACKET (.505 I.D.)
-
2312-48526 WASHER, NYLON - HANDLE BRACKET (.630 I.D.)WASHER, NYLON - HANDLE BRACKET (.630 I.D.)
-
2423-28919 BUSHING, NYLON - HANDLE BRACKET (5/8" I.D.)BUSHING, NYLON - HANDLE BRACKET (5/8" I.D.)
-
2523-48525 SPACER, HANDLE BRACKETSPACER, HANDLE BRACKET
-
2612-38000 WASHER, NYLON - HANDLE BRACKET (1-35/64" O.D.)WASHER, NYLON - HANDLE BRACKET (1-35/64" O.D.)
-
2713-48478 WAVE WASHER, HANDLE BRACKETWAVE WASHER, HANDLE BRACKET
-
2812-49636 WASHER, NYLON - HANDLE BRACKET (1-3/4" O.D.)WASHER, NYLON - HANDLE BRACKET (1-3/4" O.D.)
-
2911-82671317 NUT, (.500-20), HANDLE BRACKET SCREWNUT, (.500-20), HANDLE BRACKET SCREW
-
3010-35786 SCREW, (.375-24 x 1.00), BRACKET TO ENGINESCREW, (.375-24 x 1.00), BRACKET TO ENGINE
-
3114-43589 TAB WASHER, BRACKET SCREWTAB WASHER, BRACKET SCREW
-
3278812A1 DETENT, SHIFT LEVERDETENT, SHIFT LEVER
-
3310-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIFT LEVER DETENTSCREW, (#10-16 x .625) Stainless Steel, SHIFT LEVER DETENT
-
34485681 SHIFT LEVVERSHIFT LEVVER
-
3523-48237 BUSHING, NYLON - SHIFT LEVER (3/8"I.D.)BUSHING, NYLON - SHIFT LEVER (3/8"I.D.)
-
3612-34931 WASHER, (.406 x .734 x .063) Stainless Steel, SHIFT LEVERWASHER, (.406 x .734 x .063) Stainless Steel, SHIFT LEVER
-
3711-8M0042636 NUT, (.375-24), SHIFT LEVERNUT, (.375-24), SHIFT LEVER
-
388128061 SHIFT RODSHIFT ROD
-
3948419T ROD END, SHIFT RODROD END, SHIFT ROD
-
4023-48475 BUSHING, NYLON - SHIFT ROD (1/4" I.D.)BUSHING, NYLON - SHIFT ROD (1/4" I.D.)
-
4112-35950 WASHER, (.273 x .437 x .031) Stainless Steel, SHIFT RODWASHER, (.273 x .437 x .031) Stainless Steel, SHIFT ROD
-
4218-25191 COTTER PIN, SHIFT RODCOTTER PIN, SHIFT ROD
-
4398530 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
4519-35827 PLUG, BOTTOM COWL - SHORTING SWITCH HOLEPLUG, BOTTOM COWL - SHORTING SWITCH HOLE
-
4611-30428 FASTENER, PLUG TO BOTTOM COWLFASTENER, PLUG TO BOTTOM COWL
-
4787-11083A11 SWITCH ASSEMBLY, Stop
USE WITH TOGGLE SWITCHSWITCH ASSEMBLY, Stop
USE WITH TOGGLE SWITCH -
488M0032846 RETANER, STOP SWITCH
USE WITH TOGGLE SWITCHRETANER, STOP SWITCH
USE WITH TOGGLE SWITCH -
498M0092850 LANYARD ASSEMBLY
USE WITH TOGGLE SWITCHLANYARD ASSEMBLY
USE WITH TOGGLE SWITCH -
5054-648552 CLAMP, STOP SWITCH
USE WITH TOGGLE SWITCHCLAMP, STOP SWITCH
USE WITH TOGGLE SWITCH
