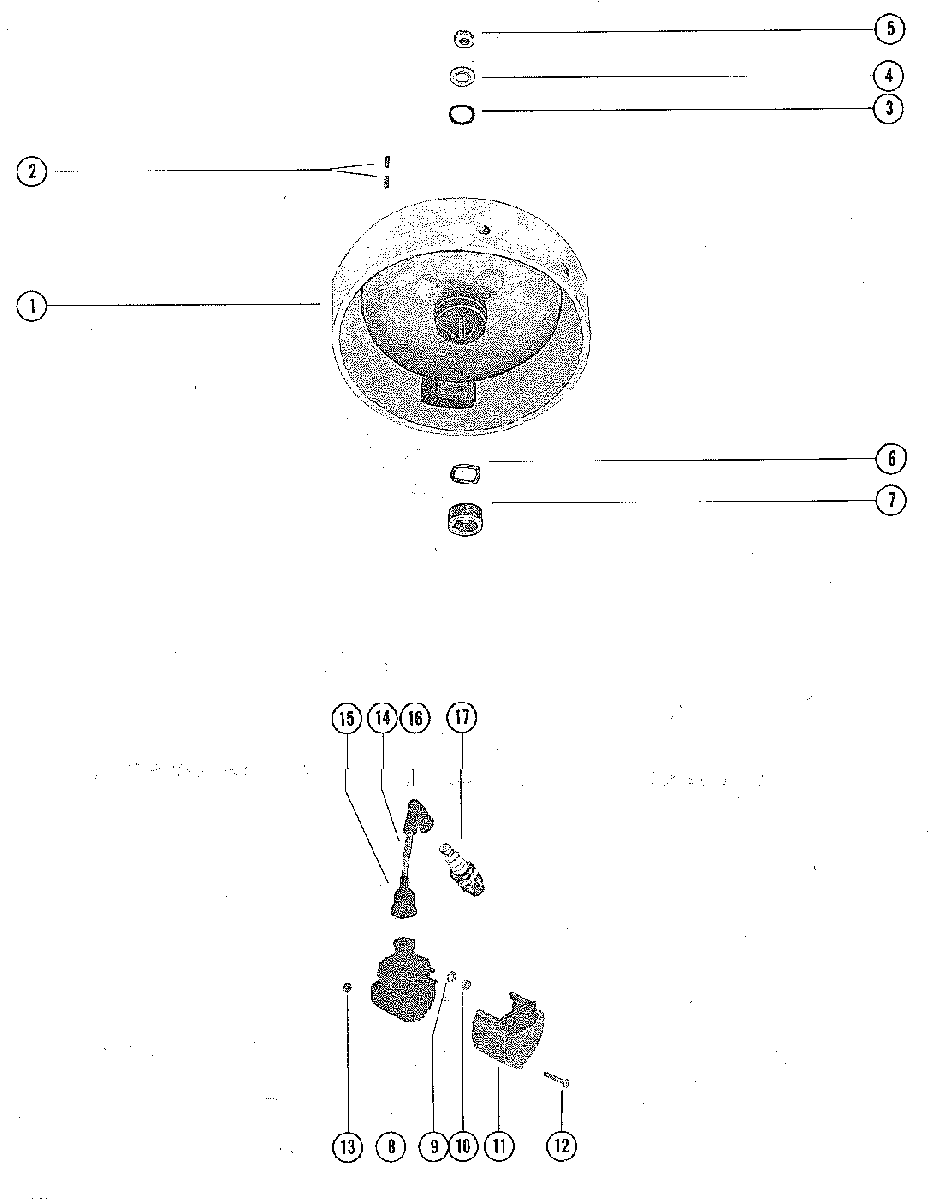

FLYWHEEL AND IGNITION COIL для Mercury - 45, 4.5 (1 CYL.) 9072179 THRU 9258280
-
№АртикулНазвание
-
1236-4475A1 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
228-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
325-62701 "O" RING, FLYWHEEL NUT
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOW"O" RING, FLYWHEEL NUT
UNITED STATES 4377556 AND BELOW
AUSTRALIA 8037074 AND BELOW
BELGIUM 9110488 AND BELOW
CANADA 7072372 AND BELOW -
412-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
511-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
613-35629 WASHER, WAVE - CAM TENSIONWASHER, WAVE - CAM TENSION
-
7336-4465 CAM, BREAKERCAM, BREAKER
-
8336-4528T2 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
913-26996 LOCKWASHER, IGNITION COIL TERMINALLOCKWASHER, IGNITION COIL TERMINAL
-
1011-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
1166355 COVER, IGNITION COILCOVER, IGNITION COIL
-
1210-61530 SCREW
COIL COVER TO REAR SUPPRT BRACKET (3 3/4")SCREW
COIL COVER TO REAR SUPPRT BRACKET (3 3/4") -
1311-27164 NUT, COIL COVER SCREWNUT, COIL COVER SCREW
-
1484-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
15332-2854T01 NIPLE, IGNITION COILNIPLE, IGNITION COIL
-
1685-63709A1 PROTECTOR ASSEMBLY, SPARK PLUGPROTECTOR ASSEMBLY, SPARK PLUG
-
1733-97182Q SPARK PLUG (AC#40FFK)
CANADA AND BELGIUM USE C-33-75739SPARK PLUG (AC#40FFK)
CANADA AND BELGIUM USE C-33-75739 -
-27-78139A80 GASKET SETGASKET SET
