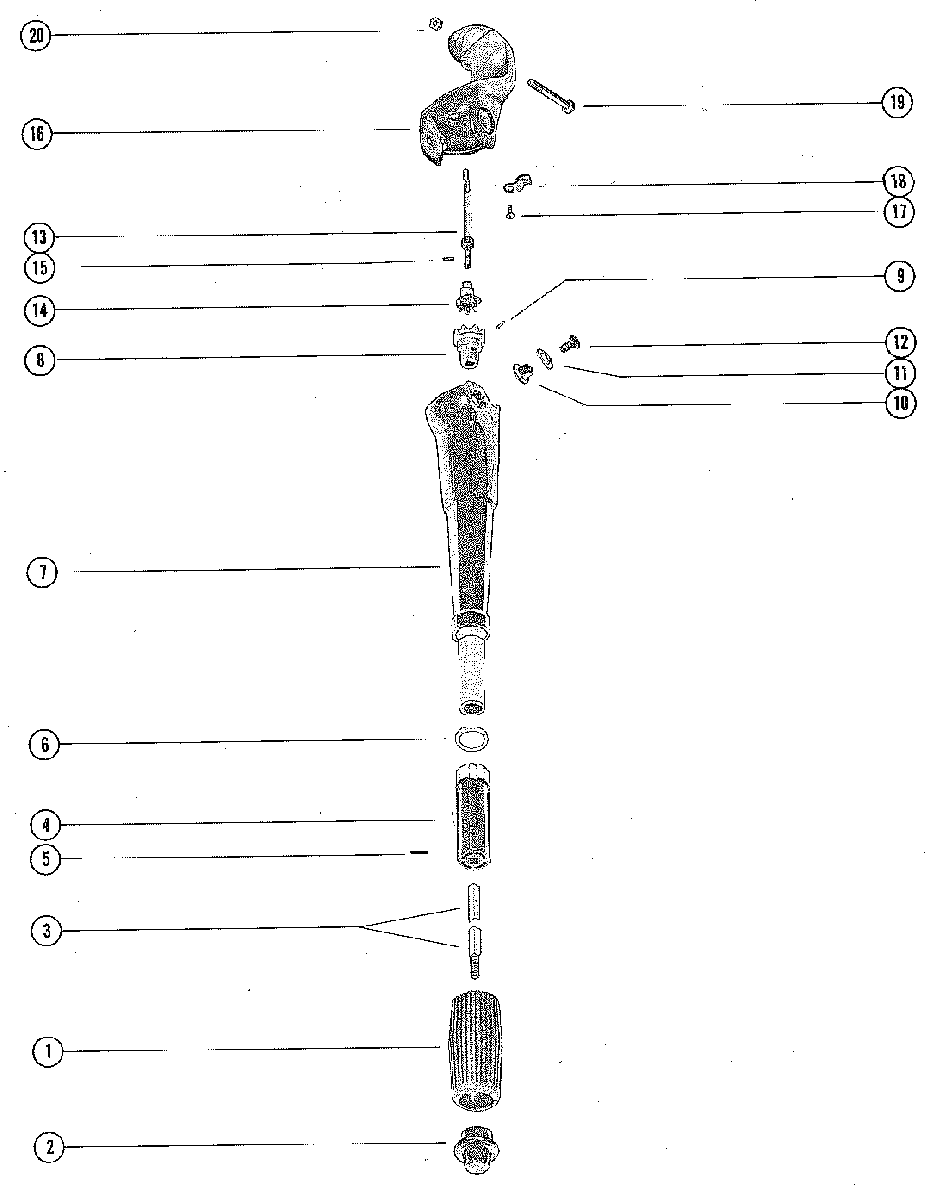

STEERING HANDLE ASSEMBLY для Mercury - 45, 4.5 (1 CYL.) 9072179 THRU 9258280
-
№АртикулНазвание
-
-60850A6 STEERING HANDLE ASSEMBLY, COMPLETESTEERING HANDLE ASSEMBLY, COMPLETE
-
160854 GRIP, HANDLE - THROTTLEGRIP, HANDLE - THROTTLE
-
262251 CAP, HANDLE THROTTLECAP, HANDLE THROTTLE
-
366393 SHAFT, THROTTLESHAFT, THROTTLE
-
466394A1 HANDLE ASSEMBLY, THROTTLE SHAFTHANDLE ASSEMBLY, THROTTLE SHAFT
-
517-46152 PIN, THROTTLE HADNLEPIN, THROTTLE HADNLE
-
612-62252 WASHER, THROTTLE HANDLE TO STEERING ARMWASHER, THROTTLE HANDLE TO STEERING ARM
-
760850 ARM, STEERING HANDLEARM, STEERING HANDLE
-
843-60852 GEAR, BALL THROTTLE SHAFTGEAR, BALL THROTTLE SHAFT
-
917-27088 PIN, BALL GEAR TO THROTTLE SHAFTPIN, BALL GEAR TO THROTTLE SHAFT
-
1048003 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1115-48002015 SHIM, HANDLE PIVOT TO BRACKET (.015)SHIM, HANDLE PIVOT TO BRACKET (.015)
-
1210-64074 SCREW, HANDLE TO ARM BRACKET (5/8")SCREW, HANDLE TO ARM BRACKET (5/8")
-
1360857A2 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
1443-60852 GEAR, BALL - UNIVERSAL JOINTGEAR, BALL - UNIVERSAL JOINT
-
1517-77564 PIN, BALL GEAR TO UNIVERSAL JOINTPIN, BALL GEAR TO UNIVERSAL JOINT
-
1696130A1 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
1710-62233 SCREW
DETENT SPRING TO STEERING ARM BRACKET (5/8")SCREW
DETENT SPRING TO STEERING ARM BRACKET (5/8") -
1824-72847 SPRING, DETENT - STEERING HANDLESPRING, DETENT - STEERING HANDLE
-
1910-30679 SCREW, BRACKET TO SADDLE (2 1/2")
UNITED STATES 4869517 AND BELOW
AUSTRALIA 8052879 AND BELOW
BELGIUM 9186200 AND BELOW
CANADA 7112922 AND BELOWSCREW, BRACKET TO SADDLE (2 1/2")
UNITED STATES 4869517 AND BELOW
AUSTRALIA 8052879 AND BELOW
BELGIUM 9186200 AND BELOW
CANADA 7112922 AND BELOW -
2011-20184 NUT, BRACKET SCREW
UNITED STATES 4869517 AND BELOW
AUSTRALIA 8052879 AND BELOW
BELGIUM 9186200 AND BELOW
CANADA 7112922 AND BELOWNUT, BRACKET SCREW
UNITED STATES 4869517 AND BELOW
AUSTRALIA 8052879 AND BELOW
BELGIUM 9186200 AND BELOW
CANADA 7112922 AND BELOW -
1910-78038 SCREW, BRACKET TO SADDLE (1 3/4")
UNITED STATES 4869518 AND UP
AUSTRALIA 8052880 AND UP
BELGIUM 9186201 AND UP
CANADA 7112923 AND UPSCREW, BRACKET TO SADDLE (1 3/4")
UNITED STATES 4869518 AND UP
AUSTRALIA 8052880 AND UP
BELGIUM 9186201 AND UP
CANADA 7112923 AND UP
