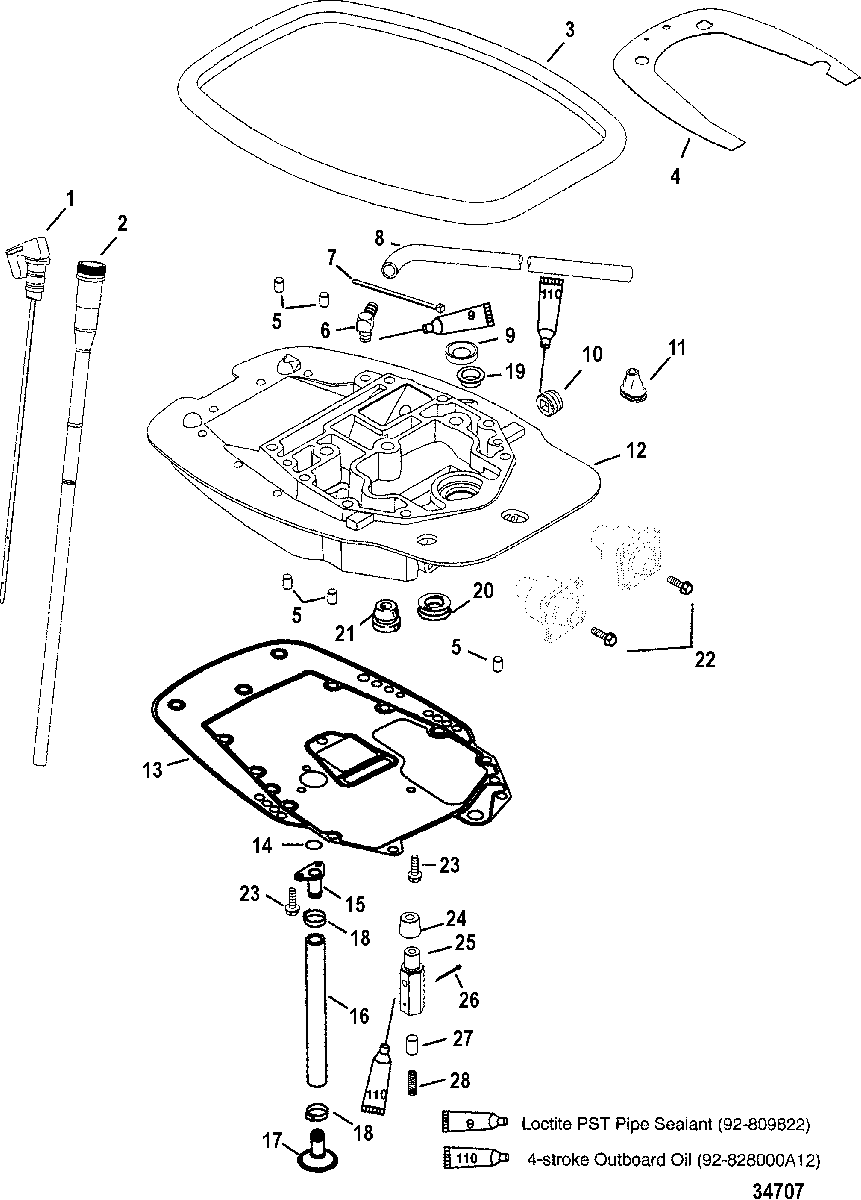

Adaptor Plate для Mercury - 45 BODENSEE (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
1825990 DIPSTICKDIPSTICK
-
2825989003 DIPSTICK TUBEDIPSTICK TUBE
-
38560552 SEALSEAL
-
48289151 HEAT SHIELDHEAT SHIELD
-
517-23784 PIN, DowelPIN, Dowel
-
622-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
832-77653101 HOSE, (48.00 Inches Bulk), Cut to 20 InchesHOSE, (48.00 Inches Bulk), Cut to 20 Inches
-
926-828932 SEAL, Oil
Non BigfootSEAL, Oil
Non Bigfoot -
926-16977 SEAL, Oil
BigfootSEAL, Oil
Bigfoot -
1022-384073 PLUG, PipePLUG, Pipe
-
1125-822408001 GROMMET
Non BigfootGROMMET
Non Bigfoot -
12825228A24 ADAPTOR PLATEADAPTOR PLATE
-
1327-892320001 GASKETGASKET
-
1425-845746 O-RINGO-RING
-
15893765 PLATE, Oil Pickup-TopPLATE, Oil Pickup-Top
-
1632-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
17893700 BAFFLEBAFFLE
-
1854-855228 CLAMPCLAMP
-
1923-856743 BUSHING
Non BigfootBUSHING
Non Bigfoot -
2025-19565002 GROMMET
Power TrimGROMMET
Power Trim -
2125-19564001 GROMMET
Non Power TrimGROMMET
Non Power Trim -
2210-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
2310-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
24856592 DEFLECTOR, OilDEFLECTOR, Oil
-
25881872A1 BODY, Oil Pressure ReliefBODY, Oil Pressure Relief
-
2618-45882 COTTER PINCOTTER PIN
-
278252151 PLUNGERPLUNGER
-
2824-825216 SPRINGSPRING
