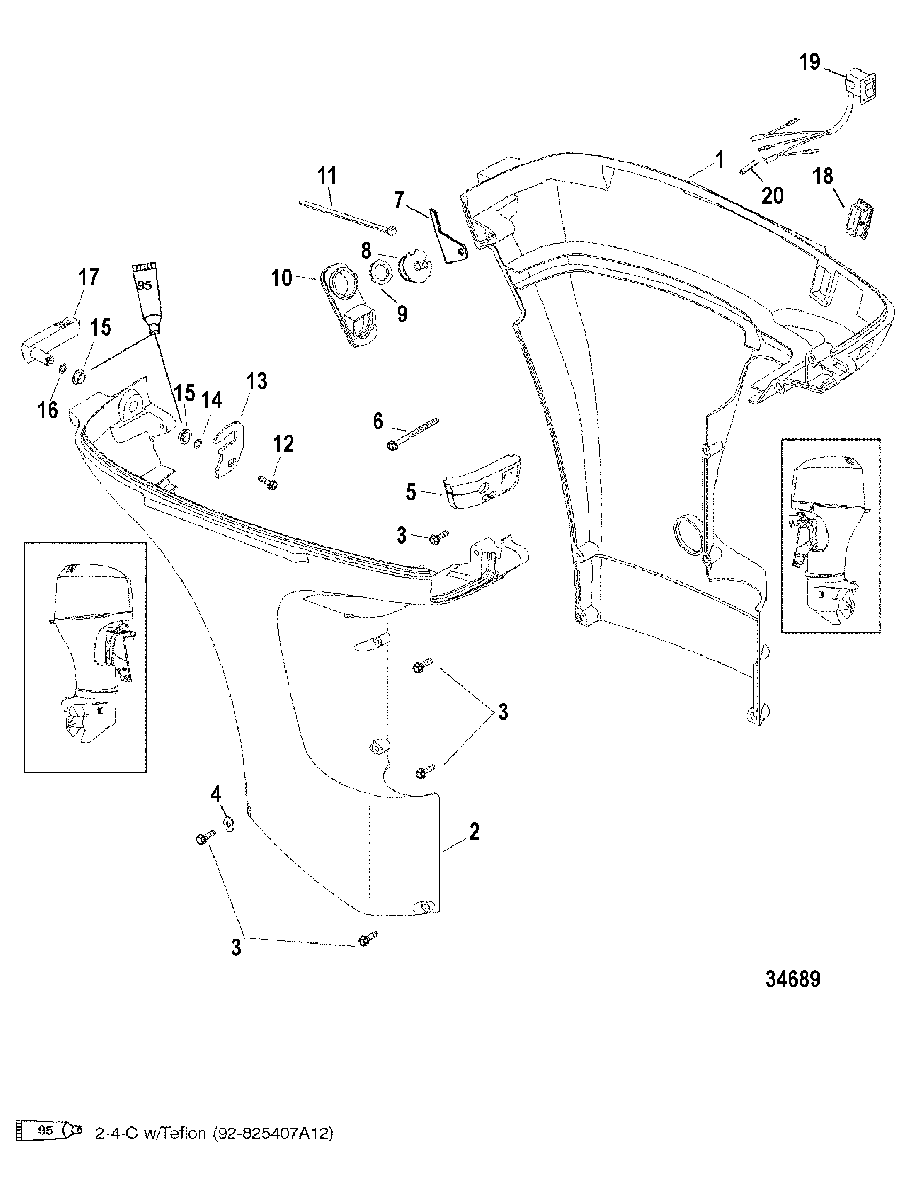

Bottom Cowl для Mercury - 45 BODENSEE (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
14020-826277T1 BOTTOM COWL
Port-BlackBOTTOM COWL
Port-Black -
14020-826277T1 BOTTOM COWL
Port-GrayBOTTOM COWL
Port-Gray -
24020-826278T7 BOTTOM COWL
Starboard-BlackBOTTOM COWL
Starboard-Black -
24020-826278T7 BOTTOM COWL
Starboard-GrayBOTTOM COWL
Starboard-Gray -
310-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5825238002 SEALSEAL
-
610-82684460 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
727-855627 GASKETGASKET
-
822-827948 FITTINGFITTING
-
912-855576 WASHERWASHER
-
10826273001 BOOTBOOT
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1210-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
13893766 LATCH HOOKLATCH HOOK
-
1413-12134 WASHER, WaveWASHER, Wave
-
1523-812707 BUSHINGBUSHING
-
1613-12134 WASHER, WaveWASHER, Wave
-
17825782F1 LEVER, Cowl Latch
BlackLEVER, Cowl Latch
Black -
17825782F1 LEVER, Cowl Latch
GrayLEVER, Cowl Latch
Gray -
18812830T01 PLUG
Non-Power TrimPLUG
Non-Power Trim -
1987-8M0042301 SWITCH ASSEMBLY
Power TrimSWITCH ASSEMBLY
Power Trim -
2013541 PLUG, Male
HandlePLUG, Male
Handle
