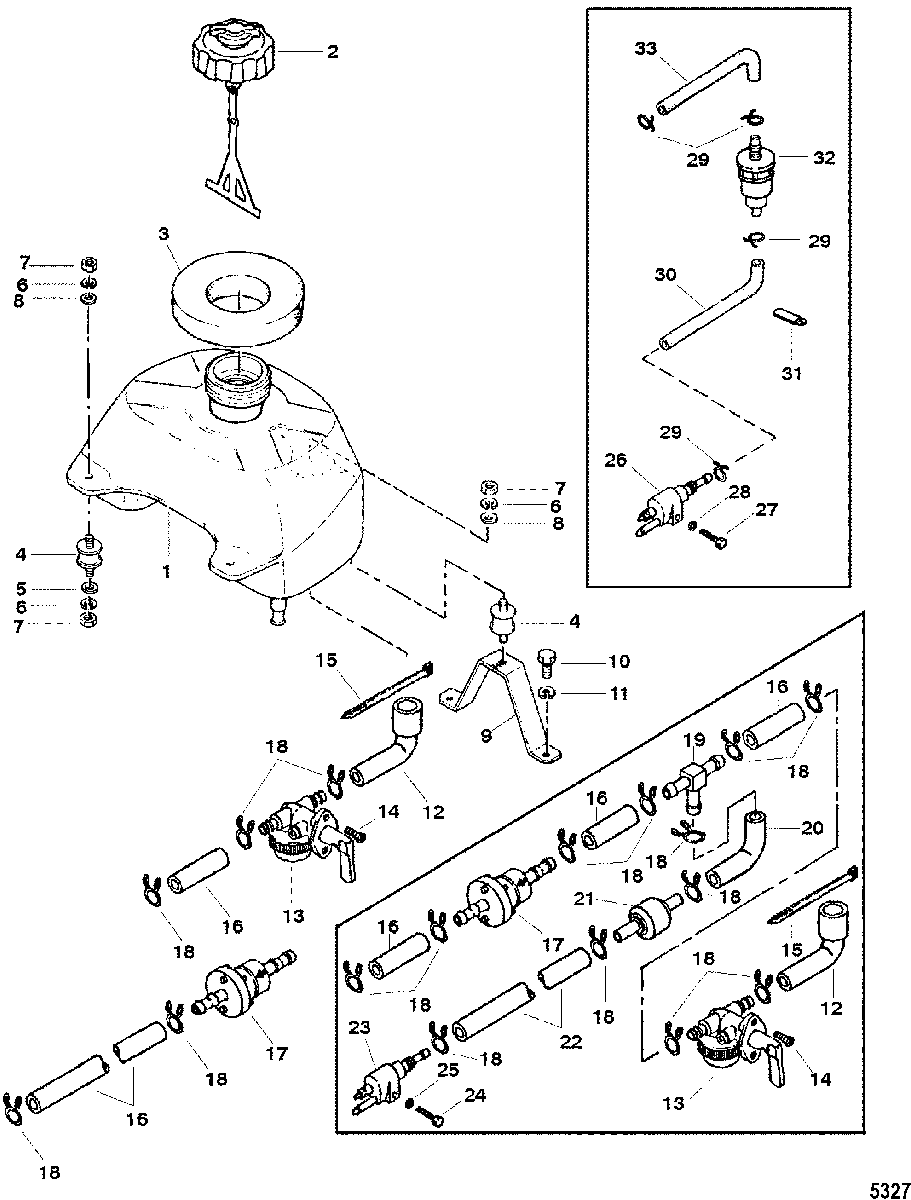

Fuel Tank для Mercury - 5 (2-STROKE) 0P017000 THRU 0P400999

№

Артикул

Название
1

1258-824964A03 TANK ASSEMBLY, Fuel

TANK ASSEMBLY, Fuel

0 ₽
2

36-8M0060029 CAP

CAP

1 960 ₽
3

26-8M0099393 SEAL

SEAL

730 ₽
4

16236 MOUNT

MOUNT

490 ₽
5

12-953921 WASHER, Stainless Steel

WASHER, Stainless Steel

230 ₽
6

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
7

11-400212 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

170 ₽
8

12-898101937 WASHER

WASHER

330 ₽
9

8M0046049 BRACKET

BRACKET

980 ₽
10

10-16832 BOLT, (M6 x 16)

BOLT, (M6 x 16)

190 ₽
11

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
12

22-815043 REDUCER ELBOW
(4 H.P.)

REDUCER ELBOW
(4 H.P.)

890 ₽
13

22-815045 FUEL COCK ASSEMBLY
(4 H.P.)

FUEL COCK ASSEMBLY
(4 H.P.)

2 690 ₽
14

10-815046 SCREW, Stainless Steel
(4 H.P.)

SCREW, Stainless Steel
(4 H.P.)

100 ₽
15

56762 CLAMP, Plastic
(4 H.P.)

CLAMP, Plastic
(4 H.P.)

30 ₽
16

32-8M0057113 LINE, Fuel (1000 mm)
(4 H.P.)

LINE, Fuel (1000 mm)
(4 H.P.)

1 980 ₽
17

35-16248 FILTER, Fuel
(4 H.P.)

FILTER, Fuel
(4 H.P.)

640 ₽
18

54-95395 CLIP, Stainless Steel
(4 H.P.)

CLIP, Stainless Steel
(4 H.P.)

200 ₽
12

22-815043 REDUCER ELBOW
(5 H.P.)

REDUCER ELBOW
(5 H.P.)

890 ₽
13

22-815045 FUEL COCK ASSEMBLY
(5 H.P.)

FUEL COCK ASSEMBLY
(5 H.P.)

2 690 ₽
14

10-815046 SCREW, Stainless Steel
(5 H.P.)

SCREW, Stainless Steel
(5 H.P.)

100 ₽
15

56762 CLAMP, Plastic
(5 H.P.)

CLAMP, Plastic
(5 H.P.)

30 ₽
16

32-8M0057113 LINE, Fuel (1000 mm)
(5 H.P.)

LINE, Fuel (1000 mm)
(5 H.P.)

1 980 ₽
17

35-16248 FILTER, Fuel
(5 H.P.)

FILTER, Fuel
(5 H.P.)

640 ₽
18

54-95395 CLIP, Stainless Steel
(5 H.P.)

CLIP, Stainless Steel
(5 H.P.)

200 ₽
19

22-73318 TEE, Plastic
(5 H.P.)

TEE, Plastic
(5 H.P.)

330 ₽
20

32-815049 HOSE, Rubber
(5 H.P.)

HOSE, Rubber
(5 H.P.)

360 ₽
21

22-815048 CONNECTOR, Plastic
(5 H.P.)

CONNECTOR, Plastic
(5 H.P.)

1 960 ₽
22

32-8M0057113 HOSE, Rubber (110 mm)
(5 H.P.)

HOSE, Rubber (110 mm)
(5 H.P.)

1 980 ₽
23

22-15781A5 CONNECTOR, Fuel - Brass
(5 H.P.)

CONNECTOR, Fuel - Brass
(5 H.P.)

2 100 ₽
24

10-4000333 SCREW, (M6 x 40)
(5 H.P.)

SCREW, (M6 x 40)
(5 H.P.)

290 ₽
25

12-16826 WASHER, Stainless Steel
(5 H.P.)

WASHER, Stainless Steel
(5 H.P.)

110 ₽
26

22-15781A5 CONNECTOR, Fuel - Brass
(5 H.P.)

CONNECTOR, Fuel - Brass
(5 H.P.)

2 100 ₽
27

10-4000333 SCREW, (M6 x 40)
(5 H.P.)

SCREW, (M6 x 40)
(5 H.P.)

290 ₽
28

12-16826 WASHER, Stainless Steel
(5 H.P.)

WASHER, Stainless Steel
(5 H.P.)

110 ₽
29

54-95395 CLIP, Stainless Steel
(5 H.P.)

CLIP, Stainless Steel
(5 H.P.)

200 ₽
30

32-17668 HOSE
(5 H.P.)

HOSE
(5 H.P.)

520 ₽
31

54-813275 CLAMP
(5 H.P.)

CLAMP
(5 H.P.)

200 ₽
32

35-16248 FILTER, Fuel
(5 H.P.)

FILTER, Fuel
(5 H.P.)

640 ₽
33

32-17669 HOSE
(5 H.P.)

HOSE
(5 H.P.)

490 ₽
