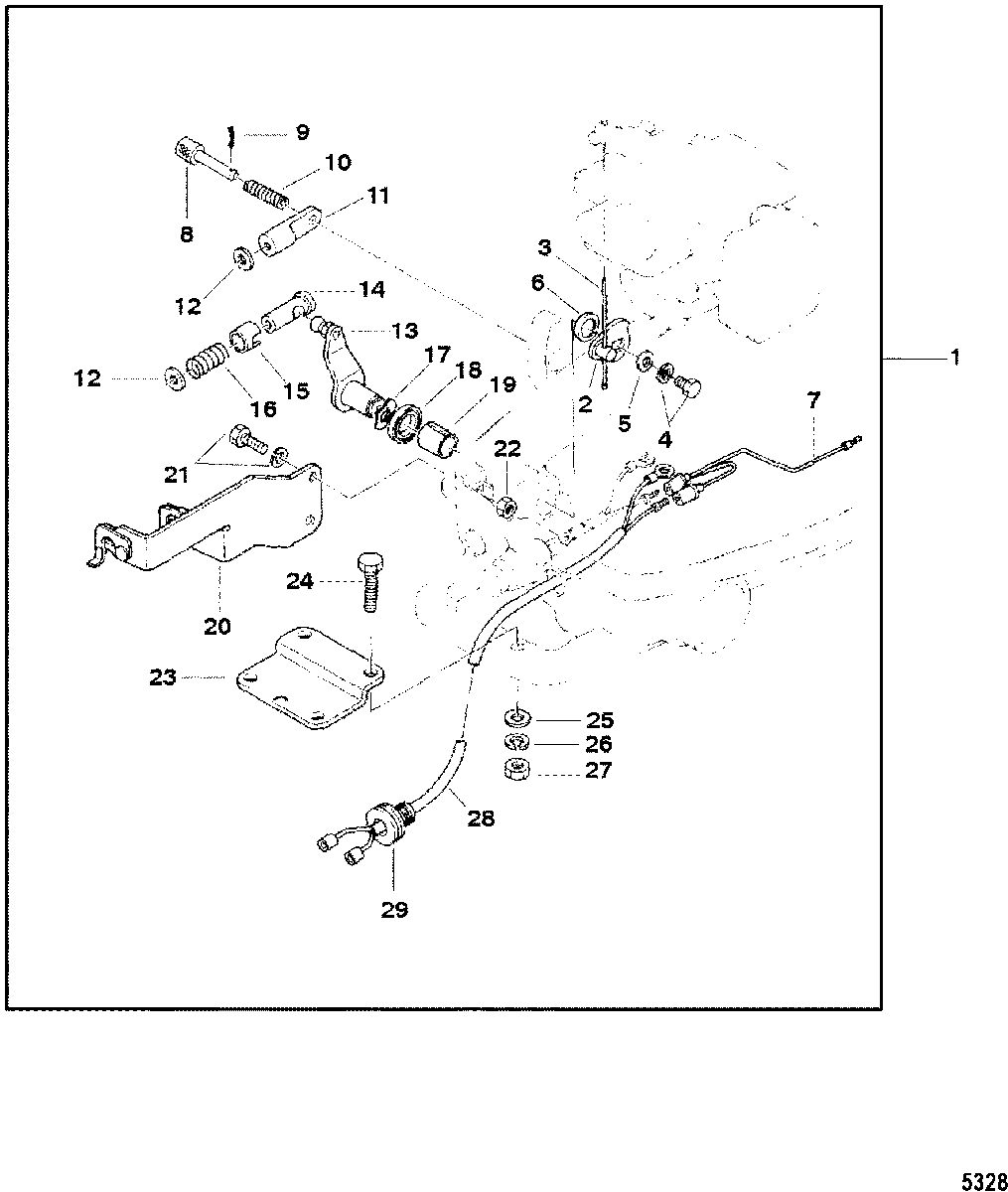

Remote Control Attaching Kit для Mercury - 5 (2-STROKE) 0P017000 THRU 0P400999
-
№АртикулНазвание
-
116840A2 ATTACHING KIT, Remote ControlATTACHING KIT, Remote Control
-
216848 LEVERLEVER
-
317034 WIRE, ThrottleWIRE, Throttle
-
410-162111 BOLTBOLT
-
512-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
623-16849 COLLARCOLLAR
-
784-17035 HARNESS ASSEMBLY (DUAL STOP SWITCH)HARNESS ASSEMBLY (DUAL STOP SWITCH)
-
817-17031 PIN, LockPIN, Lock
-
917-17033 PINPIN
-
1024-17032 SPRINGSPRING
-
1117030 SLEEVESLEEVE
-
1212-17029 WASHERWASHER
-
1316847 LEVER, ThrottleLEVER, Throttle
-
1417026 BRACKETBRACKET
-
1517027 CAPCAP
-
1624-17028 SPRINGSPRING
-
1713-16221 WAVE WASHERWAVE WASHER
-
1826-16219 SEALSEAL
-
1923-16220 BUSHINGBUSHING
-
2017023 BRACKETBRACKET
-
2110-162233 SCREWSCREW
-
2211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2317024 PLATE, Steering HookPLATE, Steering Hook
-
2410-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2512-16192 WASHERWASHER
-
2613-17025 LOCKWASHERLOCKWASHER
-
2711-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2884-17162 HARNESS ASSEMBLY (5.9M)HARNESS ASSEMBLY (5.9M)
-
2925-16823 GROMMETGROMMET
