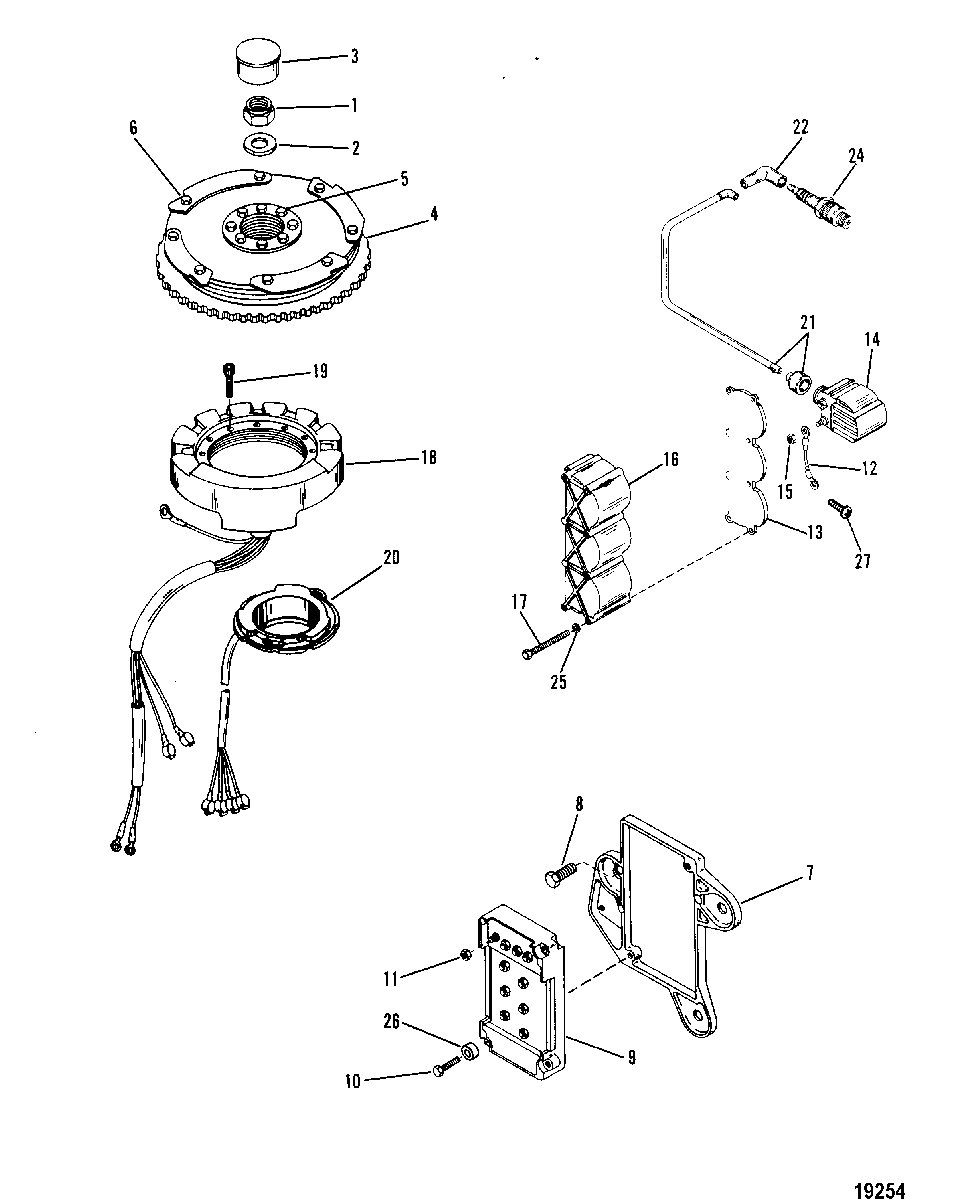

Flywheel, Switch Box, Ignition Coil and Stator для Mercury - 50 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
111-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
212-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUTWASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
-
319-45907 PLUG, Yellow, FLYWHEEL PULLER THREADSPLUG, Yellow, FLYWHEEL PULLER THREADS
-
4248-8722A5 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
510-68997 SCREW, (.312-24 x .750), PLATE/HUBSCREW, (.312-24 x .750), PLATE/HUB
-
610-32417 SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEELSCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
-
7889351 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
810-824941 SCREW, (.312-18 x .750), SWITCH BOX PLATESCREW, (.312-18 x .750), SWITCH BOX PLATE
-
9332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1010-20619 SCREW, (#12-24 x 1.25), SWITCH BOX TO PLATESCREW, (#12-24 x 1.25), SWITCH BOX TO PLATE
-
1111-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
1284-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN)WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN) -
1284-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/WHITE)WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/WHITE) -
1284-68896A4 WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/RED)WIRE ASSEMBLY, SWITCH BOX TO COIL
(GREEN/RED) -
1284-88807A9 CABLE ASSEMBLY, SWITCH BOX TO COIL
(BLACK-4")CABLE ASSEMBLY, SWITCH BOX TO COIL
(BLACK-4") -
1284-88807A13 CABLE ASSEMBLY, SWITCH BOX TO COIL
(BLACK-5-1/4")CABLE ASSEMBLY, SWITCH BOX TO COIL
(BLACK-5-1/4") -
1373439 PLATE, MOUNTING-IGNITION COILPLATE, MOUNTING-IGNITION COIL
-
14339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1511-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
1643542 COVER, IGNITION COILCOVER, IGNITION COIL
-
1710-92399 SCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATESCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATE
-
18398-5704A7 STATOR ASSEMBLYSTATOR ASSEMBLY
-
1910-63136 SCREW, (#10-24 x .880), STATOR TO UPPER END CAPSCREW, (#10-24 x .880), STATOR TO UPPER END CAP
-
2096455A8 PLATE ASSEMBLY, TriggerPLATE ASSEMBLY, Trigger
-
2184-813715A6 WIRE ASSEMBLY, SPARK PLUGWIRE ASSEMBLY, SPARK PLUG
-
2285-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
2433-97180Q SPARK PLUGSPARK PLUG
-
2433-14103550 SPARK PLUG, (NGK-BUZHW) (CANADA AND BELGIUM)SPARK PLUG, (NGK-BUZHW) (CANADA AND BELGIUM)
-
2512-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, COIL COVER SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, COIL COVER SCREW
-
2623-94304 SPACERSPACER
-
2710-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
2710-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
