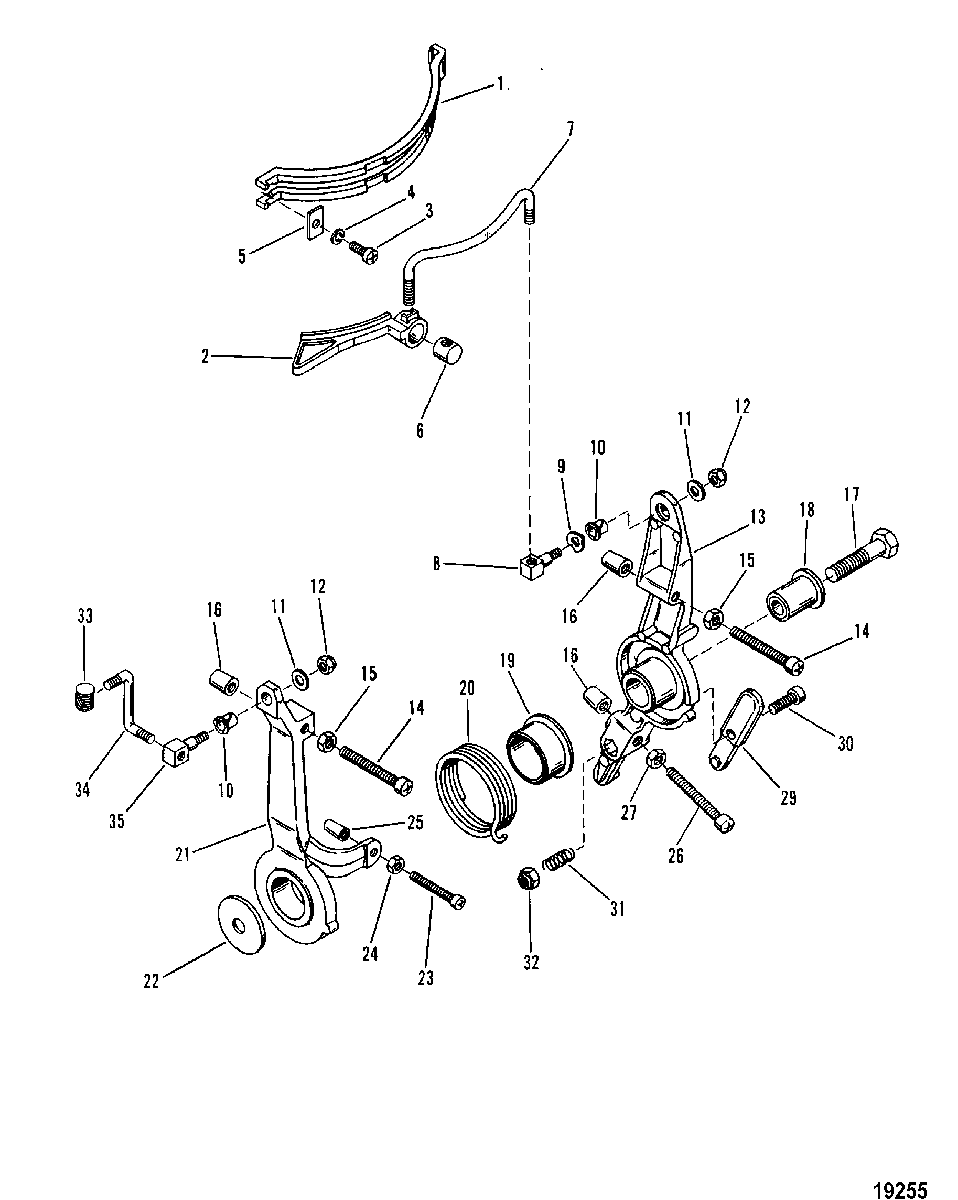

Throttle Linkage для Mercury - 50 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
176864 HOUSING, NYLON-THROTTLE ACTUATORHOUSING, NYLON-THROTTLE ACTUATOR
-
277025 CAM, NYLON-THROTTLE ACTUATORCAM, NYLON-THROTTLE ACTUATOR
-
310-37571 SCREW, (.190-32 x .500), HOUSINGSCREW, (.190-32 x .500), HOUSING
-
413-26996 LOCKWASHER, (#10) Stainless Steel, HOUSING SREWLOCKWASHER, (#10) Stainless Steel, HOUSING SREW
-
560570 PLATE, RETAINER-ACTUATOR HOUSINGPLATE, RETAINER-ACTUATOR HOUSING
-
623-74213 BARREL, NYLON-THROTTLE LINK RODBARREL, NYLON-THROTTLE LINK ROD
-
774164 ROD, LINK-THROTTLEROD, LINK-THROTTLE
-
877013A1 SWIVEL, LINK TO THROTTLE CONTROL LEVERSWIVEL, LINK TO THROTTLE CONTROL LEVER
-
913-29402 WAVE WASHER, LINK ROD SWIVELWAVE WASHER, LINK ROD SWIVEL
-
1023-26856 BUSHING, LINK ROD SWIVELBUSHING, LINK ROD SWIVEL
-
1112-73288 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
1211-45774 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
1377032A2 LEVER ASSEMBLY, THROTTLE CONTROLLEVER ASSEMBLY, THROTTLE CONTROL
-
1410-67916 SCREW, THROTTLE LEVER ADJUSTING (2")SCREW, THROTTLE LEVER ADJUSTING (2")
-
1511-29598 NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREWNUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
-
1652023 CAP, ADJUSTINTG SCREWCAP, ADJUSTINTG SCREW
-
1710-818165 SCREW, (.375-16 x 1.75), THROTTLE CONTROL LEVERSCREW, (.375-16 x 1.75), THROTTLE CONTROL LEVER
-
1823-55164 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
1923-55171 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2024-55162 SPRINGSPRING
-
2177031A2 LEVER ASSEMBLY, SPARK ADVANCELEVER ASSEMBLY, SPARK ADVANCE
-
2212-46765 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
2310-32627 SCREW, (.190-32 x 1.50), SPARK ADVANCE ADJUSTINGSCREW, (.190-32 x 1.50), SPARK ADVANCE ADJUSTING
-
2411-68219 NUT, (#10-32) Stainless Steel, ADJUSTING SCREWNUT, (#10-32) Stainless Steel, ADJUSTING SCREW
-
2548039 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
2610-77650 SCREW, SPARK ADVANCE LEVER ADJUSTINGSCREW, SPARK ADVANCE LEVER ADJUSTING
-
2711-29598 NUT, (.250-28) Stainless Steel, JAM-ADUSTING SCREWNUT, (.250-28) Stainless Steel, JAM-ADUSTING SCREW
-
2852023 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
2939483 LATCH, THROTTLE CONTROL LEVERLATCH, THROTTLE CONTROL LEVER
-
3010-69026 SCREW, (.250-28 x .880), LATCH TO THROTTLE CONTROL LEVERSCREW, (.250-28 x .880), LATCH TO THROTTLE CONTROL LEVER
-
3124-20099 SPRING, COMPRESSION-LATCH SCREWSPRING, COMPRESSION-LATCH SCREW
-
3211-826709109 NUT, (.250-28), LATCH ATTACHING SCREWNUT, (.250-28), LATCH ATTACHING SCREW
-
3374897T PIVOT, LINK ROD TO STATORPIVOT, LINK ROD TO STATOR
-
3474212 ROD, LINK-SPARK ADVANCEROD, LINK-SPARK ADVANCE
-
3577013A1 SWIVEL, LINK ROD TO SPARK ADVANCE LEVERSWIVEL, LINK ROD TO SPARK ADVANCE LEVER
