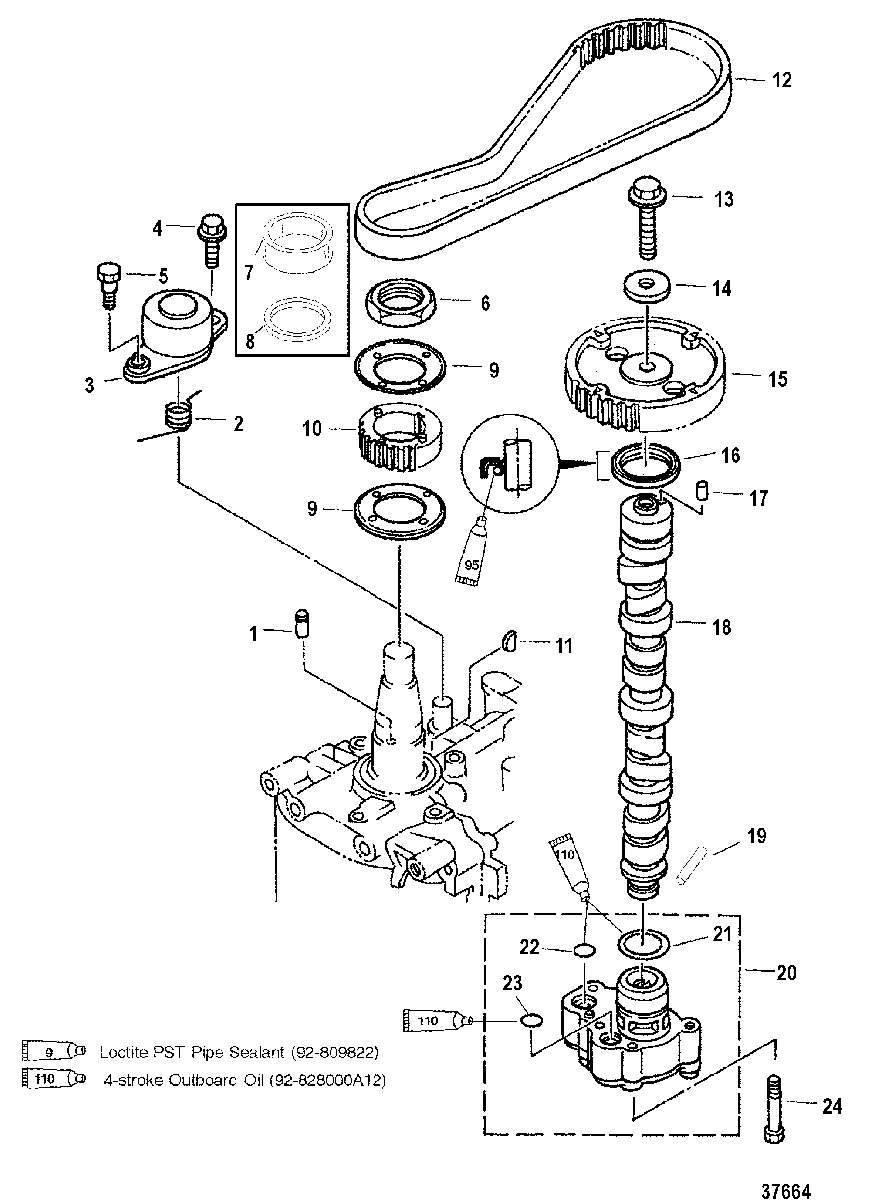

CAMSHAFT/OIL PUMP для Mercury - 50 BIGFOOT (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
117-825087 PIN (INCLUDED WITH CYL. BLOCK)PIN (INCLUDED WITH CYL. BLOCK)
-
224-825088 SPRINGSPRING
-
3824796A1 TENSIONER ASSEMBLYTENSIONER ASSEMBLY
-
410-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
510-826165 SCREWSCREW
-
611-825085 NUT
SN# 0G437999 & BelowNUT
SN# 0G437999 & Below -
723-850522 SPACER
SN# 0G438000 & UpSPACER
SN# 0G438000 & Up -
8834838 LOAD RING
SN# 0G438000 & UpLOAD RING
SN# 0G438000 & Up -
912-825082 WASHERWASHER
-
10825083T GEAR, DriveGEAR, Drive
-
1128-893761 KEYKEY
-
12825109 BELTBELT
-
1310-82761140 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
1412-4002319 WASHERWASHER
-
15825108 GEAR, DrivenGEAR, Driven
-
1626-825048 SEAL, OilSEAL, Oil
-
1717-825956 PIN, DowelPIN, Dowel
-
182407-8250471 CAMSHAFTCAMSHAFT
-
1917-826149 PINPIN
-
20825058A1 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
2125-826152 O-RINGO-RING
-
2225-826154 O-RINGO-RING
-
2325-826153 O-RINGO-RING
-
2410-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
-27-832013A96 GASKET SETGASKET SET
-
-61-822775T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-822775A98 POWERHEAD ASSEMBLY
(BIGFOOT)POWERHEAD ASSEMBLY
(BIGFOOT) -
-825034A17 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
