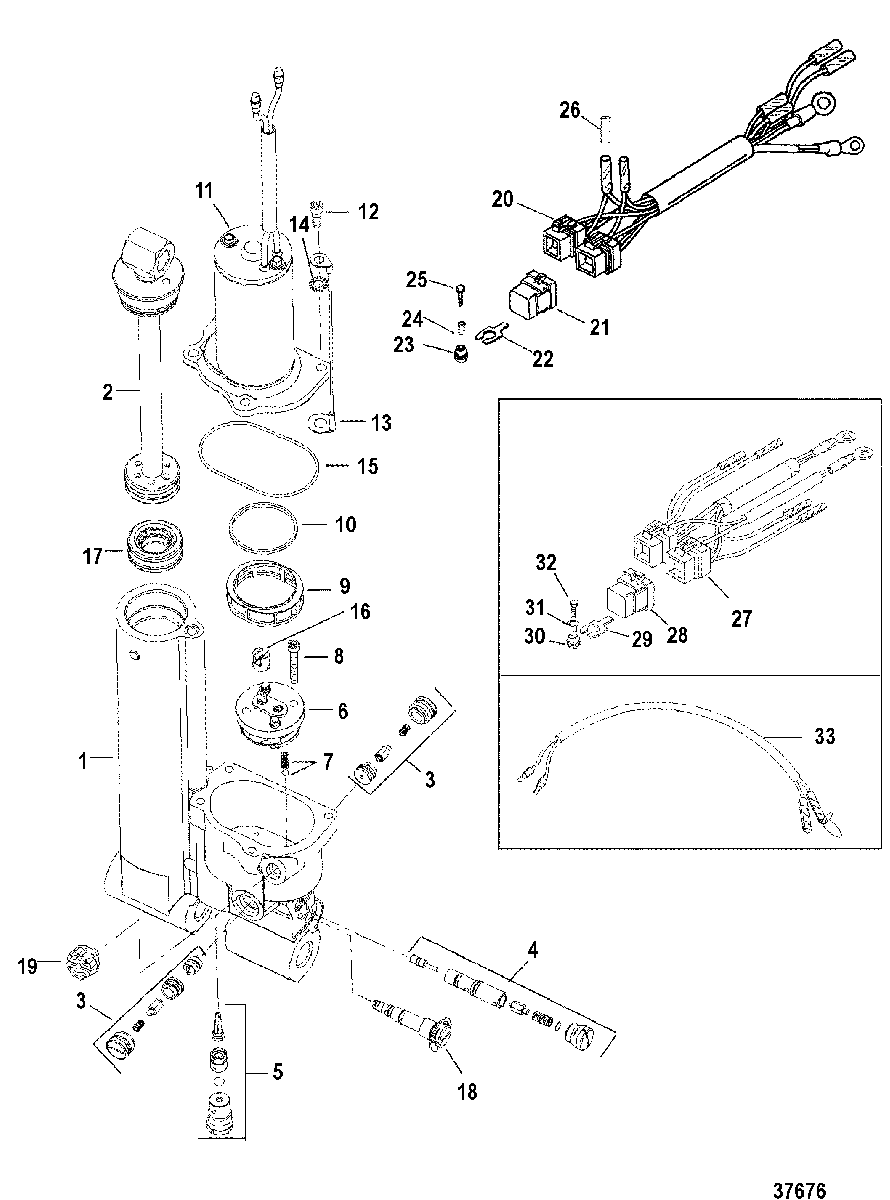

POWER TRIM(NON BIGFOOT) для Mercury - 50 BIGFOOT (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
1822344T14 POWER TRIMPOWER TRIM
-
-25-827668A1 O-RING KITO-RING KIT
-
2893931A01 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
3827671A1 PILOT CHECK ASSEMBLYPILOT CHECK ASSEMBLY
-
4827672A1 TILT RELIEF VALVE ASSEMBLYTILT RELIEF VALVE ASSEMBLY
-
5827673A1 SEAT ASSEMBLY, SuctionSEAT ASSEMBLY, Suction
-
6827674A1 PUMP ASSEMBLYPUMP ASSEMBLY
-
7NSS NOT SOLD SEPARATE, Spring/down Relief BallNOT SOLD SEPARATE, Spring/down Relief Ball
-
8NSS NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 IN.)NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 IN.)
-
9NSS NOT SOLD SEPARATE, FilterNOT SOLD SEPARATE, Filter
-
10NSS NOT SOLD SEPARATE, Seal RingNOT SOLD SEPARATE, Seal Ring
-
11827675A1 MOTOR ASSEMBLYMOTOR ASSEMBLY
-
12NSS NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 IN.)NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 IN.)
-
1388238A15 CABLE ASSEMBLYCABLE ASSEMBLY
-
14NSS NOT SOLD SEPARATE, LockwasherNOT SOLD SEPARATE, Lockwasher
-
15NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
16NSS NOT SOLD SEPARATE, CouplerNOT SOLD SEPARATE, Coupler
-
17827676 PISTON, MemoryPISTON, Memory
-
18893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
1919-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
-84-819514A57 HARNESS ASSEMBLY, Trim
SN# 0G472132 & BelowHARNESS ASSEMBLY, Trim
SN# 0G472132 & Below -
2084-819514A58 HARNESS ASSEMBLY, Trim
SN# 0G472132 & BelowHARNESS ASSEMBLY, Trim
SN# 0G472132 & Below -
21821509T01 RELAY
SN# 0G472132 & BelowRELAY
SN# 0G472132 & Below -
22882751A1 BRACKET
SN# 0G472132 & BelowBRACKET
SN# 0G472132 & Below -
2325-818967 GROMMET
SN# 0G472132 & BelowGROMMET
SN# 0G472132 & Below -
2423-818968 BUSHING
SN# 0G472132 & BelowBUSHING
SN# 0G472132 & Below -
2510-8248326 SCREW, (M6 x 25 MM)
SN# 0G472132 & BelowSCREW, (M6 x 25 MM)
SN# 0G472132 & Below -
2613541 PLUG, Male
SN# 0G472132 & BelowPLUG, Male
SN# 0G472132 & Below -
-84-826802A14 HARNESS/RELAY ASSEMBLY, Trim
SN# 0G472133 & UpHARNESS/RELAY ASSEMBLY, Trim
SN# 0G472133 & Up -
2784-826802A9 HARNESS ASSEMBLY, Trim
SN# 0G472133 & UpHARNESS ASSEMBLY, Trim
SN# 0G472133 & Up -
28882751A1 RELAY ASSEMBLY
SN# 0G472133 & UpRELAY ASSEMBLY
SN# 0G472133 & Up -
29828102 BRACKET
SN# 0G472133 & UpBRACKET
SN# 0G472133 & Up -
3025-818967 GROMMET
SN# 0G472133 & UpGROMMET
SN# 0G472133 & Up -
3123-818968 BUSHING
SN# 0G472133 & UpBUSHING
SN# 0G472133 & Up -
3210-8248326 SCREW, (M6 x 25 MM)
SN# 0G472133 & UpSCREW, (M6 x 25 MM)
SN# 0G472133 & Up -
3384-852539A1 HARNESS ASSEMBLY, Adaptor
SN# 0G472133 & UpHARNESS ASSEMBLY, Adaptor
SN# 0G472133 & Up
