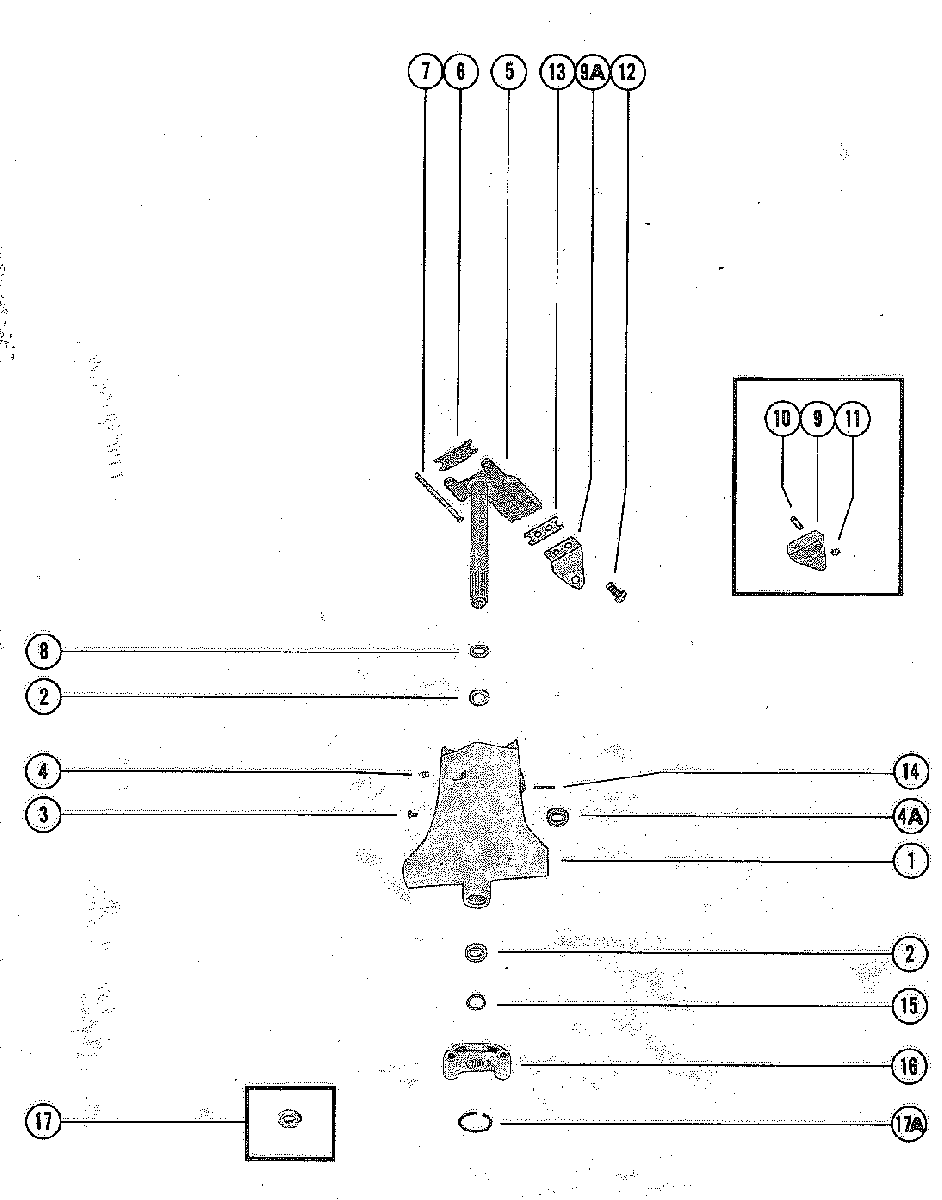

SWIVEL BRACKET ASSEMBLY для Mercury - 500, 50 4357640 THRU 5531629
-
№АртикулНазвание
-
11489-8597A4 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOWSWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW -
11490-8599A6 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
11489-8597A4 SWIVEL ASSEMBLY (SHORT SHAFT)
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPSWIVEL ASSEMBLY (SHORT SHAFT)
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
11490-8599A6 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
226-32911 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
310-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
422-74036 FITTING, GREASEFITTING, GREASE
-
4A26-22734 OIL SEAL, SWIVEL BRACKET
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPOIL SEAL, SWIVEL BRACKET
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
574316A2 SWIVEL PIN ASS"Y (SHORT SHAFT)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWSWIVEL PIN ASS"Y (SHORT SHAFT)
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
574316A1 SWIVEL PIN ASS"Y (LONG SHAFT)SWIVEL PIN ASS"Y (LONG SHAFT)
-
588798A23 SWIVEL PIN ASS"Y (SHORT SHAFT) - MANUAL
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPSWIVEL PIN ASS"Y (SHORT SHAFT) - MANUAL
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
588798A24 SWIVEL PIN ASS"Y (LONG SHAFT)SWIVEL PIN ASS"Y (LONG SHAFT)
-
569540A3 SWIVEL PPIN ASS'Y (SHORT SHAFT) - ELECTRICSWIVEL PPIN ASS'Y (SHORT SHAFT) - ELECTRIC
-
569540A4 SWIVEL PIN ASS'Y (LONG SHAFT)SWIVEL PIN ASS'Y (LONG SHAFT)
-
630711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
710-33986 BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4")BOLT, UPPER MOUNT TO SWIVEL PIN (5 1/4")
-
812-47606 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
976535T BRACKET, RIDE-GUIDE ATTACHING
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597BRACKET, RIDE-GUIDE ATTACHING
UNITED STATES 4357640 THRU 4576236
AUSTRALIA 8030090 THRU 8042649
BELGIUM 9107214 THRU 9136249 CANADA 7068998 THRU 7088597 -
1016-39781 STUD, BRACKET TO STEERING ARM (1 1/4")STUD, BRACKET TO STEERING ARM (1 1/4")
-
1111-8M0042636 NUT, BRACKET STUDNUT, BRACKET STUD
-
9A76535T BRACKET, RIDE-GUIDE ATTACHING
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UPBRACKET, RIDE-GUIDE ATTACHING
UNITED STATES 4576237 AND UP
AUSTRALIA 8042650 AND UP
BELGIUM 9136250 AND UP
CANADA 7088598 AND UP -
1210-34352 SCREW, BRACKET TO STEERING ARM (7/8")SCREW, BRACKET TO STEERING ARM (7/8")
-
1376533 STRAP, BRACKET SCREWSTRAP, BRACKET SCREW
-
1417-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
1512-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
1512-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
-
1677416T1 YOKE, BOTTOM
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWYOKE, BOTTOM
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
1711-71956 NUT, BOTTOM YOKENUT, BOTTOM YOKE
-
1677416T1 YOKE, BOTTOM
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPYOKE, BOTTOM
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
17A53-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
