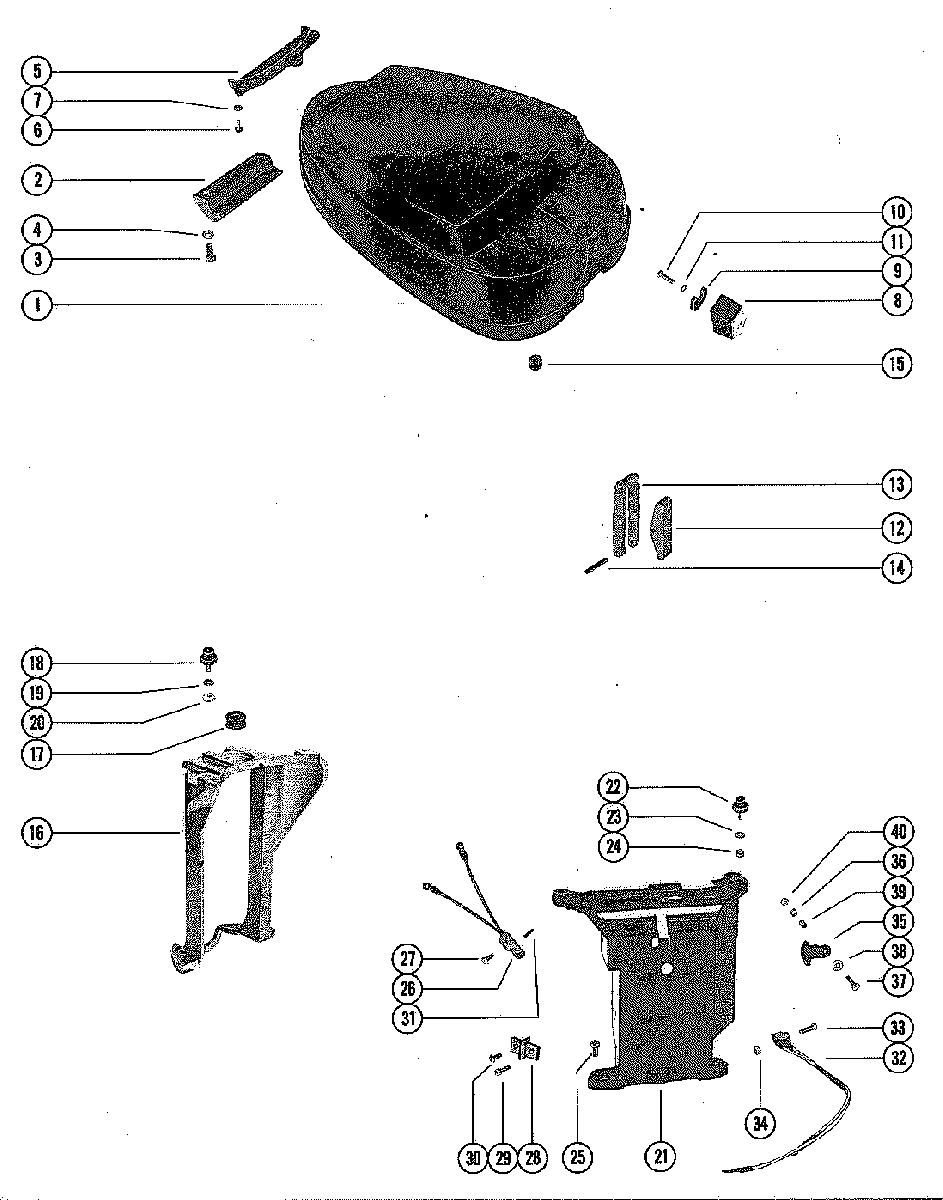

TOP COWL ASSEMBLY для Mercury - 500, 50 4357640 THRU 5531629
-
№АртикулНазвание
-
12153-7938 TOP COWL (MANUAL)TOP COWL (MANUAL)
-
12153-7937A8 TOP COL (ELECTRIC)TOP COL (ELECTRIC)
-
255455 HOOK, TOP COWL ALTCH - REARHOOK, TOP COWL ALTCH - REAR
-
310-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
413-26992 LOCKWASHER, REAR HOOK MOUNTING SCREWLOCKWASHER, REAR HOOK MOUNTING SCREW
-
537690 SHIELD, REAR - TOP COWLSHIELD, REAR - TOP COWL
-
610-37370 SCREW, REAR SHIELD TO TOP COWLSCREW, REAR SHIELD TO TOP COWL
-
713-37371 LOCKWASHER, REAR SHIELD SCREWLOCKWASHER, REAR SHIELD SCREW
-
855459A5 RETAINER ASSEMBLY, TOP COWLRETAINER ASSEMBLY, TOP COWL
-
935496 PAD, BUMPER - TOP COWL RETAINERPAD, BUMPER - TOP COWL RETAINER
-
1010-35386 SCREW, RETAINER TO TOP COW (1")SCREW, RETAINER TO TOP COW (1")
-
1113-39107 LOCKWASHER, RETIANER TO TOP COWL SCREWLOCKWASHER, RETIANER TO TOP COWL SCREW
-
1294918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1352739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1417-58998 PIN, COWL LATCH LEVER TO HINGEPIN, COWL LATCH LEVER TO HINGE
-
1525-20116 GROMMET, CHOKE KNOB - TOP COWL (MANUAL)GROMMET, CHOKE KNOB - TOP COWL (MANUAL)
-
16720201 BRACKET, REAR COWL SUPPORTBRACKET, REAR COWL SUPPORT
-
1860577 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1912-69056 WASHER, REAR SUPPORT BRACKET RUBBER MOUNTWASHER, REAR SUPPORT BRACKET RUBBER MOUNT
-
2011-29598 NUT, REAR SUPPORT BRACKET RUBBER MOUNTNUT, REAR SUPPORT BRACKET RUBBER MOUNT
-
2199150A5 BRACKET ASSEMBLY, FRONT SUPPORTBRACKET ASSEMBLY, FRONT SUPPORT
-
2231014 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
2313-26992 LOCKWASHER
FRONT SUPPORT BRACKET RUBBER MOUNTLOCKWASHER
FRONT SUPPORT BRACKET RUBBER MOUNT -
2411-29598 NUT, FRONT SUPPORT BRACKET RUBBER MOUNTNUT, FRONT SUPPORT BRACKET RUBBER MOUNT
-
2510-37562 SCREW
FRONT SUPPORT BRACKET TO BOTTOM COWL (1")SCREW
FRONT SUPPORT BRACKET TO BOTTOM COWL (1") -
2658124A20 SWITCH ASSEMBLY, MERCURYSWITCH ASSEMBLY, MERCURY
-
2710-69235 SCREW, SWITCH TO FRONT BRACKET (1/2")SCREW, SWITCH TO FRONT BRACKET (1/2")
-
2886-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2910-20411 SCREW
TEMRINAL BLOCK TO FRONT BRACKET (5/8")SCREW
TEMRINAL BLOCK TO FRONT BRACKET (5/8") -
3010-69079 SCREW, HARNESS LEADS ATTACHING (1/2")SCREW, HARNESS LEADS ATTACHING (1/2")
-
3117-36242 ROLL PINE, MERCURY SWITCHROLL PINE, MERCURY SWITCH
-
3287-74605A4 SWITCH ASSEMBLY
NEUTRAL START USE WITH TILLER HANDLE MODELSSWITCH ASSEMBLY
NEUTRAL START USE WITH TILLER HANDLE MODELS -
3310-64332 SCREW, SWITCH TO FRONT BRACKETSCREW, SWITCH TO FRONT BRACKET
-
3411-24832 NUT, SWITCH SCREWNUT, SWITCH SCREW
-
3597411 ACTUATOR, INTERLOCKACTUATOR, INTERLOCK
-
3624-88099 SPRING, INTERLOCK ACTUATORSPRING, INTERLOCK ACTUATOR
-
3710-37892 SCREW, ACTUATOR TO FRONT BRACKETSCREW, ACTUATOR TO FRONT BRACKET
-
3812-22887 WASHER, ACTUATOR SCREWWASHER, ACTUATOR SCREW
-
3923-88100 SPACER, ACTUATOR SCREWSPACER, ACTUATOR SCREW
-
4011-859124 NUT, ACTUATOR SCREWNUT, ACTUATOR SCREW
