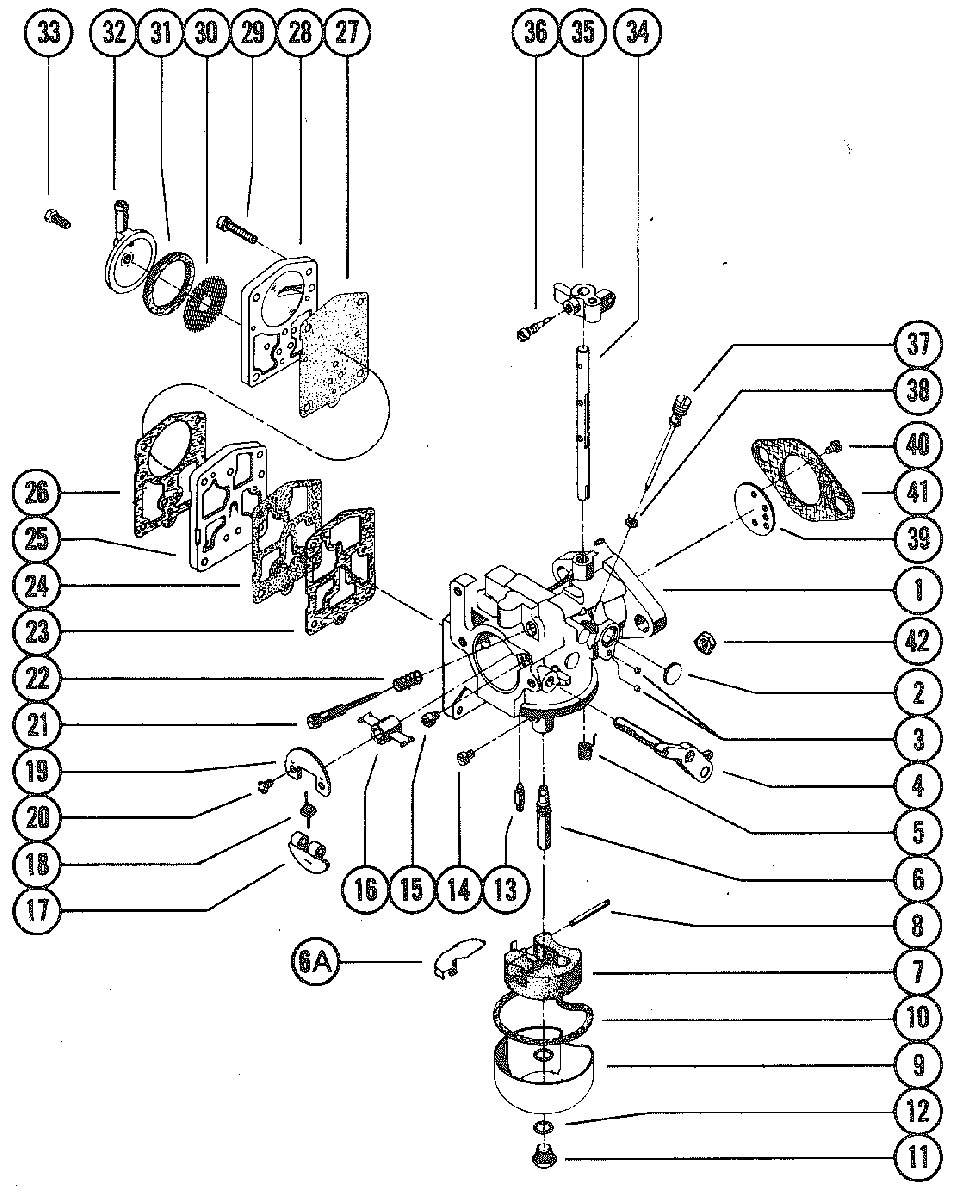

CARBURETOR ASSEMBLY для Mercury - 500, 50 9107214 THRU 9248005
-
№АртикулНазвание
-
11367-6517A61 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
290-8M0143356 WELCH PLUG, BODY CHANNEL (LARGE)WELCH PLUG, BODY CHANNEL (LARGE)
-
390-8M0143356 PLUG, BODY CHANNELPLUG, BODY CHANNEL
-
41395-9296A1 CHOKE SHAFTCHOKE SHAFT
-
590-8M0143356 SPRING, RETURN-THROTTLE SHAFTSPRING, RETURN-THROTTLE SHAFT
-
690-8M0143356 MAIN NOZZLEMAIN NOZZLE
-
6A814483 BAFFLE, FUEL BOWLBAFFLE, FUEL BOWL
-
71395-9293 FLOATFLOAT
-
890-8M0143356 PIN, FLOAT RETAININGPIN, FLOAT RETAINING
-
91399-5127 FUEL BOWLFUEL BOWL
-
1090-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
111399-5415 SCREW, FUEL BOWL TO CARBURETORSCREW, FUEL BOWL TO CARBURETOR
-
1290-8M0143356 GASKET, FUEL BOWL SCREWGASKET, FUEL BOWL SCREW
-
131395-9022 INLET NEEDLE AND SPRINGINLET NEEDLE AND SPRING
-
141399-1655 JET, MAIN FUEL (.055)JET, MAIN FUEL (.055)
-
151399-6249 JET, ECOMONIZER (.096)JET, ECOMONIZER (.096)
-
1669692 VENTURIVENTURI
-
171399-5194 VALVE, CHOKE RELIEFVALVE, CHOKE RELIEF
-
181399-5414 SPRING, CHOKE RELIEF VALVESPRING, CHOKE RELIEF VALVE
-
191399-5197 CHOKE SHUTTERCHOKE SHUTTER
-
2010-23035 SCREW, CHOKE SUTTER TO CHOKE SHAFTSCREW, CHOKE SUTTER TO CHOKE SHAFT
-
2190-8M0143356 SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
2290-8M0143356 SPRING, IDLE MIXTURE SCREWSPRING, IDLE MIXTURE SCREW
-
2390-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2490-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
251399-5129 BODY, FUEL PUMPBODY, FUEL PUMP
-
2690-8M0143356 GASKET, FUEL PUMP ATTACHINGGASKET, FUEL PUMP ATTACHING
-
2790-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
281364-5585 BODY, STRAINERBODY, STRAINER
-
291395-808612 SCREW, STRAINER BODY TO CARBURETORSCREW, STRAINER BODY TO CARBURETOR
-
301399-5758 SCREEN, STRAINERSCREEN, STRAINER
-
3190-8M0143356 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3299941 COVER, INLETCOVER, INLET
-
3390-8M0143356 SCREW, STRAINER COVER TO BODYSCREW, STRAINER COVER TO BODY
-
341399-2012 THROTTLE SHAFTTHROTTLE SHAFT
-
358146791 LEVER, THROTTLE (SEE NOTE BELOW)LEVER, THROTTLE (SEE NOTE BELOW)
-
361395-6027 SCREW, THROTTLE LEVER ATTACHINGSCREW, THROTTLE LEVER ATTACHING
-
3790-8M0143356 IDLE TUBEIDLE TUBE
-
3890-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
391399-6225 THROTTLE SHUTTERTHROTTLE SHUTTER
-
4090-8M0143356 SCREW, THROTTLE SHUTTER TO THROTTLE SHAFTSCREW, THROTTLE SHUTTER TO THROTTLE SHAFT
-
4127-757911 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
--1399-5198 GASKET SETGASKET SET
-
--1399-51991 REPAIR PARTS KITREPAIR PARTS KIT
-
--1399-5137 DIAPHRAGM AND GASKET KITDIAPHRAGM AND GASKET KIT
-
4211-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
-27-72486A32 GASKET SETGASKET SET
-
-27-72486A32 GASKET SETGASKET SET
