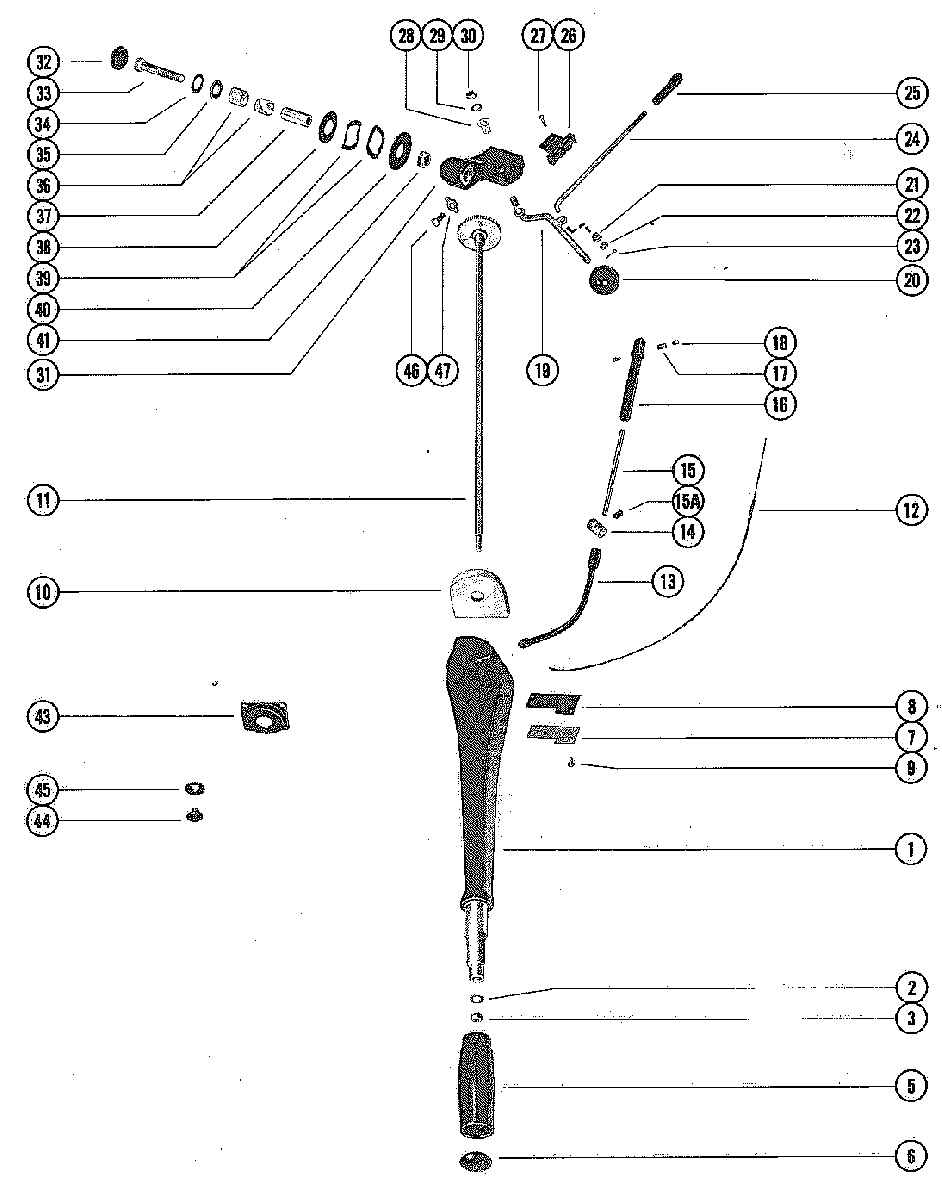

STEERING HANDLE ASSEMBLY для Mercury - 500, 50 9107214 THRU 9248005
-
№АртикулНазвание
-
-78551A5 STEERING HANDLE ASSEMBLYSTEERING HANDLE ASSEMBLY
-
148405A2 ARM, STEERING HANDLEARM, STEERING HANDLE
-
212-69056 WASHER, STEERING HANDLE ARMWASHER, STEERING HANDLE ARM
-
311-826709109 NUT, STEERING HANDLE ARMNUT, STEERING HANDLE ARM
-
558192A1 GRIP, STEERING HANDLE ARMGRIP, STEERING HANDLE ARM
-
648416T CAP, STEERING HANDLE GRIPCAP, STEERING HANDLE GRIP
-
748519 PLATE, COVER - DRIVE WHEELPLATE, COVER - DRIVE WHEEL
-
827-48518 GASKET, COVER PLATEGASKET, COVER PLATE
-
910-72169 SCREW
DRIVE WHEEL COVER PLATE FASTENING (1/2")SCREW
DRIVE WHEEL COVER PLATE FASTENING (1/2") -
1048414 HOUSING
DRIVE WHEEL - STEERING ARM HANDLEHOUSING
DRIVE WHEEL - STEERING ARM HANDLE -
1148516A1 DRIVE WHEEL AND ROD ASSEMBLYDRIVE WHEEL AND ROD ASSEMBLY
-
1248520 CABLE, THROTTLECABLE, THROTTLE
-
13785511 CONDUIT, CABLECONDUIT, CABLE
-
1489613 CONNECTOR, CONTROL LINKAGECONNECTOR, CONTROL LINKAGE
-
158M0026078 TUBE, THROTTLE CABLE GUIDETUBE, THROTTLE CABLE GUIDE
-
15A10-824081 SCREW, SET - THROTTLE CABLE GUIDE TUBESCREW, SET - THROTTLE CABLE GUIDE TUBE
-
1643433 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1720007 ANCHOR, THROTTLE CABLEANCHOR, THROTTLE CABLE
-
1810-20518 SCREW, THROTTLE CABLE ANCHORSCREW, THROTTLE CABLE ANCHOR
-
19485681 SHIFT LEVERSHIFT LEVER
-
2098530 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2123-48475 BUSHING, NYLON - SHIFT ROD (1/4"I.D.)BUSHING, NYLON - SHIFT ROD (1/4"I.D.)
-
2212-35950 WASHER, SHIFT RODWASHER, SHIFT ROD
-
2318-25191 COTTER PIN, SHIFT RODCOTTER PIN, SHIFT ROD
-
248128061 ROD, SHIFTROD, SHIFT
-
2548419T ROD END, SHIFT RODROD END, SHIFT ROD
-
2678812A1 DETENT, SHIFT LEVERDETENT, SHIFT LEVER
-
2710-48409 SCREW
SHIFT LEVER DETENT TO STEERING HANDLE BRACKETSCREW
SHIFT LEVER DETENT TO STEERING HANDLE BRACKET -
2823-48237 BUSHING, NYLON - SHIFT LEVER (3/8"I.D.)BUSHING, NYLON - SHIFT LEVER (3/8"I.D.)
-
2912-37828 WASHER, SHIFT LEVERWASHER, SHIFT LEVER
-
3011-8M0042636 NUT, SHIFT LEVER TO STEERING HANDLE BRACKETNUT, SHIFT LEVER TO STEERING HANDLE BRACKET
-
3148404T8 BRACKET, STEERING HANDLEBRACKET, STEERING HANDLE
-
3248416T CAP, STEERING HANDLE BRACKETCAP, STEERING HANDLE BRACKET
-
3310-823597 SCREW HANDLE BRACKET TO STEERING HANDLESCREW HANDLE BRACKET TO STEERING HANDLE
-
3412-48477 WASHER, STEERING HANDLE BRACKET (.505 I.D.)WASHER, STEERING HANDLE BRACKET (.505 I.D.)
-
3512-48526 WASHER
NYLON - STEERING HANDLE BRACKET (.630 I.D.)WASHER
NYLON - STEERING HANDLE BRACKET (.630 I.D.) -
3623-28919 BUSHING
NYLON - STEERING HANDLE BRACKET (5/8" I.D.)BUSHING
NYLON - STEERING HANDLE BRACKET (5/8" I.D.) -
3723-48525 SPACER, STEERING HANDLE BRACKETSPACER, STEERING HANDLE BRACKET
-
3812-38000 WASHER
NYLON - STEERING HANDLE BRACKET (1 35/64" O.D.)WASHER
NYLON - STEERING HANDLE BRACKET (1 35/64" O.D.) -
3913-48478 WAVE WASHER, STEERING HANDLE BRACKETWAVE WASHER, STEERING HANDLE BRACKET
-
4012-49636 WASHER
NYLON - STEERING HANDLE BRACKET (1 3/4" 0.D.)WASHER
NYLON - STEERING HANDLE BRACKET (1 3/4" 0.D.) -
4111-82671317 NUT, STEERING HANDLE BRACKET SCREWNUT, STEERING HANDLE BRACKET SCREW
-
4345064 COVER, BOTTOM COWL - SHORTING SWITCHCOVER, BOTTOM COWL - SHORTING SWITCH
-
4419-35827 PLUG, BOTTOM COWL - SHORTING SWITCH HOLEPLUG, BOTTOM COWL - SHORTING SWITCH HOLE
-
4511-30428 FASTENER, PLUG TO BOTTOM COWLFASTENER, PLUG TO BOTTOM COWL
-
4610-35786 SCREW, BRACKET TO ENGINE (1")SCREW, BRACKET TO ENGINE (1")
-
4714-43589 TAB WASHER, BRACKET SCREWTAB WASHER, BRACKET SCREW
-
--52148A1 CO-PILOT ASSEMBLYCO-PILOT ASSEMBLY
