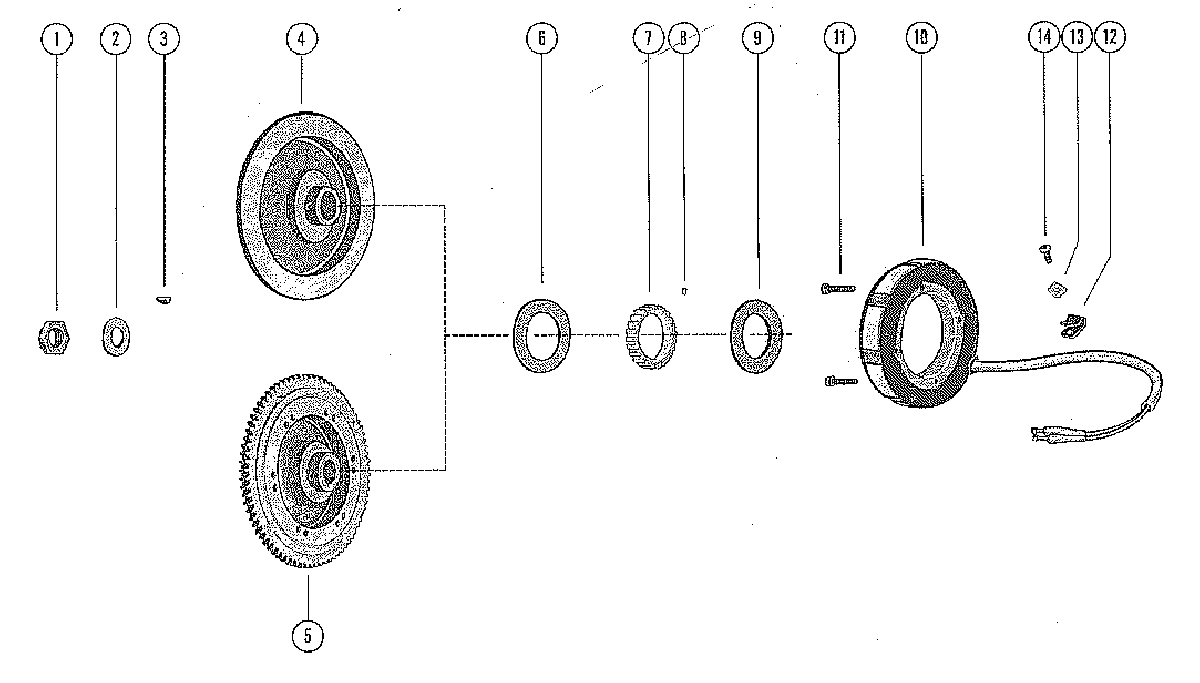

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 500 1639473 THRU 1755548
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4223-2402A7 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
4223-2402A7 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
5215-2026A2 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
5223-2403A10 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
629788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
730306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
817-26618 DOWEL PIN, PULLEY TO FLYWHEELDOWEL PIN, PULLEY TO FLYWHEEL
-
929787 HUB, FLANGE - FLYWHEEL PULLEYHUB, FLANGE - FLYWHEEL PULLEY
-
-10-96138 SCREW, FLEX PLATE TO FLYWHEELSCREW, FLEX PLATE TO FLYWHEEL
-
-50-35817 RATCHET, FLYWHEEL - FLEX PLATERATCHET, FLYWHEEL - FLEX PLATE
-
-10-32417 SCREW, PLATE AND RATCHET TO FLYWHEEL HUBSCREW, PLATE AND RATCHET TO FLYWHEEL HUB
-
10398-2085A1 STATOR, ALTERNATOR - FLYWHEELSTATOR, ALTERNATOR - FLYWHEEL
-
10398-2171 STATOR, ALTERNATOR - FLYWHEELSTATOR, ALTERNATOR - FLYWHEEL
-
1110-57021 SCREW, STATOR TO UPPER END CAPSCREW, STATOR TO UPPER END CAP
-
1254-24836 CLAMP, STATOR LEAD TO CRANKCASE FLANGECLAMP, STATOR LEAD TO CRANKCASE FLANGE
-
138M0084613 "D" WASHER, STATOR LEAD CLAMP SCREW"D" WASHER, STATOR LEAD CLAMP SCREW
-
1410-8M0113176 SCREW, STATOR LEAD CLAMP FASTENINGSCREW, STATOR LEAD CLAMP FASTENING
