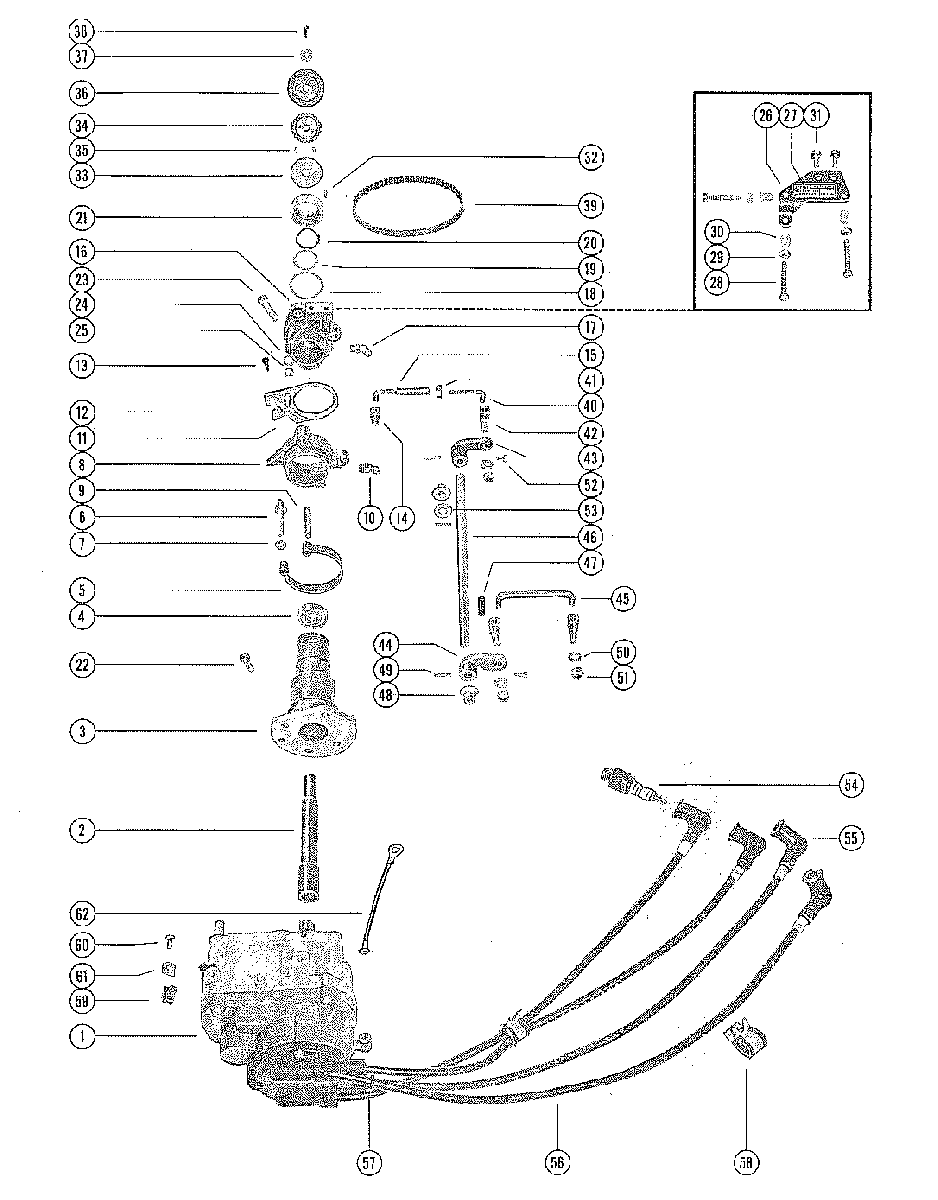

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 500 1639473 THRU 1755548
-
№АртикулНазвание
-
1394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4D-4)MAGNETO ASSEMBLY, COMPLETE (4D-4)
-
245-27951 SHAFT, MAGNETO DRIVESHAFT, MAGNETO DRIVE
-
-29321A7 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETEMAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
-
339560A1 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETEMAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
-
430-20066 BEARING, BALL - MAGNETO PILOTBEARING, BALL - MAGNETO PILOT
-
524-27944 SPRING, HORSESHOE - MAGNETO PILOTSPRING, HORSESHOE - MAGNETO PILOT
-
617-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOTPIN, ANCHOR - HORSESHOE SPRING TO PILOT
-
712-29245 WASHER, HORSESHOE SPRING TO ANCHOR PINWASHER, HORSESHOE SPRING TO ANCHOR PIN
-
827946A1 ECONOMISER COLLAR AND PIN ASSEMBLYECONOMISER COLLAR AND PIN ASSEMBLY
-
917-27961 PIN, ECONOMISER COLLAR - SPRING RETAINERPIN, ECONOMISER COLLAR - SPRING RETAINER
-
1022-25094 FITTING, GREASE - MAGNETO ADAPTORFITTING, GREASE - MAGNETO ADAPTOR
-
1138230A1 THROTTLE ACTUATOR ASSEMBLYTHROTTLE ACTUATOR ASSEMBLY
-
1223-26602 BUSHING, NYLON-THROTTLE ACTUATORBUSHING, NYLON-THROTTLE ACTUATOR
-
1310-31009 SCREW, THROTTLE ACTUATOR TO ECONOMISER COLLARSCREW, THROTTLE ACTUATOR TO ECONOMISER COLLAR
-
1427947 SWIVEL, LINKAGE - ECONOMISER COLLARSWIVEL, LINKAGE - ECONOMISER COLLAR
-
1525996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
1666856A1 ADAPTOR, MAGNETOADAPTOR, MAGNETO
-
1722-25094 FITTING, GREASE - MAGNETO ADAPTORFITTING, GREASE - MAGNETO ADAPTOR
-
1812-27939 WASHER, MAGNETO PILOTWASHER, MAGNETO PILOT
-
1914-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
2013-27959 WASHER, WAVE - MAGNETO BALL BEARING TENSIONWASHER, WAVE - MAGNETO BALL BEARING TENSION
-
2127955 CAP, MAGNETO ADAPTOR AND PILOT FASTENINGCAP, MAGNETO ADAPTOR AND PILOT FASTENING
-
2210-30110 SCREW, ADAPTOR AND PILOT TO MAGNETOSCREW, ADAPTOR AND PILOT TO MAGNETO
-
2310-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASESCREW, ADAPTOR AND PILOT TO CRANKCASE
-
2412-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREWWASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
2511-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREWNUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
2653458 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
2737-29315 DECAL, THROTTLE STOP PLATE (STOP THROTTLE STOP PLATE (STOP A))DECAL, THROTTLE STOP PLATE (STOP THROTTLE STOP PLATE (STOP A))
-
2810-24933 SCREW, THROTTLE STOP ADJUSTINGSCREW, THROTTLE STOP ADJUSTING
-
2911-20088 NUT, THROTTLE STOP ADJUSTING SCREWNUT, THROTTLE STOP ADJUSTING SCREW
-
3026852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
3110-69035 SCREW, THROTTLE STOP PLATE TO ADAPTORSCREW, THROTTLE STOP PLATE TO ADAPTOR
-
3228-28657 KEY, MAGNETO DRIVINGKEY, MAGNETO DRIVING
-
3329784 HUB, DRIVEN PULLYHUB, DRIVEN PULLY
-
3429783A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3517-24873 ROLL PIN, FLANGE LOCATINGROLL PIN, FLANGE LOCATING
-
3629785 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
3712-20138 WASHER, PULLEY CLAMPING SCREWWASHER, PULLEY CLAMPING SCREW
-
3810-32228 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
3920140 BELT, TIMINGBELT, TIMING
-
4027949 RUD, LINK - UPPERRUD, LINK - UPPER
-
4111-25168 NUT, UPPER LINK ROD ADJUSTINGNUT, UPPER LINK ROD ADJUSTING
-
4227948 SWIVEL, UPPER AND LOWER LINK RODSSWIVEL, UPPER AND LOWER LINK RODS
-
4328061 LEVER, LINKAGE - UPPERLEVER, LINKAGE - UPPER
-
4427941 LEVER, LINKAGE - LOWERLEVER, LINKAGE - LOWER
-
4527950 ROD, LINK - LOWERROD, LINK - LOWER
-
4627940 SHAFT, VERTICALSHAFT, VERTICAL
-
4732-35899 TUBE, VERTICAL SHAFTTUBE, VERTICAL SHAFT
-
4823-22981 BUSHING, NYLON - VERTICAL SHAFTBUSHING, NYLON - VERTICAL SHAFT
-
4917-25870 ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERSROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
-
5012-29245 WASHER, UPPER AND LOWER SWIVELWASHER, UPPER AND LOWER SWIVEL
-
5111-8267089 NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKETNUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
-
5210-25781 SCREW, SET - LINKAGE LEVERSCREW, SET - LINKAGE LEVER
-
5312-25866 WASHER, VERTICAL SHAFT - CENTERWASHER, VERTICAL SHAFT - CENTER
-
5433-813469 SPARK PLUGSPARK PLUG
-
5585-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
5684-821945A46 CABLE, HIGH TENSION LEAD - SPARK PLUGCABLE, HIGH TENSION LEAD - SPARK PLUG
-
5725-25429 "O" RING, HIGH TENSION HEAD CABLE TO END CAP COVER"O" RING, HIGH TENSION HEAD CABLE TO END CAP COVER
-
5854-29425 CLIP, HIGH TENSION LEAD CABLE FASTENINGCLIP, HIGH TENSION LEAD CABLE FASTENING
-
5954-25231 CLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETOCLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETO
-
6010-20401 SCREW, LEAD CLIP TO MAGNETOSCREW, LEAD CLIP TO MAGNETO
-
618M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
62394-1134A1 GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASEGROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
