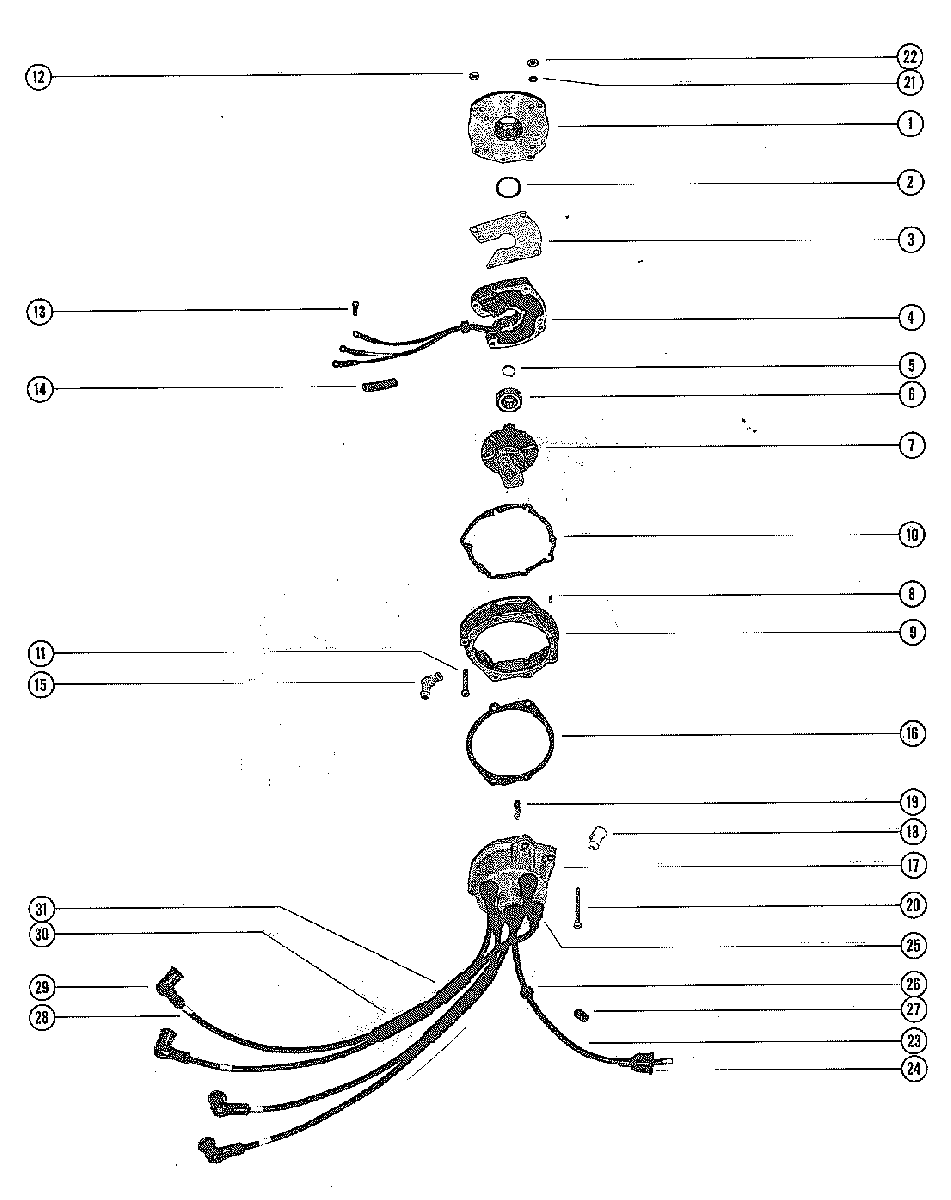

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercury - 500 2097445 THRU 2305100
-
№АртикулНазвание
-
-393-2799A20 DISTRIBUTOR ASSEMBLY, COMPLETEDISTRIBUTOR ASSEMBLY, COMPLETE
-
1393-2799A21 HOUSING, PRIMARYHOUSING, PRIMARY
-
213-26917 WASHER, WAVE - PRIMARY HOUSINGWASHER, WAVE - PRIMARY HOUSING
-
3393-2795 SHIM, TRIGGER HOUSING TO PRIMARY HOUSINGSHIM, TRIGGER HOUSING TO PRIMARY HOUSING
-
4393-2918A6 TRIGGER HOUSING ASSEMBLYTRIGGER HOUSING ASSEMBLY
-
553-45906 RING, RETAINER - ROTOR SHAFT BALL BEARINGRING, RETAINER - ROTOR SHAFT BALL BEARING
-
630-26379 BEARING, BALL - ROTOR SHAFTBEARING, BALL - ROTOR SHAFT
-
7393-2921A5 ROTOR SHAFT ASSEMBLYROTOR SHAFT ASSEMBLY
-
817-20032 DOWEL PIN, ADAPTOR TO PRIMARY HOUSINGDOWEL PIN, ADAPTOR TO PRIMARY HOUSING
-
9393-3014A2 ADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAPADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAP
-
1027-46351 GASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOWGASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOW
-
1027-45910 GASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOWGASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOW
-
1110-32627 SCREW, ADAPTOR TO HOUSINGSCREW, ADAPTOR TO HOUSING
-
1211-46438 NUT, ADAPTOR TO HOUSING SCREWNUT, ADAPTOR TO HOUSING SCREW
-
1310-38055 SCREW, SHIM AND TRIGGER HOUSING TO PRIMARY HOUSINGSCREW, SHIM AND TRIGGER HOUSING TO PRIMARY HOUSING
-
1485-623594 SLEEVE, TRIGGER HOUSING CABLESSLEEVE, TRIGGER HOUSING CABLES
-
1522-31521A1 ELBOW ASSEMBLY, VENT HOSE - ADAPTOR HOUSINGELBOW ASSEMBLY, VENT HOSE - ADAPTOR HOUSING
-
1627-36268 GASKET, DISTRIBUTOR CAP TO ADAPTORGASKET, DISTRIBUTOR CAP TO ADAPTOR
-
17393-2955A2 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
1822-31521 ELBOW, VENT HOSE - DISTRIBUTOR CAPELBOW, VENT HOSE - DISTRIBUTOR CAP
-
19393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2010-60464 SCREW, DISTRIBURTOR CAP TO ADAPTOR TO HOUSING (2")SCREW, DISTRIBURTOR CAP TO ADAPTOR TO HOUSING (2")
-
2112-89302 WASHER, DISTRIBUTOR CAP FASTENING SCREWWASHER, DISTRIBUTOR CAP FASTENING SCREW
-
2211-46438 NUT, DISTRIBUTOR CAP FASTENING SCREWNUT, DISTRIBUTOR CAP FASTENING SCREW
-
23393-3018A1 HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR TO COILHIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR TO COIL
-
--8M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)CONNECTOR, HIGH TENSION CABLE (CAP END)
-
24332-2854T01 BOOT, HIGH TENSION CABLE TO COILBOOT, HIGH TENSION CABLE TO COIL
-
2585-94589 SLEEVE, HIGH TENSION CALBESLEEVE, HIGH TENSION CALBE
-
2625-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
2732-46398 SLEEVE, HIGH TENSION CABLESLEEVE, HIGH TENSION CABLE
-
2884-813715A1 SPARK PLUG LEAD ASSEMBLY (#3)
ORDER 36549A1 FOR REPLACEMENTSPARK PLUG LEAD ASSEMBLY (#3)
ORDER 36549A1 FOR REPLACEMENT -
2884-813715A1 SPARK PLUG LEAD ASSEMBLY (#1, #2 AND #4)
ORDER 36549A1 FOR REPLACEMENTSPARK PLUG LEAD ASSEMBLY (#1, #2 AND #4)
ORDER 36549A1 FOR REPLACEMENT -
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
2585-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTORSLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
-
2985-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
-
3032-46768 SLEEVE (LEADS 1, 2, 3, 4) - 6"SLEEVE (LEADS 1, 2, 3, 4) - 6"
-
3132-46768 SLEEVE, HIGH TENSION LEAD (LEADS 1, 2, 3, 4)SLEEVE, HIGH TENSION LEAD (LEADS 1, 2, 3, 4)
