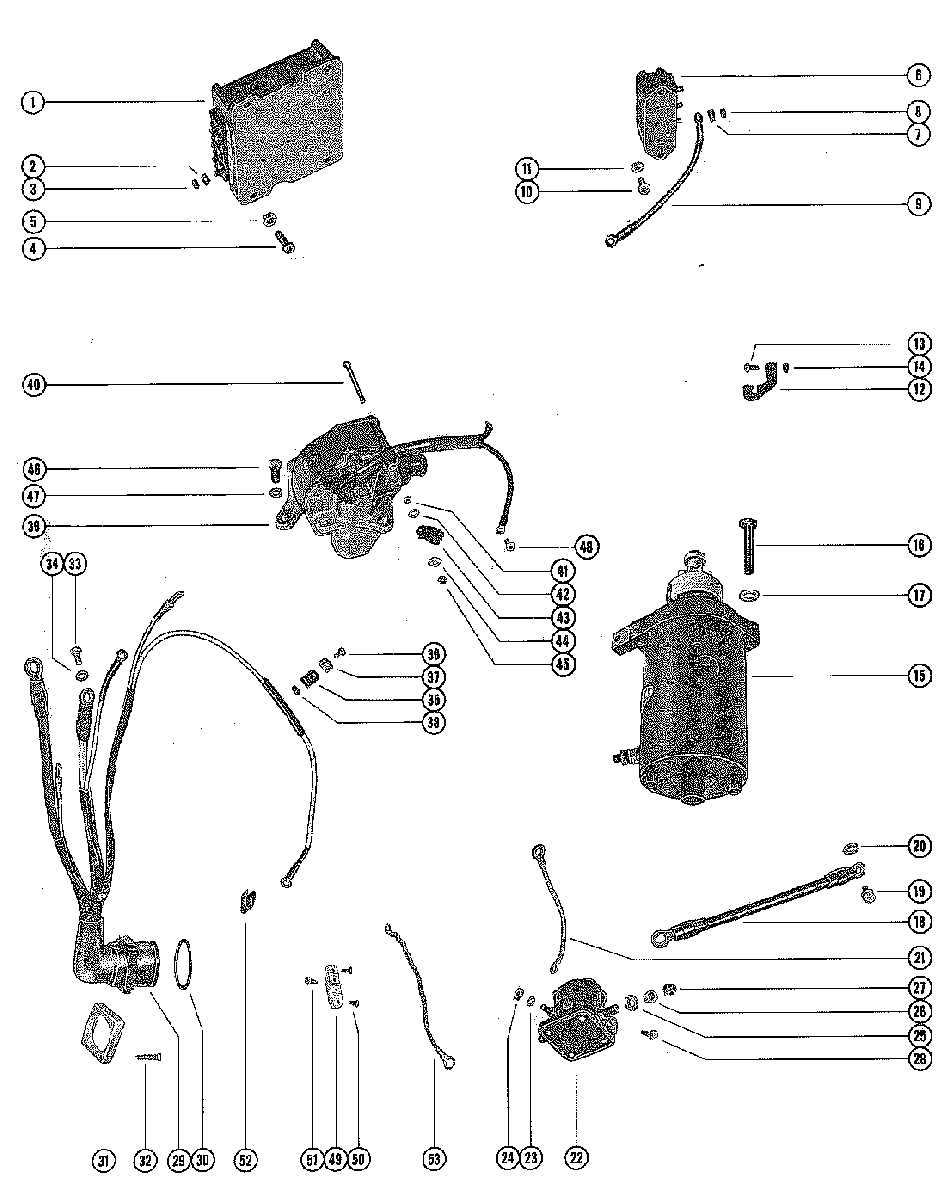

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS для Mercury - 500 2097445 THRU 2305100
-
№АртикулНазвание
-
1332-2986A27 SWITCH BOX ASSEMBLY, COMPLETESWITCH BOX ASSEMBLY, COMPLETE
-
212-45075 WASHER, SWITCH BOX TERMINALWASHER, SWITCH BOX TERMINAL
-
311-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
410-22485 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
-
511-20184 NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREWNUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
-
678614A1 RECTIFIER ASSEMBLY, COMPLETERECTIFIER ASSEMBLY, COMPLETE
-
712-45075 WASHER, RECTIFIER TERMINALWASHER, RECTIFIER TERMINAL
-
811-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
946286 JUMPER WIRE, RECTIFIER TO SWITCH BOX
SERIAL 00000000-02167843JUMPER WIRE, RECTIFIER TO SWITCH BOX
SERIAL 00000000-02167843 -
1010-22485 SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (3/4")SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (3/4")
-
1111-20184 NUT, RECTIFIER TO FRONT SUPPORT BRACKET SCREWNUT, RECTIFIER TO FRONT SUPPORT BRACKET SCREW
-
1259757 BRACKET, RETAINER - HIGH TENSION LEADBRACKET, RETAINER - HIGH TENSION LEAD
-
1310-21722 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRAKCET (5/8")SCREW, RETAINER BRACKET TO FRONT SUPPORT BRAKCET (5/8")
-
1411-20184 NUT, RETAINER BRACKET SCREWNUT, RETAINER BRACKET SCREW
-
1550-55601A2 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1610-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGESCREW, STARTER MOTOR TO CRANKCASE FLANGE
-
1713-26993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
1884-93389A12 WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNTWIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
-
1910-69035 SCREW, GROUND WIRE TO STARTER MOTORSCREW, GROUND WIRE TO STARTER MOTOR
-
2013-26992 LOCKWASHER, GROUND WIRE FASTENING SCREWLOCKWASHER, GROUND WIRE FASTENING SCREW
-
--11-20890 NUT, GROUND WIRE SCREWNUT, GROUND WIRE SCREW
-
2146715 GROUND STRAP ASSEMBLYGROUND STRAP ASSEMBLY
-
2232445A1 STARTER SOLENOIDSTARTER SOLENOID
-
2313-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
2411-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
2513-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
2611-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16")NUT, SOLENOID TERMINAL - INSIDE (5/16")
-
2711-26062 NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16")NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16")
-
2810-29238 SCREW, STARTER SOLENOID TO STARTER MOTORSCREW, STARTER SOLENOID TO STARTER MOTOR
-
2946905 WIRING HARNESS (INTERNAL) -
SERIAL 00000000-02167843WIRING HARNESS (INTERNAL) -
SERIAL 00000000-02167843 -
2946905 WIRING HARNESS (INTERNAL) -
SERIAL 02167844-09999999WIRING HARNESS (INTERNAL) -
SERIAL 02167844-09999999 -
2938072 WIRING HARNESS (INTERNAL) - USE ON STARTER ENGINES ONLYWIRING HARNESS (INTERNAL) - USE ON STARTER ENGINES ONLY
-
3024-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
3126079A2 PLATE, BACKING - WIRING HARNESSPLATE, BACKING - WIRING HARNESS
-
3210-45893 SCREW, BACKING PLATE TO BOTTOM COWLSCREW, BACKING PLATE TO BOTTOM COWL
-
3310-98256 SCREW, WIRING HARNESS LEAD TO BOTTO COWL (1/2")SCREW, WIRING HARNESS LEAD TO BOTTO COWL (1/2")
-
3413-24669 LOCKWASHER, WIRING HARNESS LEAD SCREWLOCKWASHER, WIRING HARNESS LEAD SCREW
-
3554-26550 CLIP, WIRING HARNESS LEADCLIP, WIRING HARNESS LEAD
-
3610-29072 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
-
3718-27789 "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW"D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
-
3811-24656 NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREWNUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
-
39332-4895A6 IGNITION COIL ASSEMBLY, COMPLETEIGNITION COIL ASSEMBLY, COMPLETE
-
4010-46368 SCREW, IGNITION COIL CLAMPING (2 1/4")SCREW, IGNITION COIL CLAMPING (2 1/4")
-
4010-46367 SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2 1/2")SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2 1/2")
-
4111-68219 NUT, IGNITION COIL CLAMPING SCREWNUT, IGNITION COIL CLAMPING SCREW
-
4212-56681 WASHER, IGNITION COIL CLAMPING SCREWWASHER, IGNITION COIL CLAMPING SCREW
-
4354-22740 CLIP, LEAD WIRE TO IGNITION COILCLIP, LEAD WIRE TO IGNITION COIL
-
448M0084613 "D" WASHER, IGNITION COIL CLAMPING SCREW"D" WASHER, IGNITION COIL CLAMPING SCREW
-
4511-8267086 NUT, IGNITION COIL CLAMPING SCREWNUT, IGNITION COIL CLAMPING SCREW
-
4610-36137 SCREW, IGNITION COIL TO BOTTOM COWL (1")SCREW, IGNITION COIL TO BOTTOM COWL (1")
-
4713-26992 LOCKWASHER, IGNITION COIL SCREWLOCKWASHER, IGNITION COIL SCREW
-
4810-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
-
4930212 TERMINAL BLOCK USE ON STARTER ENGINESTERMINAL BLOCK USE ON STARTER ENGINES
-
5010-72169 SCREW, TERMINAL BLOCK ATTACHING USE ON STARTER ENGINESSCREW, TERMINAL BLOCK ATTACHING USE ON STARTER ENGINES
-
5110-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK USE ON START ENGINESCREW, HARNESS LEADS TO TERMINAL BLOCK USE ON START ENGINE
-
5254-22783 "S" CLIP, WIRING HARNESS TO BOTTOM COWL USE ON START ENGINE"S" CLIP, WIRING HARNESS TO BOTTOM COWL USE ON START ENGINE
-
5346715 CABLE, STARTER SOLENOID TO TOP MOUNT USE ON STARTER ENGINESCABLE, STARTER SOLENOID TO TOP MOUNT USE ON STARTER ENGINES
